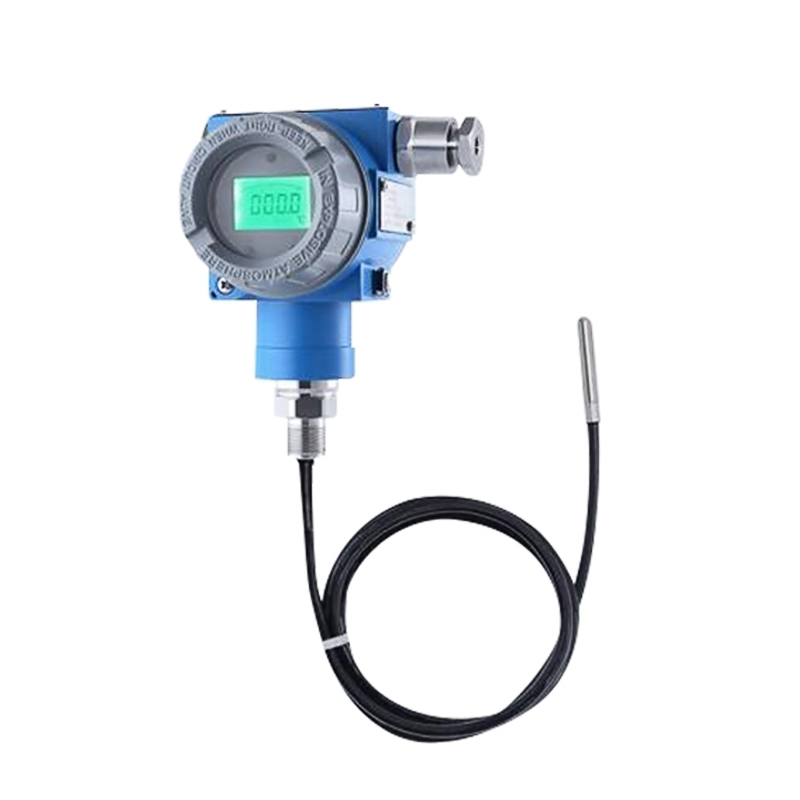

The explosion proof temperature sensor is designed to deliver accurate and reliable temperature measurements in harsh industrial environments, with a temperature range of -50°C to 80°C or -50°C to 260°C. With high accuracy levels of 0.25%FS or 0.5%FS, this sensor provides precise readings. The SUCH sensor also offers flexibility with multiple probe options and two types of cables, ensuring durability with high temperature, corrosion, and wear resistance. An LCD display is included, though without backlighting.
Main Body

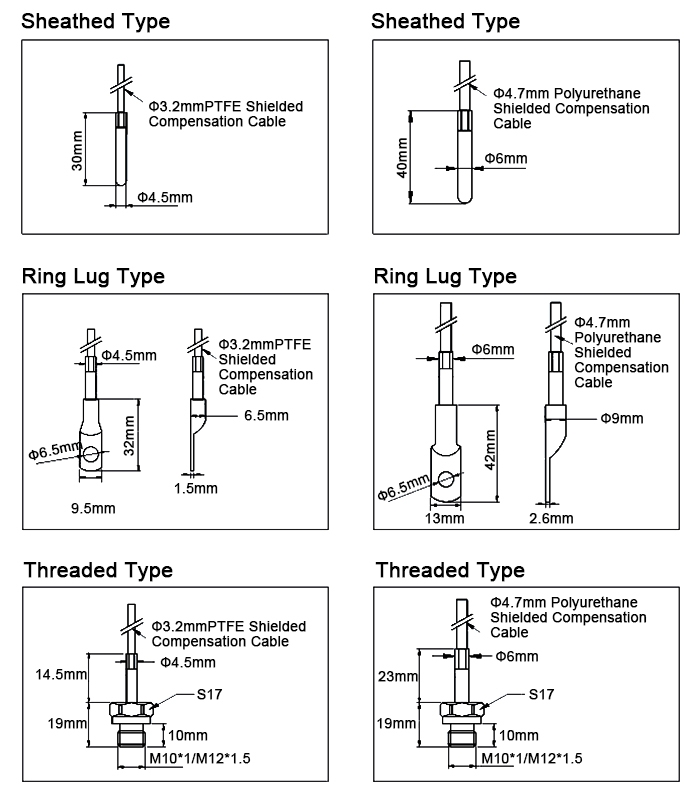

Probe
Explosion Proof Temperature Sensor, -50-80°C/-50-260°C User Manual
An explosion-proof temperature sensor is designed to safely operate in hazardous environments where flammable gases, vapors, or dust are present. It is built with special protective features, such as intrinsic safety ratings, to prevent the sensor from igniting or causing sparks that could trigger an explosion. These sensors are typically used in industries such as oil and gas, chemicals, and pharmaceuticals.
Choosing an explosion-proof temperature sensor is crucial for ensuring safety in environments where explosive gases or combustible dust are present. Using standard temperature sensors in such conditions could lead to serious safety risks, including fire or explosions. Explosion-proof sensors meet stringent safety standards, offering protection against these hazards and ensuring reliable temperature measurement without compromising safety.
The use of a magnetic probe significantly improves the flexibility of sensor installation by allowing for quick, tool-free mounting on metal surfaces. The embedded magnets securely hold the probe in place, making it easy to attach to pipes, tanks, or other metallic structures without the need for drilling or welding. This feature enables fast installation and repositioning, ideal for applications where flexibility and minimal disruption are essential. Additionally, the magnetic probe is stable enough to remain securely attached even in vibrating environments, ensuring reliable temperature measurements without the need for permanent modifications to the equipment. It is particularly useful for temporary or portable setups, providing versatility in various industrial settings.
