Ultrasonic Level Sensor

An ultrasonic level sensor is a device that uses the principle of ultrasonic ranging to non-contact measure the level of liquids, solids, or powders. This sensor emits high-frequency ultrasonic signals and receives the echoes reflected from the surface of the medium, calculating the sound wave propagation time to determine the level or distance. Because its measurement process does not require direct contact with the measured medium, ultrasonic level transmitters can operate stably in various complex or hazardous environments and are widely used in industrial automation, environmental water treatment, petrochemicals, food and pharmaceuticals, agricultural irrigation, and marine monitoring.

How does an Ultrasonic Level Sensor Work?

The core of an ultrasonic level sensor is an ultrasonic transducer. When the transducer emits an ultrasonic pulse towards the surface of the measured medium, the sound wave is reflected upon encountering the liquid or solid surface. After receiving the echo signal, the system calculates the distance based on the round-trip time and speed of sound. By comparing this distance with the height of the container, the current liquid level can be determined.

In different applications, the sensor can output analog signals (e.g., 4-20mA, 0-10V) or digital signals (e.g., RS485/RS232, Modbus, HART) for PLC, DCS, or other monitoring systems to read, enabling remote monitoring and automatic control.

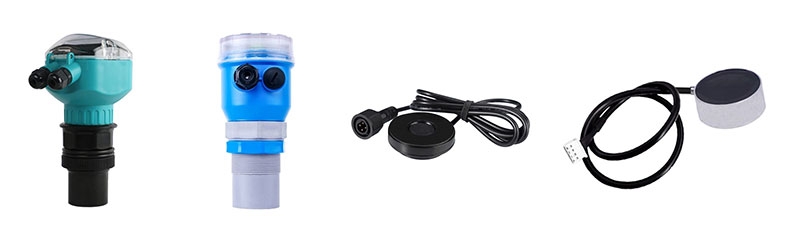

SUCH Ultrasonic Level Sensor Features

• Non-contact Measurement: No contact with the measured medium is required, avoiding corrosion, adhesion, or contamination problems. Suitable for high-temperature, high-pressure, and toxic environments.
• Wide Applicability: Can measure various media such as water, fuel, oil, acid and alkali solutions, slurries, powders, and grains.
• Easy Installation: No drilling required; can be top-mounted, side-mounted, or externally mounted, especially suitable for sealed containers or situations where modification is inconvenient.
• High Precision and Stability: Utilizes digital signal processing technology, with strong anti-interference capabilities and measurement accuracy up to ±0.25%FS.
• Low Maintenance: No mechanical wear parts, long service life, virtually maintenance-free.
• Multiple Signal Outputs: Supports multiple output interfaces for easy integration into automated control systems.
• Strong Environmental Adaptability: Protection rating up to IP68, suitable for long-term operation outdoors or in humid and dusty environments.

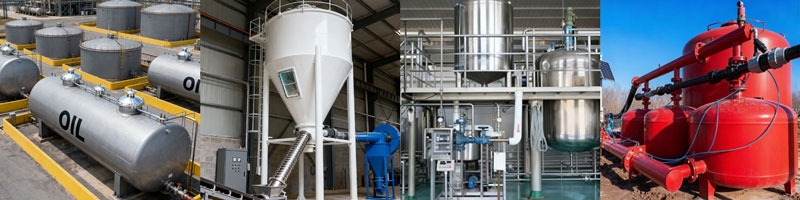

Application Areas

• Water Treatment and Environmental Engineering: Used for level monitoring and automatic water replenishment/drainage control in water tanks, reservoirs, and wastewater treatment systems.
• Petrochemical Industry: Measures the liquid level in oil storage tanks, reactors, and acid/alkali solution tanks to prevent overflow or empty tanks.
• Grain and Feed Storage: Monitors the level of grains, feed, and powders in silos to prevent blockages or empty silos.
• Food and Pharmaceutical Industry: Used for measuring sanitary liquid tanks to ensure production safety and accuracy.
• Agriculture and Water Conservancy: Monitors irrigation water levels, canal depths, or reservoir levels to achieve intelligent water resource management.
• Transportation: Detects liquid levels in tank trucks and ship oil tanks to achieve fuel management and leak warnings.
• Industrial Automation Systems: Works with PLCs or industrial control systems to achieve continuous liquid level monitoring and alarm control.

How to Install and What to Note during Use?

1. Ensure the installation position is perpendicular to the liquid surface being measured, avoiding obstructions that could affect sound wave propagation.
2. Keep the emitting surface clean, avoiding dust, scale, or oil contamination that could affect measurement accuracy.
3. For high-temperature, high-pressure, or highly corrosive environments, select a dedicated protective model.
4. If the container contains stirring, steam, or foam, use an intelligent sensor with temperature compensation and signal filtering functions.
5. Before use, parameters should be set and calibrated according to the installation height, medium characteristics, and signal output requirements.

Ultrasonic level sensors, with their advantages of safety, reliability, ease of installation, and low maintenance, have become essential equipment for modern industrial liquid level monitoring. Whether in urban water supply systems, chemical storage tanks, sewage treatment plants, ship oil tanks, farmland irrigation, or automated production lines, they provide accurate and stable liquid level data, enabling intelligent monitoring and management.
