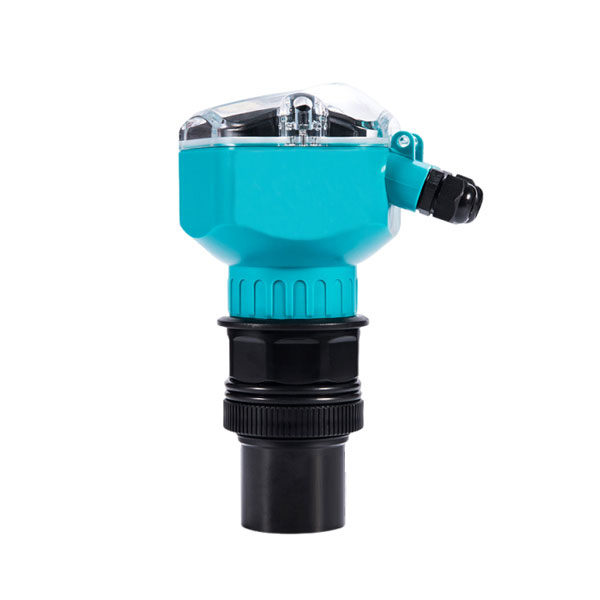

    Non Contact Ultrasonic Level Sensor for liquid/Solid, 0-60M

    0 review(s) | Add your review
    SKU: SUCH-ULS-DP
    $423.28
    ● Non-contact measurement of water, fuel, oil, metal, and powder ● Measuring range of 0-5m, 0-10m, 0-15m, 0-20m to 0-60m ● Output signal 4–20mA, RS485, RS232 ● Power supply DC 24V / AC 220V 50Hz
    *
    *
    *
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    SUCH ultrasonic level sensor enables non-contact measurement of various media, including liquids (water, fuel, oil), solids (metal, non-metal), and powders (chemical materials). It offers measuring ranges of 0-5m, 0-10m, 0-15m, 0-20m, and up to 0-60m. Equipped with an LCD display and an ultrasonic probe, this ultrasonic level transmitter ensures reliable performance for a wide range of industrial and outdoor applications.

    Feature

    • Streamlined Transparent Top Cover: The non contact ultrasonic level sensor features a side-thickened top cover design that leverages light refraction to reduce sunlight exposure. (Note: a sunshade is still recommended on the sun-facing side during installation.)
    • Comprehensive Protection Design: The slanted electrical interface prevents vapor and dust ingress, protecting internal components and achieving true IP65 protection.
    • Fully Enclosed Cast Probe: The integrated probe ensures IP68 protection, preventing moisture ingress and guaranteeing long-term sensor reliability.
    • Custom PTFE Probe Option: The ultrasonic level transmitter can be equipped with a PTFE probe, offering excellent corrosion resistance, self-lubrication, and non-stick properties—ideal for corrosive or condensation-prone environments.

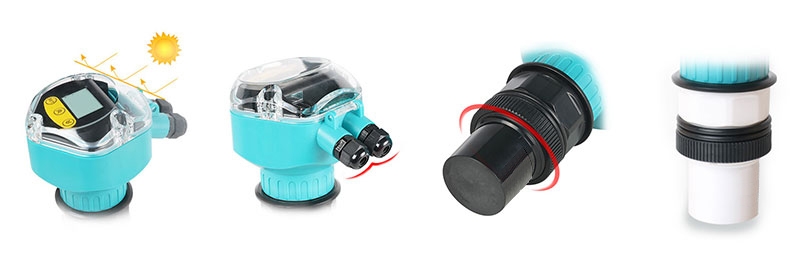

    Non contact ultrasonic level sensor details

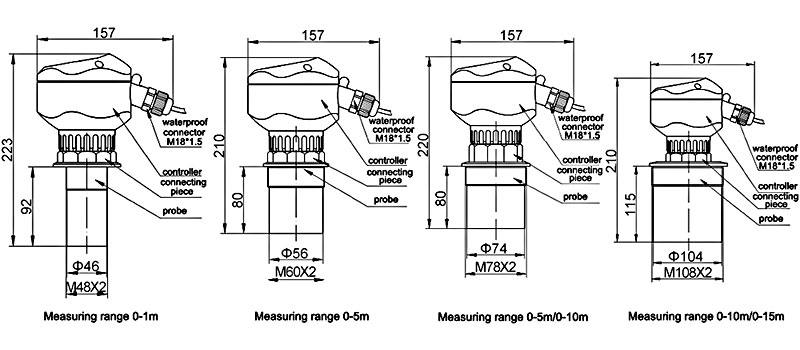

    Dimension (Unit: mm)

    Non contact ultrasonic level sensor dimension

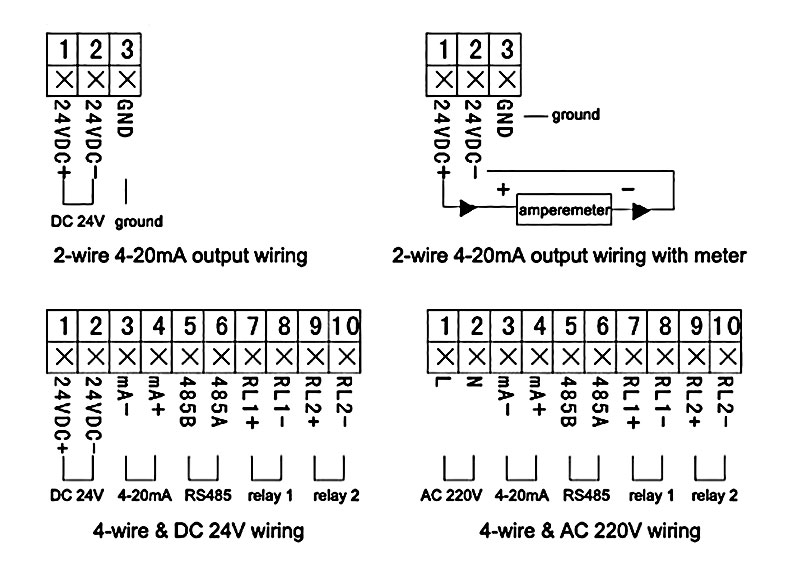

    Wiring Diagram

    Non contact ultrasonic level sensor wiring

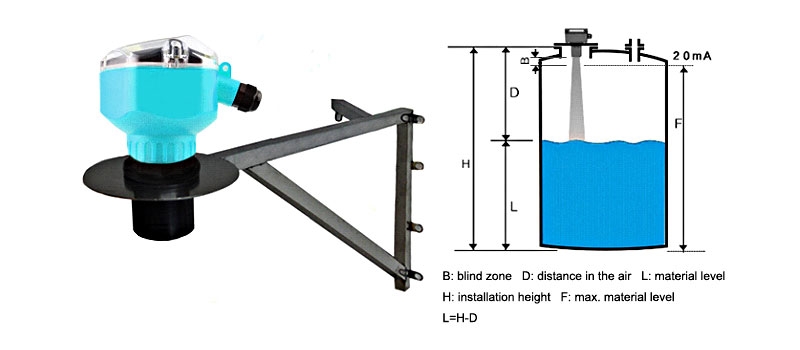

    Installation Diagram

    Non contact ultrasonic level sensor installation diagram

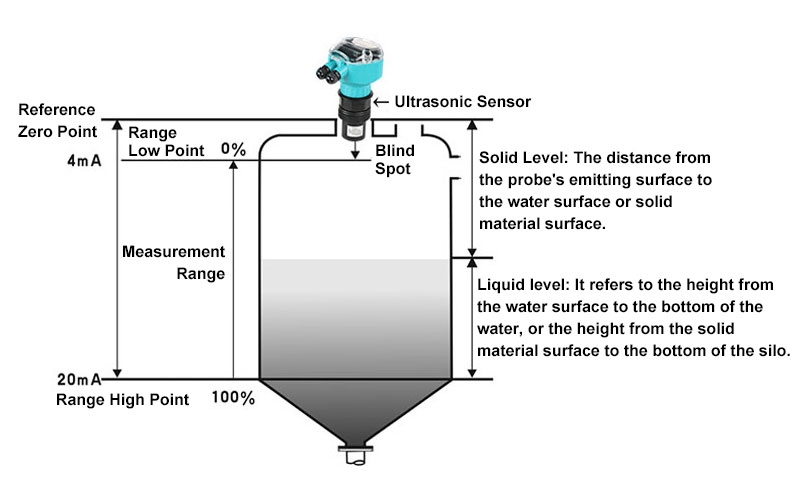

    Measurement Instruction

    Non contact ultrasonic level sensor measurement instruction

    Specs
    Measuring range * 0-5m, 0-10m, 0-15m, 0-20m, 0-30m, 0-40m, 0-50m, 0-60m
    Accuracy 0.5%FS
    Resolution 3mm, or 0.1% (choose the higher value)
    Display LCD display
    Output signal * 2-wire 4-20mA, 4-wire 4-20mA, RS485/232
    Additional relay output * 2 relays AC 250V/8A, 2 relays DC 30V/5A
    Power supply * DC 24V, AC 220V±15% / 50Hz
    Load 2-wire 4-20mA/250Ω, 4-wire 4-20mA/750Ω
    Response time 500ms
    Communication protocol Our own protocol
    Medium Water, fuel, oil, metal, or other liquid/solid/powder
    Environment temperature LCD display: -20~+60℃ (-4~+140℉), ultrasonic probe: -20~+80℃ (-4~+176℉)
    Working pressure 14.7 psi
    Protection class LCD display: IP65, ultrasonic probe: IP68
    Electrical connection 2 waterproof connector M18*1.5mm
    Installation* Nut with thread M48*2mm, M60*2mm, M78*2mm or M108*2mm (according to the measuring range and ultrasonic probe)
    Probe type * General probe, probe with PTFE shell, probe with small measuring blind zone
    Algorithm a. Algorithm of variable frequency
    Three adjustable emission frequency (low, medium and high) can meet the level measurements of different situations, such as sewage liquid level, acid and alkali liquid level, material level, etc. It can reduce the interference caused by the bubbles when mixing.
    b. Filtering algorithm (remove false echoes)
    The liquid level intelligent algorithm design effectively eliminates false echoes in actual measurement, improves signal-to-noise ratio, and guarantees actual liquid level measuring accuracy.
    Function Real-time monitoring and display 4 parameters: level (m), distance (m), current (mA) and temperature (℃).
    Warranty 12 months
    Shipping weight 2.5kg

    Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

    Application

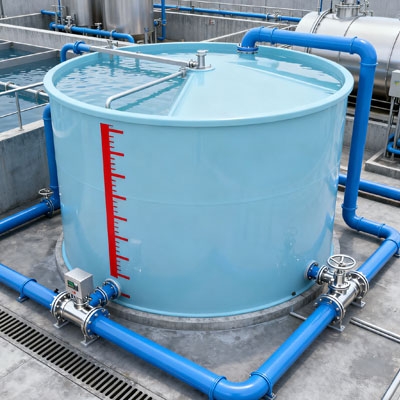

    Non contact ultrasonic level sensor for water treatment plant

    Water Treatment Plant

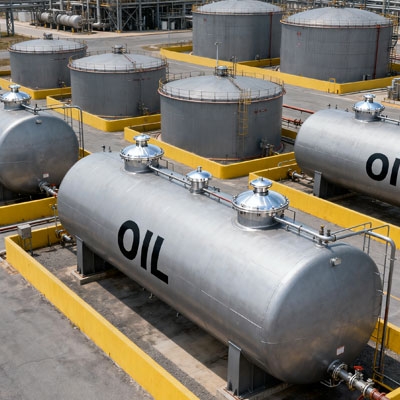

    Non contact ultrasonic level sensor for oil refinery storage area

    Oil Refinery Storage Area

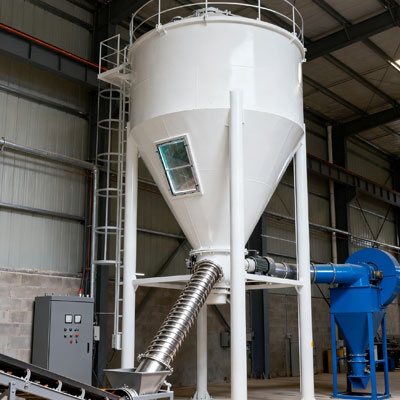

    Non contact ultrasonic level sensor for powder silo workshop

    Powder Silo Workshop

    FAQ
    ❯

    A non-contact ultrasonic level sensor measures the liquid level by utilizing the time difference between the emission and echo of ultrasonic waves. The sensor does not require direct contact with the medium and is suitable for measuring the level of liquids, slurries, or solid particles.

    ❯

    The ultrasonic level sensor emits ultrasonic pulses towards the target surface. The sound waves are reflected back from the liquid or material surface. The sensor calculates the round-trip time of the sound wave and, combined with the speed of sound, obtains the height of the medium, thus calculating the liquid level or distance.

    ❯

    Yes, ultrasonic level sensors can be used in corrosive liquids, strong acids, or strong alkalis because they are non-contact devices and do not directly contact the liquid. However, the sensor's housing and protective materials (e.g., PTFE, PVDF, or stainless steel) must be corrosion-resistant to ensure long-term durability and measurement accuracy.
