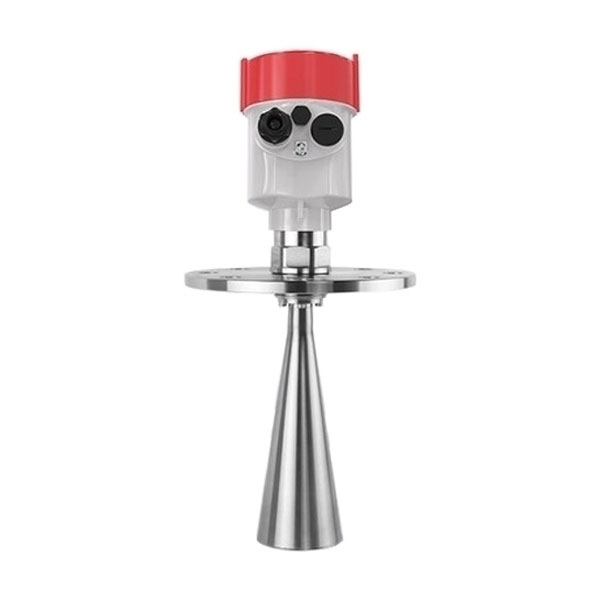

    26 GHz Radar Level Sensor for Liquid, 4-20mA/RS485, 0-30M

    1 review(s) | Add your review
    SKU: SUCH-RLS-RD902
    $1,452.09
    ● Measuring range 0-30m, 26 GHz microwave frequency ● Output signals 4-20mA, RS485, or 4–20 mA + HART ● Power supply DC 12-24 V or AC 220 V ● G1-1/2" thread or flange installation method ● Suitable for highly corrosive liquids
    *
    *
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Non contact radar level sensor for accurate measurement of various liquids, including slightly to highly corrosive media. Measuring range 0-30 m with 26 GHz microwave frequency. Features include a protection head with LCD display, this radar type level transmitter is suitable for outdoor or humid industrial environments.

    Feature

    • 10° narrow beam design: The radar level sensor concentrates energy within a narrow beam, delivering powerful medium penetration and improved echo stability.
    • Wide application range: Features a waterproof, dustproof, and corrosion-resistant design for reliable use in harsh industrial environments.
    • 304 stainless steel housing: Durable, wear-resistant, and shockproof construction ensures long-term stability and extended service life.

    Detail

    Radar level sensor details

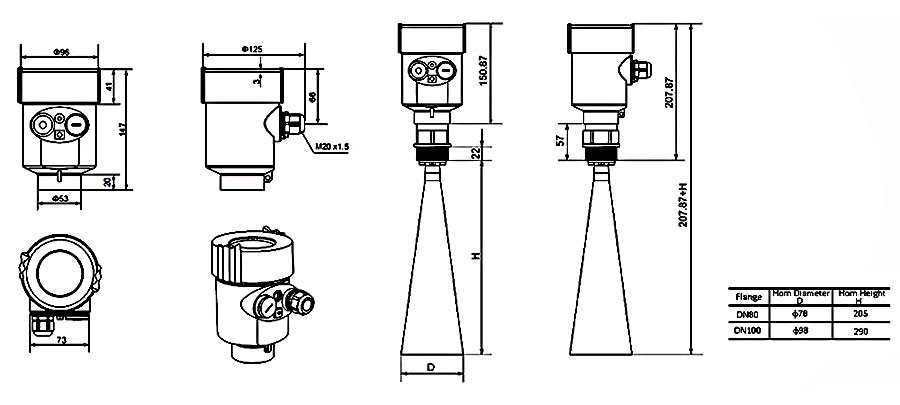

    Dimension (Unit: mm)

    26 GHz radar level sensor for liquid dimension

    Wiring

    Radar level sensor wiring

    Installation

    Radar level sensor installation

    Specs
    Measuring Range 0-30m
    Accuracy ±5mm (Range 5m), ±10mm (Range 20m), ±15mm (Range 30m)
    Resolution 1mm
    Display LCD Display
    Measured Interval 1s (according to parameter setting)
    Adjustment Time 1s (according to parameter setting)
    Microwave Frequency 26GHz
    Output Signal* 4-20mA, Modbus RTU (RS485 Port), 4-20mA+HART
    Power Supply* DC 12-24V, AC 220V/50Hz
    Material Shell: Aluminum, Process Connection: 304 Stainless Steel, Horn: 304/ 316L Stainless Steel/ Tetrafluoroethylene
    Horn Antenna Size* Φ78mm/ Φ98mm
    Pressure -0.1 ~ 0.4MPa
    Shock Resistance 10m/s2, (10~150)Hz
    Communication Protocol Modbus
    Medium Temperature Resistant, Pressure Resistant, Slightly Corrosive Liquids
    Storage Temperature -40~+100℃
    Process connection (antenna) temperature -40~+150℃
    Medium Temperature -40~+250℃
    Protection Class IP67
    Electrical Connection 2 waterproof connectors M20*1.5mm, or 2 waterproof connectors 1/2" NPT
    Installation* G1-1/2"A thread, Flange
    Warranty 12 Months
    Shipping Weight 6.5kg

    Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

    Application
    Radar level sensor for municipal wastewater

    Municipal Wastewater

    Radar level sensor for level tank

    Level Tank

    Radar level sensor for water storage tank

    Water Storage Tank

    FAQ
    ❯

    A radar level sensor is a high-precision transmitter that uses microwave radar principles to measure liquid level. It calculates the liquid level by emitting electromagnetic wave signals to the liquid surface and receiving the reflected signals. This enables non-contact, continuous, and accurate liquid level monitoring, and is widely used in industries such as chemical, water treatment, food, and energy.

    ❯

    A radar level sensor measures distance by emitting high-frequency electromagnetic wave signals to the liquid surface and receiving the reflected signals. The system calculates the liquid level height based on the echo time, thus achieving accurate measurement.

    ❯

    A radar level sensor is non-contact, transmitting microwave signals through the air; guided wave radar level sensor transmits electromagnetic waves through a probe or cable. The former is suitable for high-temperature and high-pressure environments, while the latter is more suitable for viscous or stirred liquids.
