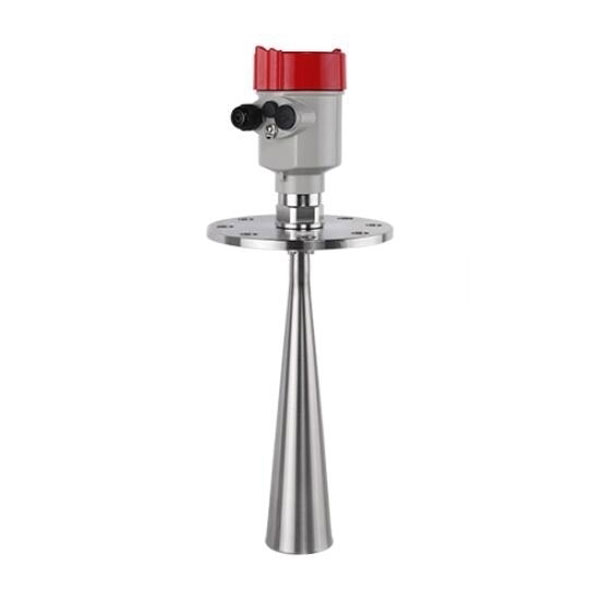

Non Contact Radar Type Level Sensor for Solid/Powder, 4-20mA/RS485, 0-40M

SKU: SUCH-RLS-RD903

$1,891.59

● Measuring range for powders 0-35m, granules 0-40m, chunks 0-40m ● Output options 4-20mA, RS485, 4-20mA+HART ● Power supply DC 12–24V or AC 220V ● Flange installation DN80, DN100, DN125 ● Waterproof and dustproof design suitable for harsh environments

Output Signal *
Power Supply *
Flange Diameter *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Radar type level sensor is a non-contact solid measurement device with options for measuring powders, granules, and chunks up to 40m, using DN80/DN100/DN125 flange installation. It supports 4-20mA, RS485, or 4-20mA+HART outputs and operates on DC 12-24V or AC 220V. With IP67 protection, the radar level transmitter ensures reliable performance in harsh, dusty, or wet environments.

Feature

10° narrow beam design: The radar level sensor concentrates energy within a narrow beam, delivering powerful medium penetration and improved echo stability.
Wide application range: Features a waterproof, dustproof, and corrosion-resistant design for reliable use in harsh industrial environments.
304 stainless steel housing: Durable, wear-resistant, and shockproof construction ensures long-term stability and extended service life.

Detail

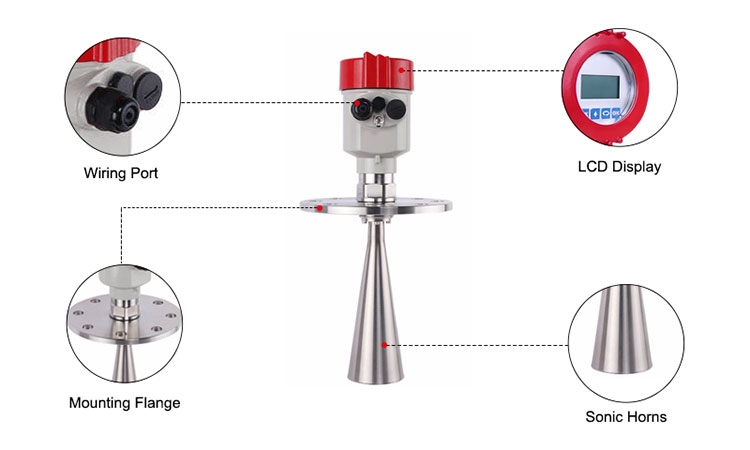

Non contact radar type level sensor for solid details

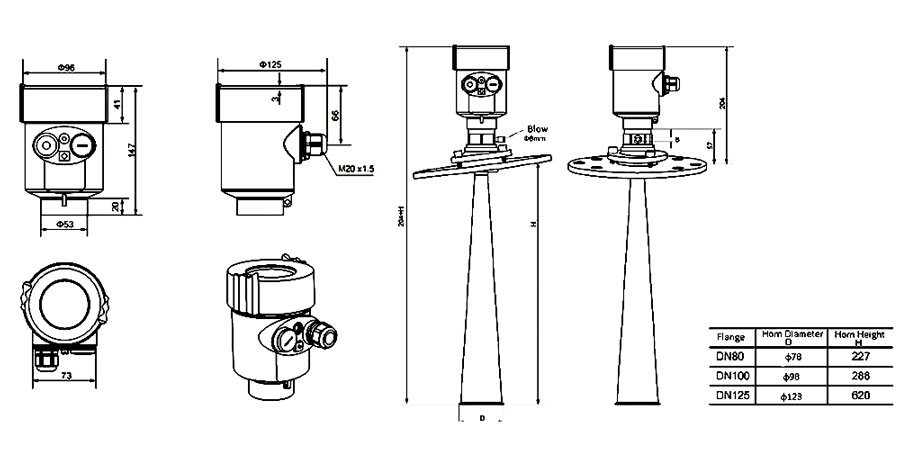

Dimension (Unit: mm)

Non contact radar type level sensor for solid dimension

Wiring

Radar level sensor wiring

Installation

Radar level sensor installation

Specs

Measuring Range	Powder 0-10m, Granules 0-12m, Chunks: 0-15m	Powder 0-20m, Granules 0-25m, Chunks: 0-25m	Powder 0-35m, Granules 0-40m, Chunks: 0-40m
Accuracy	±10mm
Resolution	1mm
Display	LCD Display
Measured Interval	1s (according to parameter setting)
Adjustment Time	1s (according to parameter setting)
Microwave Frequency	26GHz
Output Signal*	4-20mA, Modbus RTU (RS485 Port), 4-20mA+HART
Power Supply*	DC 12-24V, AC 220V/50Hz
Material	Shell: Aluminum, Process Connection: 304 Stainless Steel, Horn: 304 Stainless Steel
Horn Antenna Size*	Φ78mm	Φ98mm	Φ123mm
Pressure	-0.1 ~ 2.0MPa
Shock Resistance	10m/s², (10~150)Hz
Communication Protocol	Modbus
Storage Temperature	-40~+100℃
Process connection (antenna) temperature	-40~+150℃
Medium Temperature*	-40~+130℃, -40~+230℃
Protection Class	IP67
Electrical Connection	2 waterproof connectors M20*1.5mm, or 2 waterproof connectors 1/2" NPT
Installation*	DN80 Flange	DN100 Flange	DN125 Flange
Warranty	12 Months
Shipping Weight	7.5kg

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Application

Strong Powder and Dust

Solid Materials

Crystallization Condensation

FAQ

Q1: Can radar level sensors measure solid powders? ❯

Yes, but a solid-specific model with a horn antenna or lens antenna structure should be selected. When the solid surface is uneven, the instrument will automatically identify the main reflecting surface.

Q2: Why does the radar level signal jump? ❯

This may be caused by interference echoes or violent fluctuations in the liquid level. Adjusting the echo recognition parameters or enabling the echo suppression function can improve this.

Q3: What if the distance value and liquid level value on the radar level sensor display are not synchronized? ❯

Check if the "zero point" and "full scale" parameter settings are correct. Also, confirm that the input installation height matches the actual height.
