Displacement Sensor

View as Grid List

Sort by

Display per page

Draw Wire Displacement Sensor, 1000~50000mm

SUCH-DPLS-50000

● Measuring range 1000~50000mm ● Power supply DC 24V ● Lead wire: 3-wire/2-wire ● Protection class: IP65

$437.68

Picture of Eddy Current Displacement Sensor, Φ 6-60mm Probe

Eddy Current Displacement Sensor, Φ 6-60mm Probe

SUCH-DPLS-DIS60

● 1-50mm measuring range ● Φ 6-60mm probe ● DC 12V/24V/+15V~±18V power supply ● 0-5V/0-10V/4-20mA/RS485 output signal

$579.99

Linear Displacement Sensor, Rod Type, 50mm/75mm to 1250mm

SUCH-DPLS-KTC

● Measuring range 50~1250mm ● Repeated accuracy 0.01mm ● Maximum operating speed 10m/s ● Output signal DC 0-5V/0-10V/4-20mA

$92.65

Picture of High Precision Displacement Sensor, Articulated Type

High Precision Displacement Sensor, Articulated Type

SUCH-DPLS-KPC1

● Measuring range 75~750mm ● Repeatability 0.01mm ● Maximum operating speed 10m/s ● Number of runs ＞100x10⁶ times

$147.54

Picture of Miniature Linear Displacement Sensor, 10~300mm

Miniature Linear Displacement Sensor, 10~300mm

SUCH-DPLS-KTM

● Measuring range 10~300mm ● Repeatability accuracy 0.01mm ● Maximum allowable operating voltage 24VDC ● Maximum operating speed 10m/s

$93.64

Picture of Micro Resistive Displacement Sensor, Slider Type, 5~120mm

Micro Resistive Displacement Sensor, Slider Type, 5~120mm

SUCH-DPLS-KSF

● Measuring range 5~120mm ● Linearity (±%FS) ±0.1% ● Repeatability 0.01mm ● Normal brush current ≤10μA

$134.68

Picture of Micro Rebound Displacement Sensor, 5~100mm

Micro Rebound Displacement Sensor, 5~100mm

SUCH-DPLS-KSC

● Measuring range 5~100mm ● Repeatability 0.01mm ● Normal brush current ≤10μA ● Operating temperature range -60~150℃

$140.46

Picture of Potentiometric Linear Displacement Sensor, 12.5mm/25mm/100mm

Potentiometric Linear Displacement Sensor, 12.5mm/25mm/100mm

SUCH-DPLS-KSD

● Measuring range 12.5~100 mm ● Repeatability 0.01 mm ● Maximum operating speed 5 m/s ● Operating temperature range -60℃~+150℃

$116.39

Eddy Current Type Displacement Sensor for Metal Position

SUCH-DPLS-ML33YD

● Measurement ranges 10mm/20mm/25mm/40mm/50mm ● Frequency response: 100 Hz ● Power supply voltage: +12 VDC ● Output signal 4–20mA/1–5V/1–10V/RS485

$598.69

Picture of Magnetostrictive Displacement Sensor, 100~1500mm, 4-20mA/0-5V

Magnetostrictive Displacement Sensor, 100~1500mm, 4-20mA/0-5V

SUCH-DPLS-RHM

● Measurement range 100~1500 mm ● Output signal 0–5V/0–10V/4–20mA/Start–Stop ● Input voltage 24VDC (-15~+20%) ● Operating temperature -40~+85℃

$324.62

Explosion Proof Magnetostrictive Displacement Sensor, 100~1500mm

SUCH-DPLS-CHMFB

● Measurement range 100~1500mm ● Output: 0-5V/0-10V/4-20mA/Star-stop ● Resolution: 16-bit DA, maximum 0.5µm ● Operating temperature -40~85℃

$806.73

Picture of Magnetostrictive Linear Displacement Transducer, Flange Mounted

Magnetostrictive Linear Displacement Transducer, Flange Mounted

SUCH-DPLS-GBFF

● Measurement range 100~1500mm ● Output: 0-5V/0-10/4-20mA/Star-stop ● Resolution 16-bit DA, maximum 1µm ● Input voltage 24VDC (-15~+20%)

$704.83

Picture of Non Contact Magnetostrictive Displacement Sensor, 0~1000mm

Non Contact Magnetostrictive Displacement Sensor, 0~1000mm

SUCH-DPLS-RS

● Measurement range 0~1000mm ● Output signal 4-20mA/0-5V/0-10V/RS485 ● Power supply voltage 24VDC (-15%~+20%) ● Resolution 16-bit D/A (minimum 0.5um)

$818.62

Picture of Magnetostrictive Displacement Transducer, Analog/RS485

Magnetostrictive Displacement Transducer, Analog/RS485

SUCH-DPLS-MH

● Measurement range: 0~1000 mm ● Output signal: 4–20mA/0–5V/0–10V/RS485 ● Power supply voltage 24VDC (-15%~+20%) ● Resolution: 16-bit D/A (minimum 0.5 um)

$683.59

A displacement sensor is a device used to measure the position or change in position of an object. It converts mechanical displacement into an electrical signal, which can be easily processed and analyzed by control systems. With high accuracy, fast response, and good stability, displacement sensors are essential components in modern measurement and automation systems.

Types of Displacement Sensors

Based on different operating principles, displacement sensors can be classified into resistive, inductive, capacitive, optical, laser, and magnetostrictive types. Each type has its own advantages in terms of measurement range, resolution, and environmental adaptability, making them suitable for various industrial and technical applications.

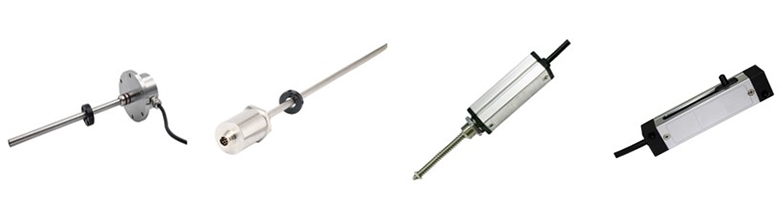

Displacement transducer type

Applications

Displacement sensors are commonly used in industrial automation, hydraulic systems, robotics, construction machinery, energy, port equipment, and precision manufacturing.

Industrial Automation – for position detection and motion control in production lines.
CNC Machines – to ensure machining accuracy and precise positioning.
Robotics – for movement feedback and joint position control.
Automotive Systems – for monitoring position, wear, and mechanical movement.
Precision Measurement – for inspection, quality control, and research applications.
