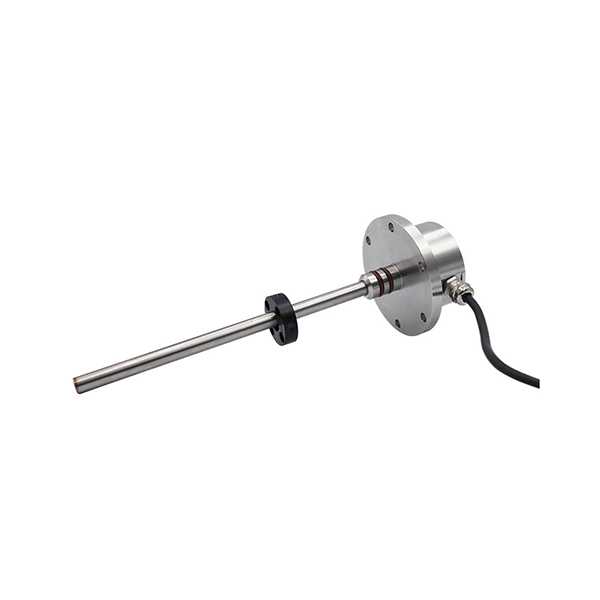

Magnetostrictive Linear Displacement Transducer, Flange Mounted

Name: Magnetostrictive Linear Displacement Transducer, Flange Mounted
Brand: Such.com
SKU: SUCH-DPLS-GBFF
Price: 704.83 USD
Availability: InStock
Rating: 5.0 (1 reviews)

1 review(s) | Add your review

SKU: SUCH-DPLS-GBFF

$704.83

● Measurement range 100~1500mm ● Output: 0-5V/0-10/4-20mA/Star-stop ● Resolution 16-bit DA, maximum 1µm ● Input voltage 24VDC (-15~+20%)

Measuring Range *
Output Signal *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

SUCH magnetostrictive displacement sensor adopts the magnetostrictive measurement principle, features a flange-mounted structure, and incorporates a built-in 16-bit D/A converter. It accurately converts the absolute position signal of the vernier magnetic ring into a standard 4–20mA current signal or 0–10V/0–5V voltage signal. The output is linearly related to the effective measurement range, with a maximum resolution of 1 µm and a measurement range of 100~1500 mm. The power supply voltage is 24 VDC (-15% to +20%), and the output signal can be directly connected to a PLC or other industrial control instruments. It is suitable for hydraulic, automation, and industrial position measurement applications.

Feature

Compact design: Small electronics head, ideal for applications with limited installation space.
Rugged and durable: Fully sealed construction for reliable operation in harsh industrial environments.
Linear measurement: Absolute position output, no homing or re-zeroing required.
Easy to use: Standard signal output, maintenance-free operation.
Wear-free operation: Continuous non-contact measurement ensures long service life.
High resolution: Resolution up to 1 µm for high-precision measurement.
Flange mounting: Quick and secure installation with excellent sealing performance.

Dimension (Unit: mm)

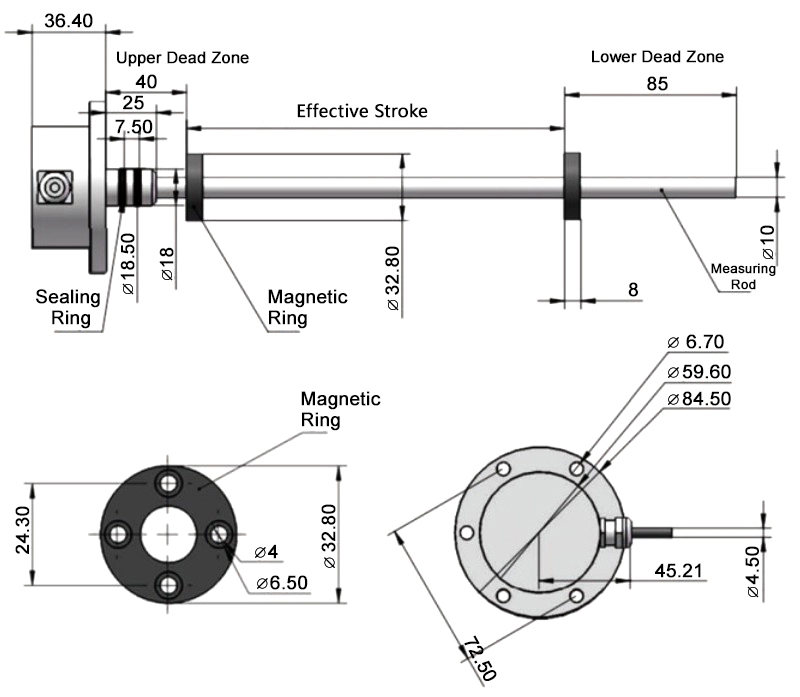

Magnetostrictive linear displacement transducer dimensions

Wiring

Output Type	Wire Color	Function Definition
Analog: 0-5V/0-10V/4-20mA	Brown	DC 24V
	White	0V
	/	Not connected
	/	Not connected
	Green	Signal +
	Yellow	Signal -
Pulse Start-Stop signal	Red	DC 24V
	Black	0V
	Green	Start+
	White	Stop+
	Orange	Start-
	Brown	Stop-

Specs

Measurement Range	100~1500mm
Output	0-5V/0-10/4-20mA/Star-stop
Resolution	16-bit DA, maximum 1µm
Nonlinearity	<0.02% of full scale (minimum 100µm)
Repeatability	<0.002% of full scale or the same as resolution
Update Time	0.5ms (Range ≤ 1200mm); 1.0ms (Range ≤ 2400mm)
Magnetic Ring Speed	Any
Operating Temperature	-40~85℃
Humidity/Dew Point	Humidity 90%, non-condensing
Temperature Coefficient	<30ppm/℃
Electronic Compartment Material	304 stainless steel
Probe Material	304 stainless steel
Protection Rating	IP67
Outer Tube Pressure	35MPa (continuous); 60MPa (peak)
Electronic Compartment Pressure Resistance	35MPa (continuous); 60MPa (peak)
Thread Type	Metric M18×1.5, M20×1.5; Unified 3/4"-16 UNF-3A
Installation Method	Flange installation
Cable Type	Direct cable (Standard length 2m)
Input Voltage	24VDC (-15~+20%)
Polarity Protection	Max -30VDC
Overvoltage Protection	Max 36VDC
Operating Current	<70mA (varies depending on range)

Application

Hydraulic System

Industrial Automation

Hydraulic Cylinder

FAQ

Q1: What are the advantages of flange mounting? ❯

Flange mounting provides a robust structure, convenient installation and positioning, and excellent sealing performance, making it suitable for industrial applications requiring high installation strength and protection, such as hydraulic cylinders and automated equipment.

Q2: Does the magnetostrictive displacement sensor suffer from mechanical wear? ❯

No. The measurement process uses a non-contact operation; there is no mechanical contact between the probe and the magnetic ring, thus eliminating wear and ensuring a long service life.

Q3: What are the typical applications of magnetostrictive displacement sensors? ❯

They are widely used in hydraulic cylinder position measurement, automation equipment, injection molding machines, machine tools, industrial process control, and other linear displacement measurement applications.

1 review(s)

Write your own review Close

Review title: *

Review text: *

Rating:

1 2 3 4 5

From: Nathaniel Briggs | Date: 9/14/2026 8:56 AM

Good magnetostrictive linear displacement transducer

Put this on an automated positioning setup for position feedback. Getting the flange and magnetic ring lined up took a little fiddling, but it wasn’t too bad. Once everything was in place, the readings looked good during machine movement. I’ve been running it for a while now and haven’t really had to mess with it.
