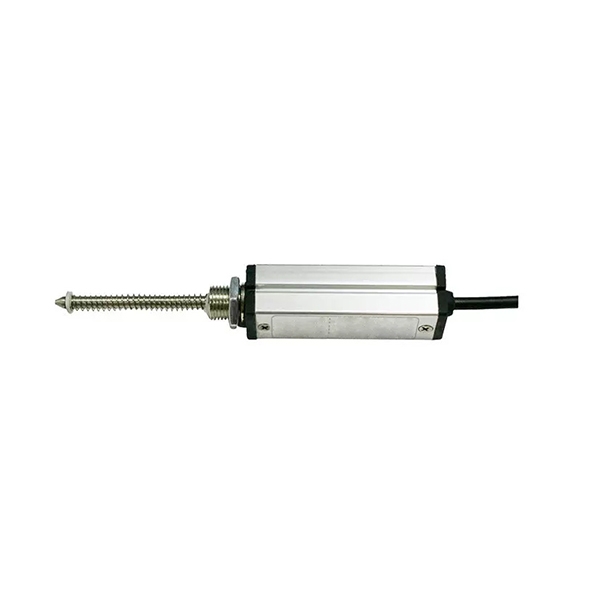

Micro Rebound Displacement Sensor, 5~100mm

Micro rebound displacement sensor is suitable for direct, absolute measurement of displacement and length in measurement and control systems. Its compact design makes it particularly suitable for installation environments with limited space. SUCH micro displacement sensor has a measurement range of 5~100 mm, an operating temperature range of -60℃~150℃, a repeatability of 0.01 mm, and a rated brush current ≤10μA. It exhibits excellent stability and reliability and is widely used in servo control valve position detection and control, medical equipment, leather machinery, mold closing control, IT equipment, paper machinery, textile machinery, ship steering systems, and other displacement detection applications.

Feature

• Lightweight and Compact Structure: The measuring rod features a double-support design for stable operation.
• Wear-Resistant High-Speed ​​Operation: The sensor surface undergoes special treatment to achieve low wear and long-term stable operation under high-speed conditions.
• High-Precision Contact Design: The front end uses a steel ball contact with a spring self-resetting structure, suitable for precision detection and control of small parts that cannot be rigidly connected, ensuring measurement reliability.
• Easy Installation and Maintenance: The rational structural design facilitates installation, disassembly, and maintenance.
• Excellent performance: long service life, good linearity, high resolution, supports high operating speed, and made of high-quality materials.

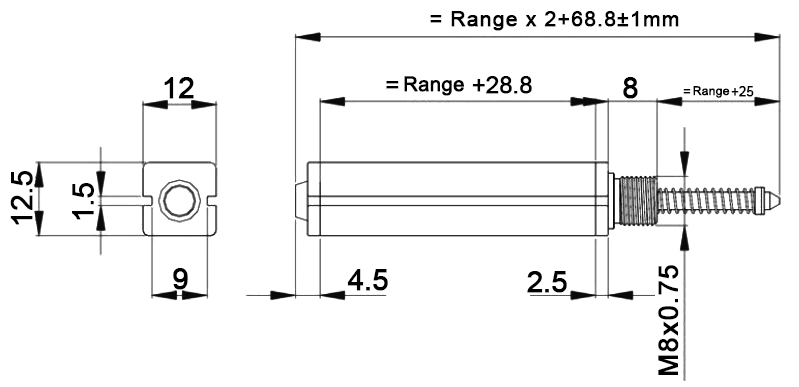

Dimension (Unit: mm)

Electrical installation

Note: Never connect terminals 2 to the positive or negative terminal of a power supply, as this may cause a short circuit and burn out the sensor. Terminal 2 is the output terminal.
