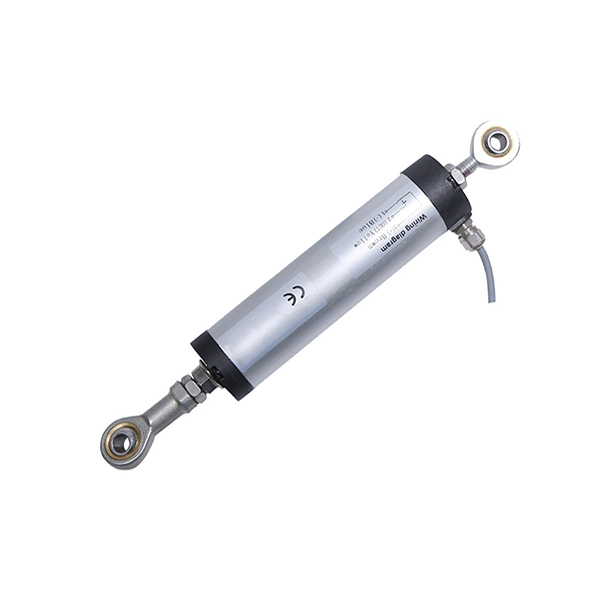

High Precision Displacement Sensor, Articulated Type

High-precision displacement sensor has a measuring range of 75~750 mm and is suitable for accurate linear displacement measurement. SUCH displacement sensor exhibits excellent repeatability, with a repeatability accuracy of 0.01 mm. The maximum operating speed can reach 10 m/s. The output signal is 0~100% of the input operating voltage and changes linearly with displacement, facilitating system data acquisition and control. The displacement sensor has a mechanical life of >100×10⁶ times and can operate stably and reliably for extended periods.

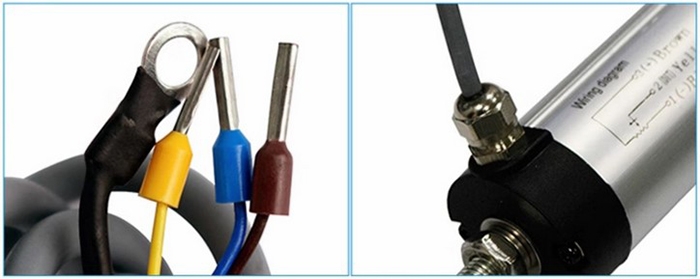

Feature

• Extra-long service life: Designed with high-wear-resistance materials for long-term and high-cycle operation.
• Smooth and noise-free output: Engineering-grade guide rail ensures smooth movement and stable, low-noise signal output.
• Excellent linearity: Precision conductive materials and advanced manufacturing process guarantee outstanding linear performance.
• Robust housing design: Sensor housing is made of anodized aluminum alloy, with electrophoretic surface treatment providing anti-static, anti-radiation, and high wear resistance.
• Highly reliable internal structure: Internal conductive materials are made from premium-grade raw materials, ensuring high wear resistance and long-term stability, even under harsh operating conditions.
• Articulated buffer joint: The front-end buffer universal joint effectively compensates for misalignment, angular deviation, and vibration of the transmission rod, reducing mechanical stress and extending service life.

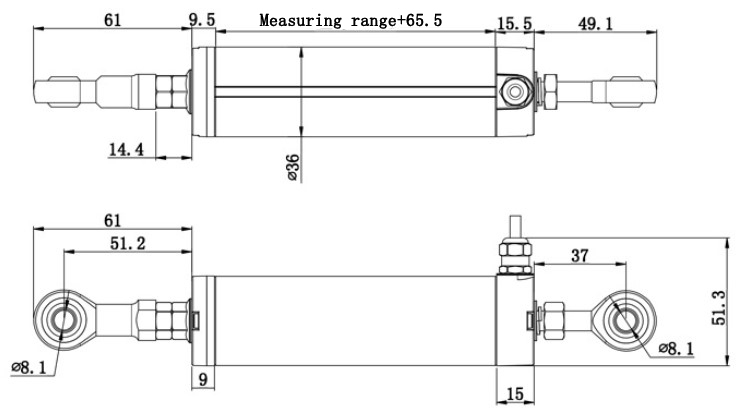

Dimension (Unit: mm)
