Compression Load Cell

View as Grid List

Sort by

Display per page

Picture of Compression Type Load Cell, 300kg-100 ton

Compression Type Load Cell, 300kg-100 ton

● Measuring range 300kg to 100 ton optional ● Accuracy 0.03% F.S, sensitivity 2.0 mV/V ● Recommended bridge voltage 10 V DC ● Made of alloy steel or stainless steel, IP67 protection grade

$116.78

Picture of Compression Load Cell for Weight Measurement, 300kg-30 ton

Compression Load Cell for Weight Measurement, 300kg-30 ton

● Measuring range 300kg-30 ton ● Safe overload 150% F.S, sensitivity 2.0 mV/V ● Recommended bridge voltage 10V DC ● Made of stainless steel, double-sealed

$157.78

Picture of Precision Load Cell, 10kN-100kN

Precision Load Cell, 10kN-100kN

● Measuring range 0-100kN ● Can measure both tension and compression ● Output sensitivity 2.0±10%mV/V ● Constructed of 42CrMo alloy steel

$229.36

Picture of Pancake Load Cell for Silo, 50 ton-500 ton

Pancake Load Cell for Silo, 50 ton-500 ton

● Capacities 50 ton/80 ton/100 ton/200 ton/300 ton/500 ton ● Output sensitivity 2.0±0.05%mV/V ● Constructed of 42CrMo alloy steel ● Operating voltage 5-15V

$576.35

Picture of Column Load Cell, Double Flange, 5 ton-30 ton

Column Load Cell, Double Flange, 5 ton-30 ton

● Available ranges 5 ton/10 ton/20 ton/30 ton ● Dual flange construction ● Response frequency 10kHz ● Operating voltage 5-15V

$253.19

Picture of Compression Load Cell, Column Type, 20 ton-200 ton

Compression Load Cell, Column Type, 20 ton-200 ton

● Optional range 20 ton to 200 ton ● 150% F.S safe overload ● Recommended 10V DC bridge voltage ● Column-type structure, 42CrMo alloy steel

$263.17

Picture of Small Compression Load Cell, Button Type, 5kg-5 ton

Small Compression Load Cell, Button Type, 5kg-5 ton

● Measuring range 5kg-5 ton optional ● Button type, measures compression force ● Safe overload 150%, ultimate overload 200% ● Works at 5-10V voltage

$114.55

Picture of Compression Button Load Cell, 5kg-100kg

Compression Button Load Cell, 5kg-100kg

● Can measure compression forces from 5kg to 100kg ● Sensitivity 1.0mmV/V ● Stainless steel material ● Insulation resistance >5000MΩ

$131.75

Picture of Miniature Compression Load Cell, 5kg-100kg

Miniature Compression Load Cell, 5kg-100kg

● Measuring range from 5kg to 100kg ● Button-type construction, stainless steel material ● Sensitivity 2.0mV/V, zero output ±2%F.S ● Safety overload 150%, operating temperature -20°C ~+80°C

$134.39

Picture of Through Hole Load Cell, Ring Type, 50kg-5000kg

Through Hole Load Cell, Ring Type, 50kg-5000kg

● Measuring range 50 kg to 5000 kg optional ● Through-hole design, alloy steel construction ● 120% safe overload ● Operating temperature -20°C~80°C

$259.63

Picture of Ring Torsion Compression Load Cell, 1 ton-150 ton

Ring Torsion Compression Load Cell, 1 ton-150 ton

● Measuring range 1 ton to 150 ton ● Sensitivity 2.85mV/V ● 150% safe overload ● Recommended bridge voltage 10V DC

$259.99

Picture of Flat Load Cell, Diaphragm Type, 50kg-10 ton

Flat Load Cell, Diaphragm Type, 50kg-10 ton

● Capacity ranges from 50kg to 10 tons ● 42CrMo alloy steel material ● Operating voltage 5-15V ● Insulation resistance≥5000MΩ/100VDC

$142.69

Picture of Pedal Force Load Cell Sensor, 1-200kg

Pedal Force Load Cell Sensor, 1-200kg

● Measurement ranges 0-50kg/0-100kg/0-200kg ● Response frequency 10kHz, rated output 1.0-1.5mV/V ● Safe overload 150%, maximum overload: 200% ● Insulation resistance ≥5000MΩ/100VDC

$212.35

SUCH offers high-quality compression load cells ranging from 5kg to 500 ton. Compression load cell sensors are precision devices that convert axial pressure signals into accurately readable electrical signals. They can capture real-time changes in the weight or force of an object under compression, providing stable and reliable data support for various scenarios.

Advantages of Compression Load Cells

Compact size, easy installation, stable performance and can be easily integrated into different industrial systems.
Compression load cells use advanced strain gauge technology and are suitable for static and dynamic load measurements.
Long service life and low maintenance cost. Made of alloy steel, stainless steel and other high-strength materials, which can resist the erosion of dust, oil and water vapor.
High reliability in industrial environments, with overload and shock resistance, and can withstand instantaneous compression forces exceeding 150% of the rated load.

Applications of Compression Load Cells

Industrial weighing systems: Pressure monitoring of stamping equipment.
Platform scales and vehicle scales: Real-time monitoring of the weight of goods.
Tank and silo weighing: Material proportioning weighing in production lines.
Material testing machines: Compression force testing of components in automotive manufacturing.
Structural load monitoring: Real-time monitoring of load changes to prevent structural overloading.

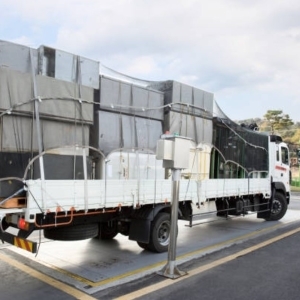

Cargo Weight Monitoring

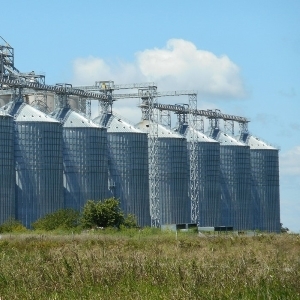

Silo Weighing

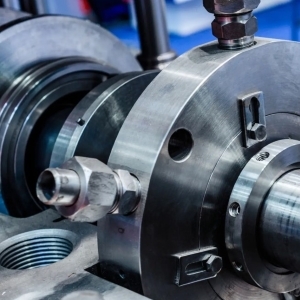

Stamping Monitoring

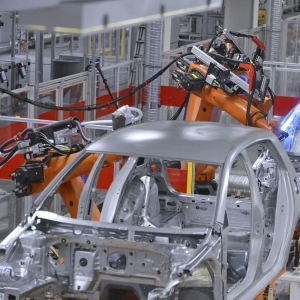

Automotive Parts Testing

In practice, compression load sensors can be combined with display controllers and transmitters to form complete weighing systems. By integrating wireless or IoT modules, compression load cells can also be used in smart industrial applications for remote monitoring and data analysis. Choosing the right load cell based on your specific application requirements can help achieve more accurate weight monitoring and intelligent control. If you have any questions about your purchase, you can contact us.
