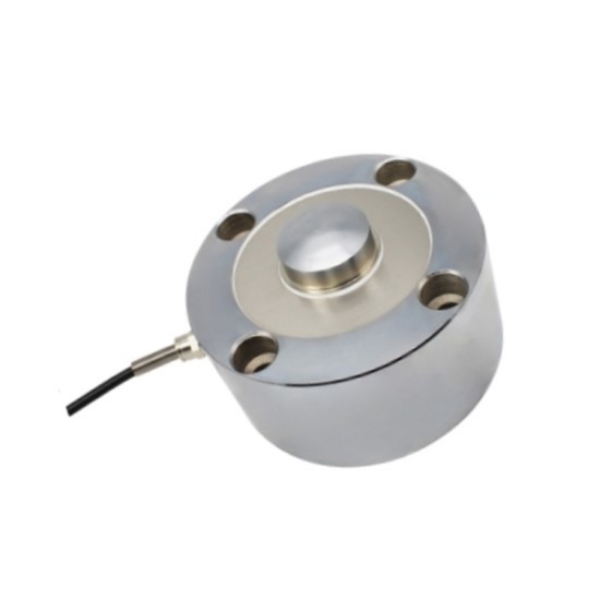

    Picture of Pancake Load Cell for Silo, 50 ton-500 ton Picture of Pancake Load Cell for Silo, 50 ton-500 ton Picture of Pancake Load Cell for Silo, 50 ton-500 ton Picture of Pancake Load Cell for Silo, 50 ton-500 ton Picture of Pancake Load Cell for Silo, 50 ton-500 ton Picture of Pancake Load Cell for Silo, 50 ton-500 ton

    Pancake Load Cell for Silo, 50 ton-500 ton

    1 review(s) | Add your review
    SKU: SUCH-LC-105
    $576.35
    ● Capacities 50 ton/80 ton/100 ton/200 ton/300 ton/500 ton ● Output sensitivity 2.0±0.05%mV/V ● Constructed of 42CrMo alloy steel ● Operating voltage 5-15V
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Low price pancake load cell with optional capacities of 50 ton, 80 ton, 100 ton,  200 ton, 300 ton and 500 ton. Made of alloy steel and featuring a pancake-style elastomer structure, the load cell sensors offer a low profile, excellent eccentricity, high accuracy, and superior strength. SUCH pancake load cells are suitable for various load tests and can be used to weigh hoppers, silos, and tanks.

    After purchasing one SUCH load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

    Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

    Feature

    • Precise and Reliable: Excellent sealing, rigid structure, and eccentricity resistance ensure long-term accurate and stable measurement.
    • Rugged and Durable: The pancake weigh cell is made of 42CrMo alloy steel, which offers high strength, toughness, and a high fatigue limit.
    • Wide Applications: Widely used in electronic scales, cement batching silos, dry powder mixers, and industrial automation measurement and control systems.

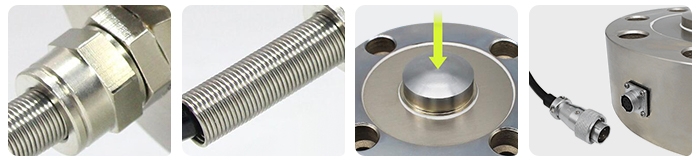

    Feature of pancake load cell

    Dimension (Unit:mm)

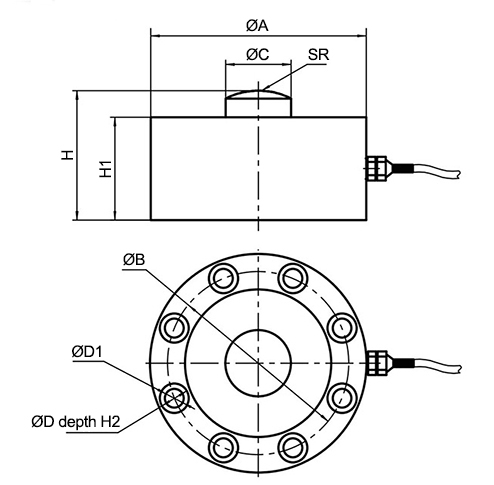

    Size of pancake load cell

    Capacity 50T 80T 100T 200T-300T >300T~500T
    ΦA 148 178 208 260 360
    ΦB 124 145 176 200 300
    ΦC 45 55 60 90 190
    SR 50 100 100 200 350
    H 88 85 95 100 130
    H1 70 65 75 85 110
    H2 15 15 20 22 30
    ΦD 4-Φ20 8-Φ20 8-Φ20 8-Φ27 16-Φ40
    ΦD1 4-Φ13 8-Φ13 8-Φ13 8-Φ17 16-Φ25


    Force Mode

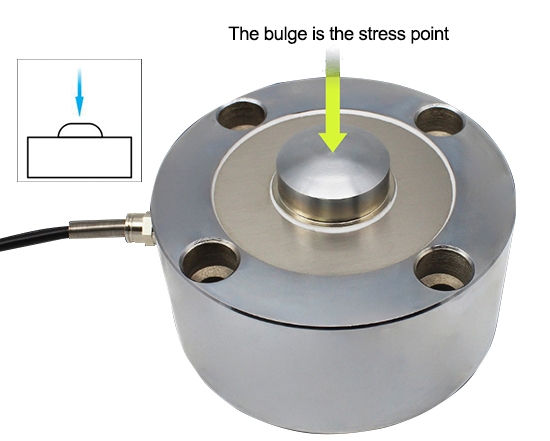

    Force diagram of pancake load cell

    Wiring

    Wiring of load cell

    Specs
    Capacity 50 ton/80 ton/100 ton/200 ton/300ton/500 ton (optional)
    Matched Display Controller SUCH-LCDC-DY800 (Click it to the controller page)
    Matched Transmitter SUCH-LCTR-OA (Click it to the transmitter page)
    Output Sensitivity 2.0±0.05% mV/V
    Zero Output ±1% F.S
    Nonlinear Error 0.05% F.S
    Hysteresis 0.05% F.S
    Repeatability 0.05% F.S
    Creep 0.05% F.S (30 min)
    Sensitivity Temperature Coefficient 0.05% F.S/10°C
    Zero Temperature Coefficient 0.05% F.S/10°C
    Response Frequency 1kHz
    Material Alloy steel
    Input Resistance 750±20Ω
    Output Resistance 700±5Ω
    Insulation Resistance ≥5000 MΩ/100 VDC
    Operating Voltage 5-15V
    Operating Temperature Range -20°C to 80°C
    Safety Overload 150%
    Limit Load 200%
    Ultimate Cable Pulling Force 10kg
    Cable Specification φ5*5m
    Application
    Concrete mixing plant

    Concrete Mixing Plant

    Parts pressing

    Parts Pressing

    Floor scale

    Floor Scale

    FAQ
    ❯

    A pancake load cell is a force transducer designed with a flat, disk-like shape. It is widely used for measuring tension and compression forces in applications that require high accuracy and compact size.

    ❯

    Mount a pancake load cell on a flat, rigid surface using its mounting holes or threads, ensuring proper alignment and avoiding side loads to get accurate force measurements.

    ❯

    Low-profile design suitable for limited installation spaces. High capacity range, making it suitable for heavy-duty applications. Durable structure for long-term industrial use.

    1 review(s)
    5.0 1
    Write your own review Close
    *
    *
    Logan Delaney | 9/22/2026 9:15 AM
    15 ton load cells with multi-channel monitoring
    I’m looking for 15-ton load cells that can measure both compression and tension. I also need to monitor around 10 to 12 individual load cells from a single computer, rather than checking each sensor separately. Can you provide a setup that would handle the multi-channel monitoring, and what information would you need from me to recommend the right load cells?
    SUCH responded to this review
    We can provide a multi-channel data acquisition unit and software for monitoring multiple load cells from one computer. Please send us some photos of the installation site, describe what you need to measure, and indicate where the load cells will be mounted so we can recommend a suitable configuration.
