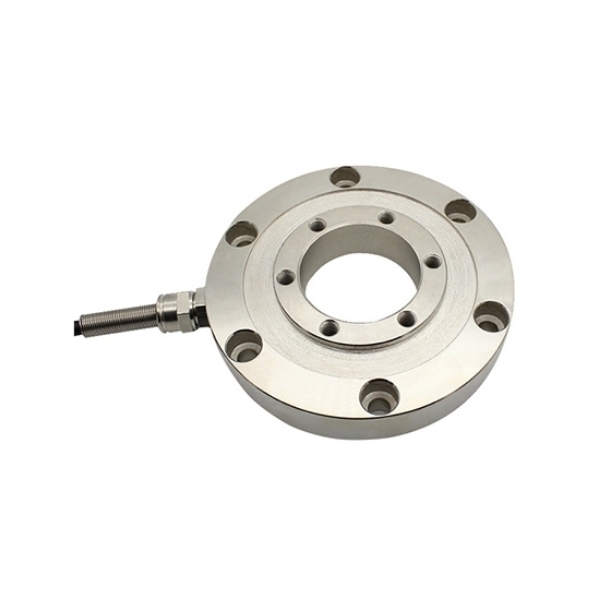

Through Hole Load Cell, Ring Type, 50kg-5000kg

SUCH high-performance through hole load cells meet diverse weighing requirements from 0 to 50 kg, 200 kg, 300 kg, 500 kg, 1000 kg, 3000 kg, and 5000 kg. The through hole load sensor offers a zero-point output of ±2% F.S and a 120% safe overload, along with extremely low linearity error and temperature drift, enabling precise measurement. The load cells utilize a through-hole ring-type design and a fully sealed alloy steel structure, offering a strong load capacity and adaptability to diverse weighing tasks, ensuring long-term operation in complex industrial environments.

After purchasing one SUCH load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

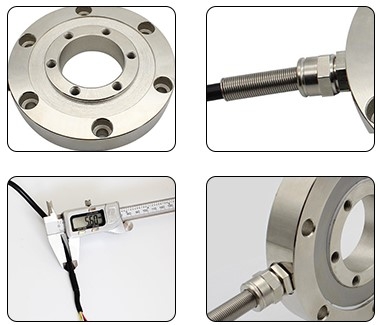

Feature

• Sturdy Load Cell Body: Made of 40Cr alloy steel, it offers strong resistance to mechanical fatigue and excellent hardenability.
• High Quality OD Wire: 5.6mm OD wire ensures a stable signal and strong anti-interference capabilities.
• High Performance Material: The through hole load cell sensor connector features nickel-plated brass, which is waterproof and durable.
• 6 Angle Waterproof Connector: The load cell connector has a spring-loaded design for effective cushioning, preventing wire strain and breakage.

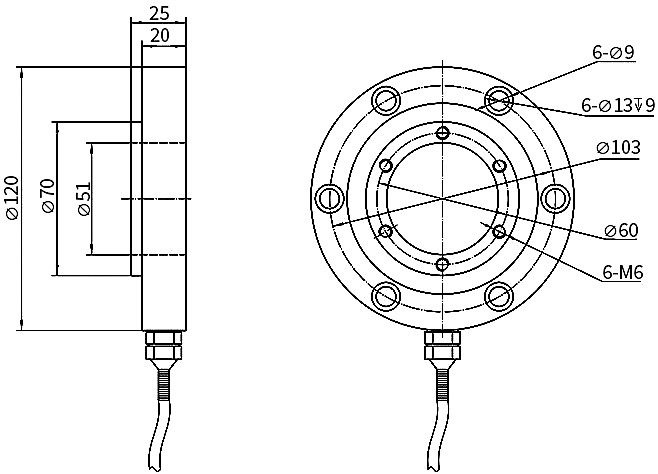

Dimension (Unit:mm)

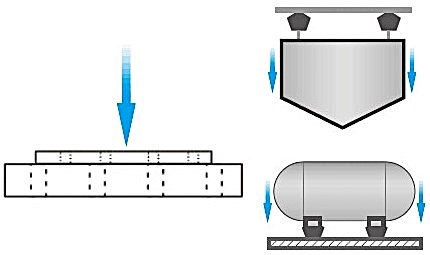

Force Mode

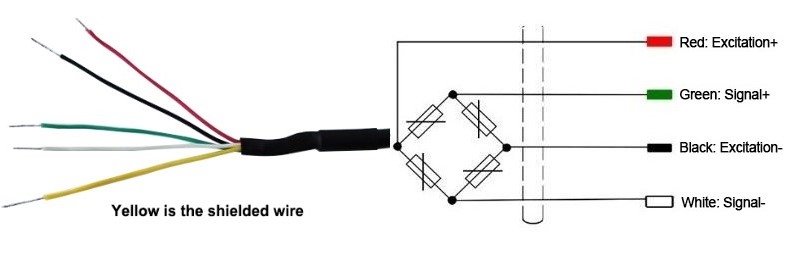

Wiring

Note: This is the pressure wiring of the load cell, such as the measurement of tensile force need to be the definition of the green wire and white wire wiring alignment.
