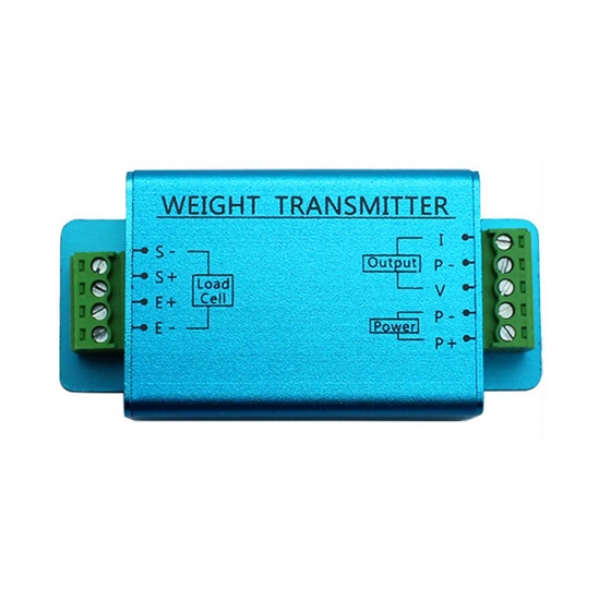

Load Cell Transmitter, 4-20mA/0-5V/0-10V Output

A load cell transmitter is a device that converts the weak electrical signal generated by a load cell into a standardized output signal (such as 4-20mA or 0-10V) for use in industrial control systems or data acquisition systems.

A load cell generates a low-level analog signal proportional to the applied weight or force. The transmitter amplifies, filters, and linearizes this signal. The transmitter outputs a standardized signal that can be read by a controller, PLC, or monitoring system.

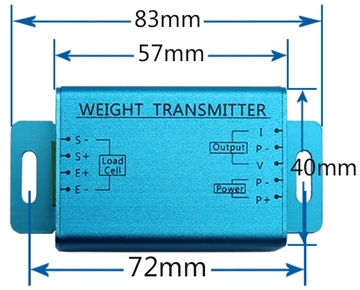

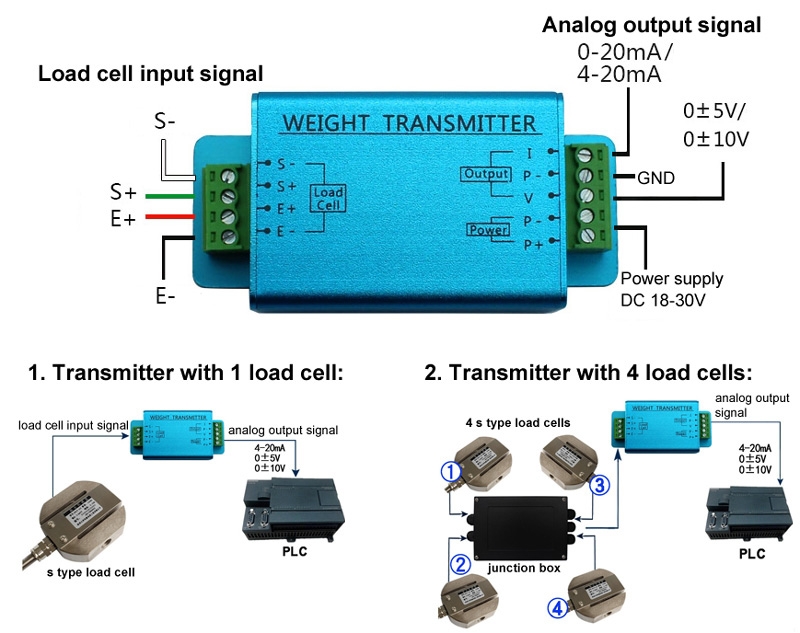

Connect the load cell wiring according to the transmitter's wiring diagram, supply the transmitter with the required voltage, configure the output type (current or voltage) according to the requirements of the receiving system, and calibrate the system to ensure accurate weight readings.
