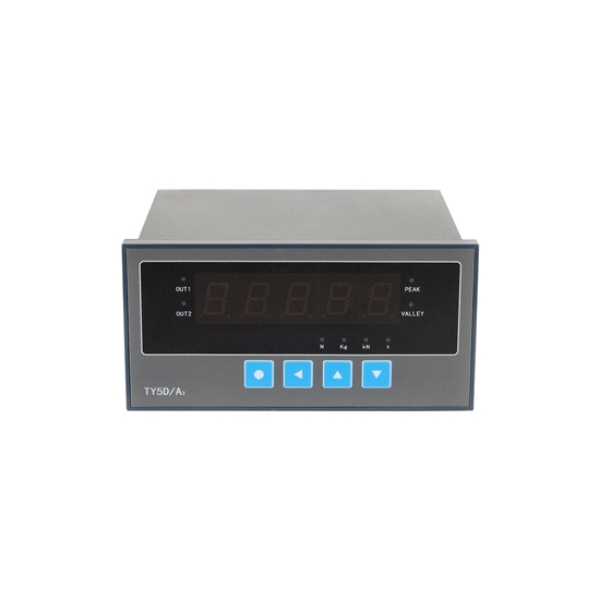

Load Cell Display Controller, 5 Digit, 2 Realy Output

Name: Load Cell Display Controller, 5 Digit, 2 Realy Output
Brand: Such.com
SKU: SUCH-LCDC-TY5DA3
Price: 120.66 USD
Availability: InStock
Rating: 5.0 (1 reviews)

1 review(s) | Add your review

SKU: SUCH-LCDC-TY5DA3

$120.66

● One to four ±20mV signal inputs ● Display range -19999 to 99999 ● Sampling speed 10 times/second ● Dimensions 160*80*125mm

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Low cost 5 digit load cell display controller for sale online. SUCH digital load cell display controller has four switchable measurement units N/kN/kg/ T, with a display range of -19999~99999, 1 to 4 ±20mV signal inputs, and 2 relay signal outputs. It is suitable for applications requiring weight control, automatic accumulation/average over/under batch control.

Feature

100V~240V AC power supply, 1-4 ±20mV signal inputs, 2 relay signal outputs.
The display controller allows for selectable display units of N, kN, kg, and T, with four switchable measurement units.
The large, hollow heat dissipation design ensures excellent air permeability and ensures stable and safe use.
Easy wiring, with secure terminals and flame-retardant plastic terminal covers, ensures reliable performance.

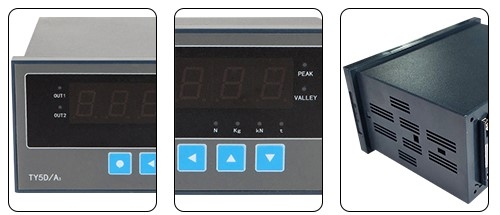

Load cell controller feature

Wiring

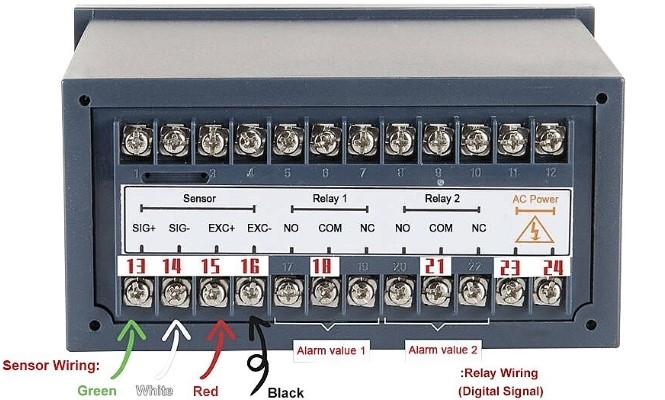

Load cell controller wiring

Specs

Power Supply	100-240V AC (Default)
Working Environment	0~50℃ 90% R.H without Dew
Digital Display	5 Red LED Display
Indication Range	-19999~99999, Overload Display O.L
Display Scale Division	1, 2, 5
Weighing Functions	Zero, Zero Tracking, Auto-Zero at Power
Excitation	5V, 200mA
Input Signal	±20mV
Sampling Rate	10 times/sec
Dimension	160x80x125mm
Function	2 Ways Relay

Application

Packaging

Logistics

Ingredients System

FAQ

Q1: Why do load cells need a display controller? ❯

Because load cells output weak electrical signals, display controllers amplify and convert these signals to visually display the weight. They also support calibration, alarms, data transmission, and other functions.

Q2: What's the difference between 5-digit and 6-digit load cell display controllers? ❯

The primary difference lies in display accuracy. 5-digit controllers typically display values up to 99,999, while 6-digit controllers can display a wider range of values or higher resolution, making them more suitable for high-precision weighing or large-volume applications.

Q3: How important are digital display controllers in load cell applications? ❯

The display controller is the core interface of a weighing system. Without it, sensor signals are difficult to read or apply directly. The controller not only provides real-time weight display but also improves system accuracy and stability and facilitates communication with a PLC or host computer.

1 review(s)

Write your own review Close

Review title: *

Review text: *

Rating:

1 2 3 4 5

From: Lucas Monroe | Date: 8/6/2026 3:29 AM

load cell controller is a good choice

I use this controller with a load cell for basic weight monitoring. The load cell controller has a straightforward design and the installation was pretty simple. It took a few adjustments to get the parameters right, but that is normal with weighing equipment. So far it has been reliable and does the job for my needs.
