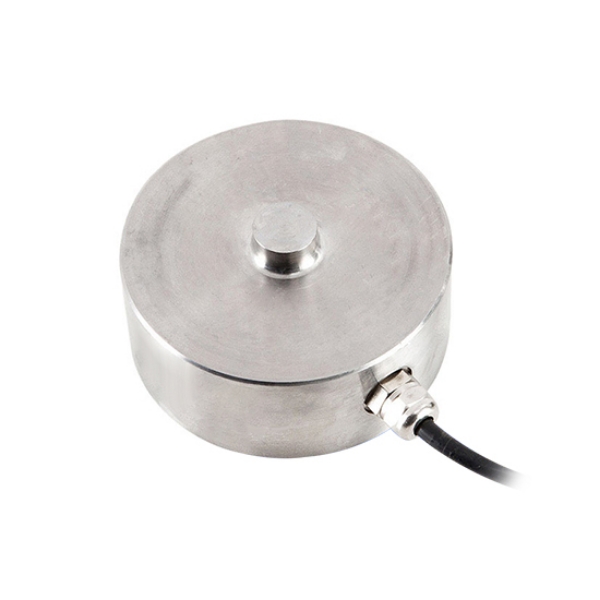

Compression Load Cell for Weight Measurement, 300kg-30 ton

0 review(s) | Add your review

SKU: SUCH-LC-TC03

$157.78

● Measuring range 300kg-30 ton ● Safe overload 150% F.S, sensitivity 2.0 mV/V ● Recommended bridge voltage 10V DC ● Made of stainless steel, double-sealed

Capacity *
With Display Controller *
With Transmitter *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The load cell is specially designed for weighing. With a compact design and corrosion-resistant stainless steel construction, it is suitable for force measurement in harsh environments. Compression load sensors for weight measurement are available in a variety of ranges: 0-300kg/500kg/1 ton/2 ton/3 ton/5 ton/10 ton/20 ton/30 ton. SUCH load cells are suitable for platform scales, truck scales, railway scales, and automated measurement and control applications.

After purchasing one SUCH load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Feature

High-Quality Stainless Steel Construction: Made from durable stainless steel, ensuring strength and resistance to wear and tear in demanding environments.
Strong Anti-Corrosion Ability: The compression load cell is designed to withstand harsh conditions with superior resistance to corrosion, making it suitable for various industrial and outdoor applications.
Dual Seals for Protection: Equipped with double seals for enhanced protection against dust, moisture, and contaminants, ensuring longevity and reliable performance.
Versatile Force Measurement: Compression load cell sensors are ideal for a wide range of force measurement applications, including industrial weighing systems, automotive platforms, and conveyor systems.
Suitable for Harsh Environments: Engineered to perform accurately in challenging environments, making it perfect for use in factories, construction sites, and other harsh conditions.
Applications in Automation and Control Systems: Commonly used in automotive, rail, and automation control systems, ensuring precise and accurate force monitoring for operational efficiency.

Load cell for weight measurement feature

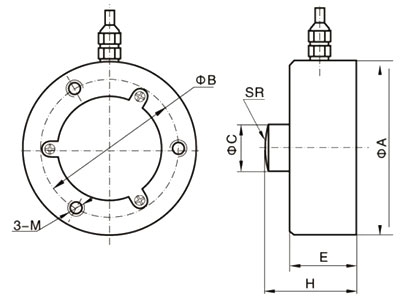

Dimension (Unit:mm)

Load cell for weight measurement dimension

Capacity	Dimension (mm)
Capacity	ΦA	ΦB	ΦC	H	E	M	SR
300~1000kg	78	64	15	40	32	M6	40
2~10 ton	82	66	22	44	32	M8	50
15~30 ton	127	90	25	70	62	M10	60

Wiring

Wiring of load cell

Specs

Shipping Weight	1.3~6.3kg
Capacity Range *	300 kg~30 ton
Matched Display Controller	SUCH-LCDC-TY5DA3 (Click it to the controller page)
Matched Transmitter	SUCH-LCTR-NTB3K (Click it to the transmitter page)
Accuracy	0.03%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±0.1mV/V
Creep	±0.03~±0.05%F.S/30min
Zero Output	±1%F.S
Temperature Effect on Zero	±0.03%F.S/10℃
Temperature Effect on Output	±0.03%F.S/10℃
Operating Temperature	-20℃~+65℃
Input Impedance	380±10Ω, 750±15Ω
Output Impedance	350±3Ω, 700±5Ω
Insulation Resistance	≥5000MΩ
Safety Overload	150%F.S
Bridge Voltage (excitation voltage)	DC 10V
Material	Stainless steel
Protection Class	IP67
Cable length	3m (＜5 ton), 6m (≥5 ton)
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White
