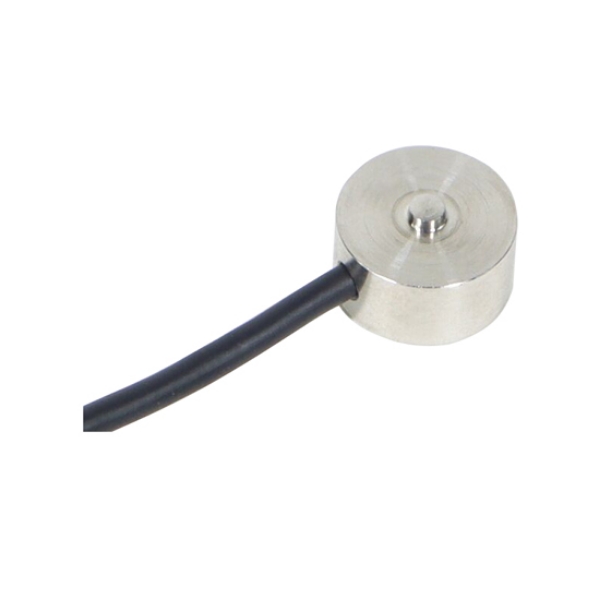

Compression Button Load Cell, 5kg-100kg

0 review(s) | Add your review

SKU: SUCH-LC-BU02

$131.75

● Can measure compression forces from 5kg to 100kg ● Sensitivity 1.0mmV/V ● Stainless steel material ● Insulation resistance >5000MΩ

Capacity *
With Transmitter *
With Display Controller *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Factory price compression button load cells for sale online. Capacities range from 5kg, 10kg, 20kg, 30kg, 50kg to 100kg. Button load cell sensors operate in temperatures from -20°C to 80°C, have an input impedance of 350Ω, and an output impedance of 500Ω. SUCH button load cell can be used for applications such as mold pressure testing, digital product assembly, and keyboard force measurement.

After purchasing one SUCH load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

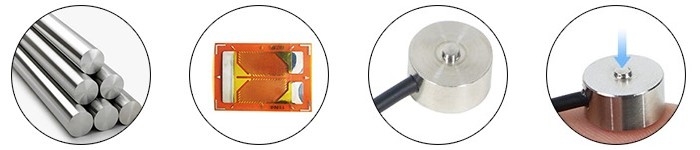

Feature

Compact & Versatile: Small size, easy integration, and multiple size options for diverse needs.
High Accuracy: Delivers precise and consistent measurements.
Reliable & Stable: Ensures dependable performance for long-term use.
Effortless Installation: Quick and simple setup, saving time.
Durable Build: Compression button load sensor made with robust 17-4 PH stainless steel for strength and longevity.
Resistant to Harsh Conditions: The Button load cell sensor is heat-resistant and wear-resistant, with stable performance.
Long-lasting: Provides durable, stable, and accurate measurements over time.
Superior Wiring: 2.0mm diameter wires designed to resist pulling and weathering.
Precision Sensing: High-accuracy sensing chip for reliable measurements in various environments.

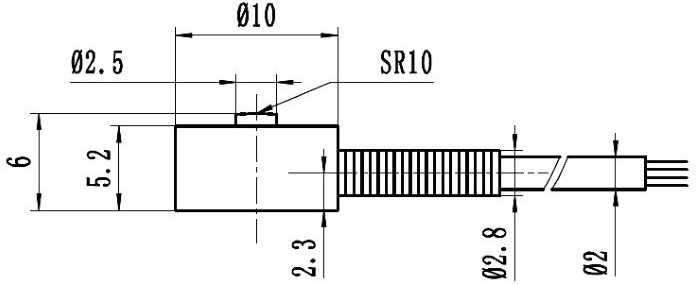

Dimension (Unit: mm)

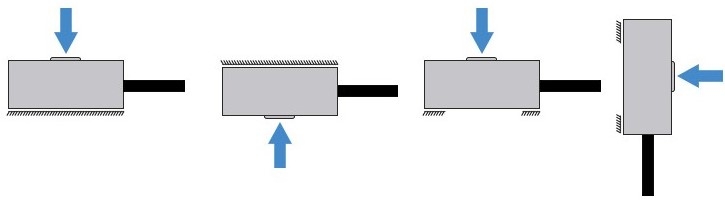

Force Mode

Wiring

Wiring of load cell

Specs

Shipping Weight	1kg
Capacity Range *	0~100kg
Matched Display Controller	SUCH-LCDC-DY800 (Click it to the controller page)
Matched Transmitter	SUCH-LCTR-OA (Click it to the transmitter page)
Accuracy	0.5%F.S (linearity + hysteresis + repeatability)
Sensitivity	1.0m±20%mV/V (Low range variations may differ)
Creep	±0.1%F.S/30min
Zero Output	±2%F.S
Temperature Effect on Zero	±0.2%F.S/10℃
Temperature Effect on Output	±0.2%F.S/10℃
Operating Temperature	-20℃~+80℃
Input Impedance	350Ω
Output Impedance	500Ω
Insulation Resistance	≥5000MΩ
Safety Overload	150%F.S
Bridge Voltage (excitation voltage)	DC 5-15V
Material	Stainless steel
Protection Class	IP66
Cable Length	2m
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

Application

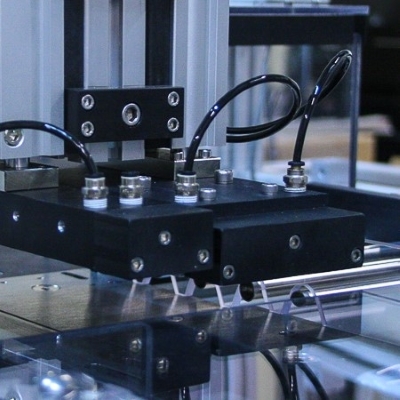

Digital Product Assembly

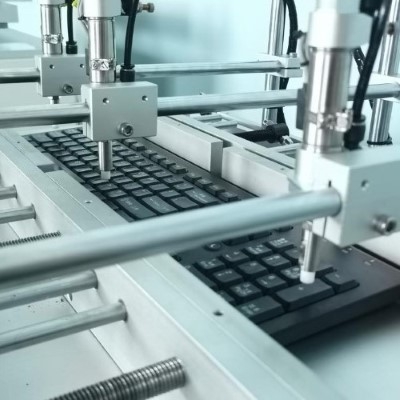

Key Force Measurement

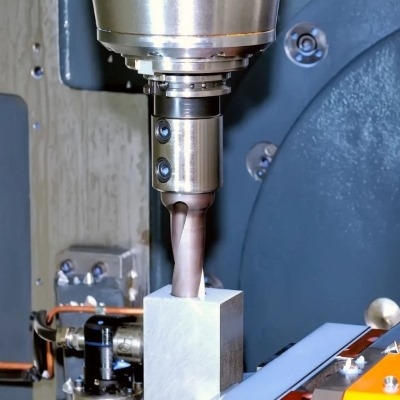

Mold Pressure Testing
