    Picture of Ring Torsion Compression Load Cell, 1 ton-150 ton Picture of Ring Torsion Compression Load Cell, 1 ton-150 ton Picture of Ring Torsion Compression Load Cell, 1 ton-150 ton Picture of Ring Torsion Compression Load Cell, 1 ton-150 ton Picture of Ring Torsion Compression Load Cell, 1 ton-150 ton Picture of Ring Torsion Compression Load Cell, 1 ton-150 ton

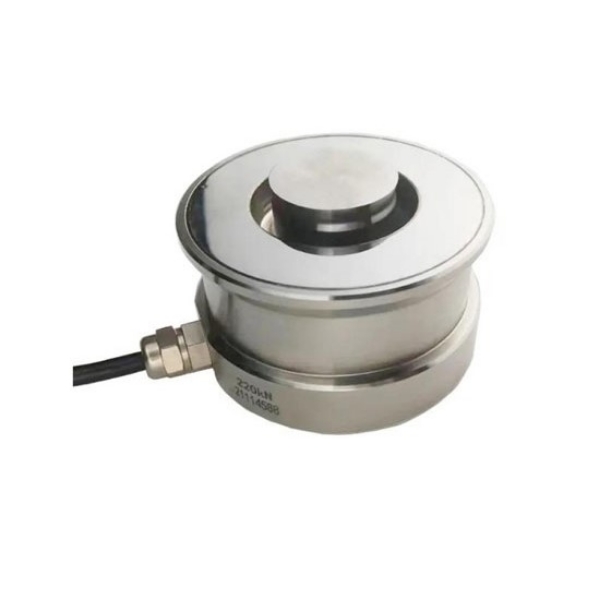

    Ring Torsion Compression Load Cell, 1 ton-150 ton

    0 review(s) | Add your review
    SKU: SUCH-LC-RTC150
    $259.99
    ● Measuring range 1 ton to 150 ton ● Sensitivity 2.85mV/V ● 150% safe overload ● Recommended bridge voltage 10V DC
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Buy a high-quality ring torsion compression load cell. SUCH ring torsion compression load cell offers a measurement range from 1 ton to 150 ton, a sensitivity of 2.85mV/V, and an overall accuracy range of 0.05% to 0.1% F.S. The ring torsion load cell sensor has a safe overload of 150% F.S, a creep rate of ±0.05% F.S/30 minutes, and a 10V DC power supply, making it suitable for precise force measurement in electronic scales, pressure testing machines, and industrial automation systems.

    After purchasing one SUCH load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

    Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

    Feature

    • Material Design: Made of stainless steel, the ring torsion compression load cell is compact, offers strong overload resistance, a wide measurement range, high sensitivity, high accuracy, and excellent resistance to off-center loads.
    • Energy Efficiency: The high impedance and low power consumption make it ideal for battery-powered measurement devices.
    • Wide Applications: The ring torsion load sensor is suitable for a variety of weighing equipment, including electronic balances and pressure testers.
    • Stable Signal: The output is stable, the signal is stable, and the load cell has strong anti-interference capabilities.
    • Easy Installation: Advanced grinding technology ensures easy installation and precise leveling.

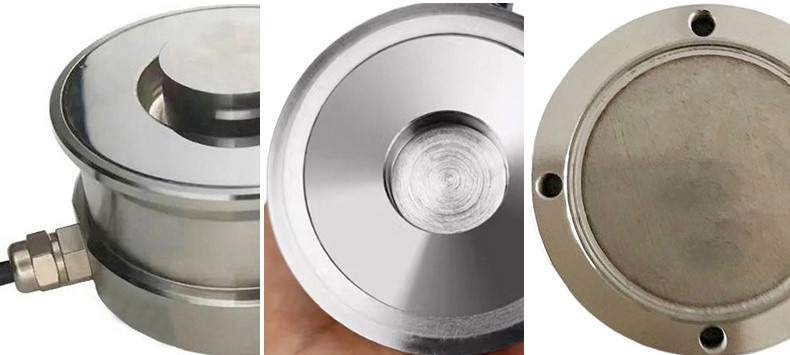

    Ring torsion load cell feature

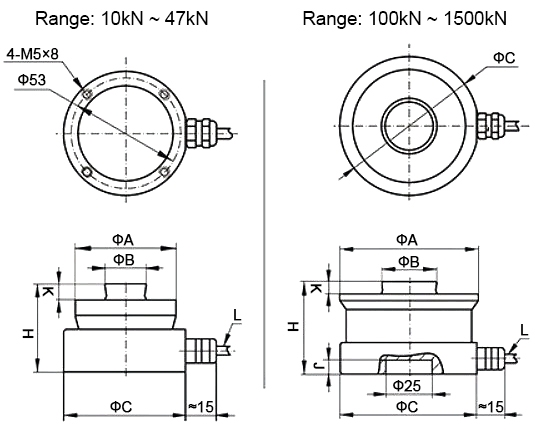

    Dimension (Unit:mm)

    Ring torsion load cell size

    Range Size
    kN Ton ØA ØB ØC H J K L
    10 1 48.9 20 60 43 / 8 10m
    22 2 48.9 20 60 43 / 8 10m
    47 4.7 48.9 20 60 43 / 8 10m
    100 10 75 30 75 50 7.6 6.5 10m
    150 15 75 30 75 50 7.6 6.5 10m
    220 22 75 30 75 50 7.6 6.5 10m
    330 33 95 40 95 65 7.6 10 10m
    470 47 130 60 130 75 7.6 14 10m
    680 68 130 60 130 75 7.6 14 10m
    1000 100 150 70 150 90 7.6 16 10m
    1500 150 150 70 150 100 7.6 16 10m


    Wiring

    Wiring of load cell

    Specs
    Measuring Range 0-150 ton (10~1500 kN)
    Matched Display Controller SUCH-LCDC-TY5DA3 (Click it to the controller page)
    Matched Transmitter SUCH-LCTR-NTB3K (Click it to the transmitter page)
    Comprehensive Accuracy 0.05~0.1%F.S
    Sensitivity 2.85 mV/V
    Creep ±0.05%F.S/30 min
    Zero Output ±1%FS
    Bridge Supply Voltage Recommended 10V DC
    Zero Temperature Effect ±0.05%F.S/10°C
    Output Temperature Effect ±0.05%F.S/10°C
    Operating Temperature -20°C~+65°C
    Input Impedance 4450±200Ω
    Output Impedance 4000±10Ω
    Insulation Resistance >5000MΩ
    Safe Overload 150%F.S
    Material Stainless Steel
    Application
    Concrete mixing plant

    Concrete Mixing Plant

    Parts pressing

    Parts Pressing

    Floor scale

    Floor Scale

    FAQ
    ❯

    A ring torsion load cell is a type of torque sensor designed in a ring shape to measure rotational or twisting forces applied to shafts or rods.

    ❯

    Ring torsion load cell provides high precision, compact design, and excellent torsional stiffness. The ring shape allows easy integration around shafts without altering the mechanical structure.

    ❯

    In engineering, ring shaped torsion load cells are commonly used to measure torque in rotating machinery, motor testing, robotic joints, drive shafts, mechanical assembly monitoring, and other applications requiring precise measurement of torsional force.
