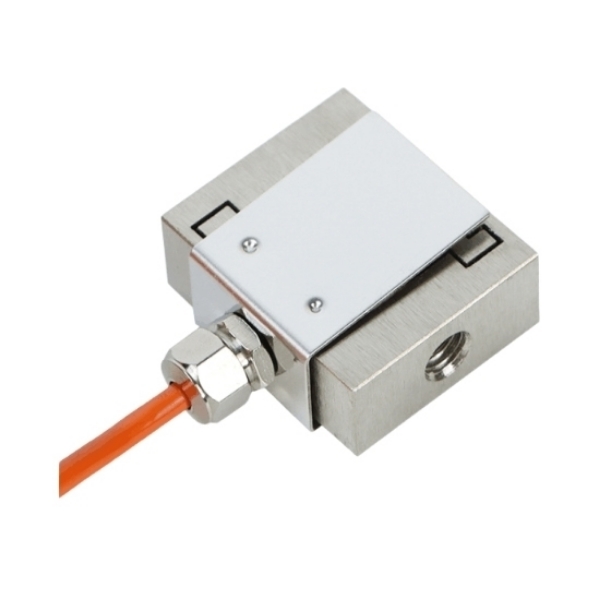

    Picture of Micro Load Cell, S Type,1kg- 50kg Picture of Micro Load Cell, S Type,1kg- 50kg Picture of Micro Load Cell, S Type,1kg- 50kg Picture of Micro Load Cell, S Type,1kg- 50kg

    Micro Load Cell, S Type,1kg- 50kg

    1 review(s) | Add your review
    SKU: SUCH-LC-S03
    $142.38
    ● Measurement range 1kg to 50kg ● Measures tension and compression ● S-shaped structure, compact size ● 2.0±0.05mV/V sensitivity
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    High quality micro load cells for sale online, with capacities ranging from 1kg, 2kg, 3kg, 10kg, to 50kg. These load cell sensors feature an S type design, offering excellent stability, symmetrical output, high accuracy, minimal temperature drift, and a compact design, making them suitable for use in limited spaces. SUCH micro load cells can withstand both tension and compression, exhibiting excellent hardenability and strong resistance to mechanical fatigue. They are widely used in force measurement systems for conveyor belt scales, hopper scales, and various engineering equipment.

    After purchasing one SUCH load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

    Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

    Feature

    • Rugged and Durable: Constructed from high-quality 42CrMo alloy steel, they feature rounded edges and a sandblasted finish for durability.
    • Compact Structure: The micro load cells are compact and offer high accuracy, making them suitable for a variety of weighing applications.
    • Industrial-grade Strain Gauges: Guaranteed to provide high measurement accuracy and operate in extreme environments, including high and low temperatures and high pressures.
    • Bidirectional Force Measurement: The S type micro load sensors support both tension and compression testing, offering excellent stability and responsiveness.
    • Threaded Hole Installation: Threaded holes on both the top and bottom allow for easy installation in conveyor belt scales, hopper scales, and batching systems.
    • Cover Protection: The micro sensor is protected by a cover, extending its service life and ensuring operation in harsh conditions.
    • Stable Signal Transmission: Shielded signal cables with a diameter of 3mm ensure stable signals and strong anti-interference capabilities.

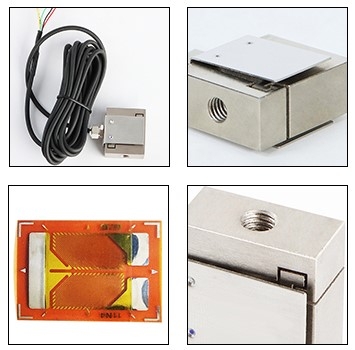

    Micro load cell feature

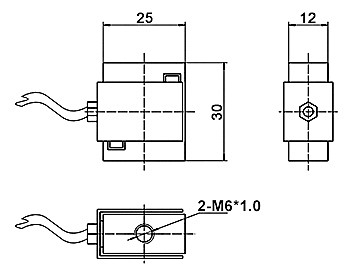

    Dimension (Unit:mm)

    Micro load cell dimension

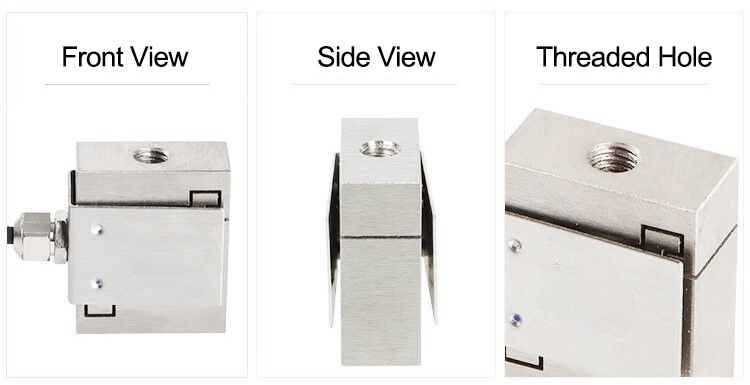

    Details

    Micro load cell details

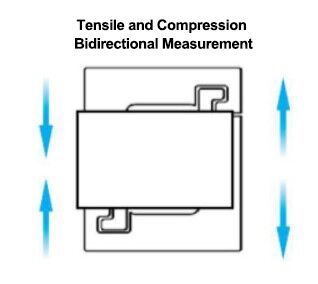

    Force Mode

    Micro load cell force mode

    Wiring

    Wiring of load cell

    Specs
    Weight 0.06kg
    Capacity Range * 0kg~50kg
    Matched Display Controller SUCH-LCDC-LC5D (Click it to the controller page)
    Matched Transmitter SUCH-LCTR-OA (Click it to the transmitter page)
    Accuracy 0.05%F.S (linearity + hysteresis + repeatability)
    Sensitivity 2.0±0.05mV/V (Low range variations may differ)
    Frequency Response 8 kHz
    Creep ±0.03%F.S/30min
    Zero Output ±1%F.S
    Temperature Effect on Zero ±0.03%F.S/10℃
    Temperature Effect on Output ±0.03%F.S/10℃
    Operating Temperature -20℃~+80℃
    Input Impedance 350±20Ω
    Output Impedance 350±5Ω
    Insulation Resistance ≥5000MΩ
    Safety Overload 150%F.S
    Bridge Voltage (excitation voltage) DC 5-15V, suggest DC 10V
    Material Alloy steel
    Protection Class IP67
    Cable Length 2m
    Wiring EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White
    Application
    Hopper Scale

    Hopper Scale

    Overhead Crane Scale

    Overhead Crane Scale

    Automatic Weighing Machine

    Automatic Weighing Machine

    FAQ
    ❯

    A micro load cell is a miniature force sensor designed to measure very small loads with high precision.

    ❯

    Yes, micro load cells can measure both static and dynamic loads.

    ❯

    Micro load cells are compact and suitable for space-constrained equipment or miniaturized products. They offer high sensitivity and can accurately detect minute changes in force or weight.
