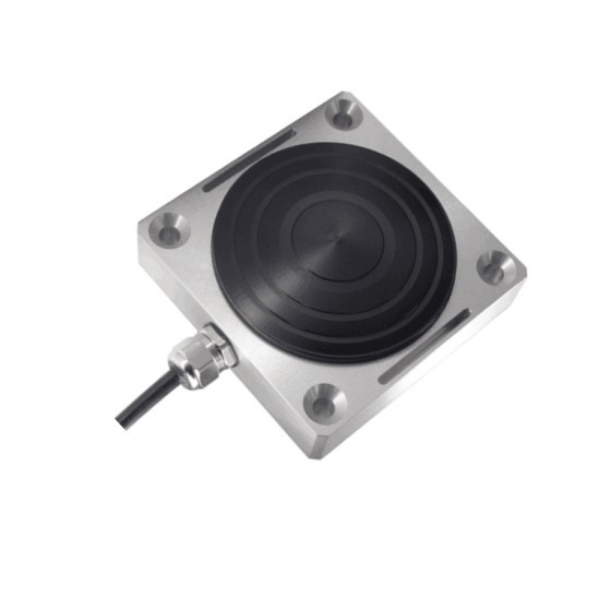

Pedal Force Load Cell Sensor, 1-200kg

0 review(s) | Add your review

SKU: SUCH-LC-TB002

$212.35

● Measurement ranges 0-50kg/0-100kg/0-200kg ● Response frequency 10kHz, rated output 1.0-1.5mV/V ● Safe overload 150%, maximum overload: 200% ● Insulation resistance ≥5000MΩ/100VDC

Capacity *
With Transmitter *
With Display Controller *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Good priced pedal force load cell sensors for sale, with optional ranges of 0-50kg, 0-100kg and 0-200kg. These pedal load cells have a rated output of 1.0-1.5mV/V and a zero balance of ±2%F.S. Made of alloy steel, stainless steel, or aluminum alloy, they offer an impedance of 700Ω and an insulation resistance of ≥5000MΩ/100VDC. SUCH pedal force load cells are ideal for measuring pedal force, braking force, and dynamic loads in automotive applications.

After purchasing one SUCH load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The force sensor cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Feature

Wide Measurement Range: Pedal force load cell sensor supports a measurement range of 0 to 200kg, suitable for various automotive applications.
High Precision: Ensures stable and accurate measurements with minimal lateral interference, making it highly reliable for testing.
Compact and Robust Design: Pedal force load cell has a low-profile structure that is easy to install and designed for high stability and durability.
Advanced Material: Made from lightweight aluminum alloy with excellent casting and machining properties, combining strength and versatility.
Specialized for Automotive Testing: Ideal for measuring pedal forces in vehicles, brake force, and dynamic load testing in automotive inspection systems.
Flexible Installation: Equipped with a fan-shaped structure for easy and adaptable mounting on vehicle pedals or other surfaces.
Anti-Interference Design: Built to resist lateral forces and vibrations, ensuring consistent performance even in dynamic environments.
Broad Application Scope: Pedal load cells are widely used in automotive pedal force testing, automation assembly lines, and other automated devices or testing fields.

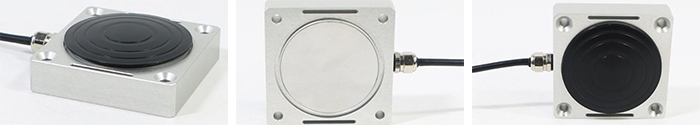

Feature of pedal force load cell sensor

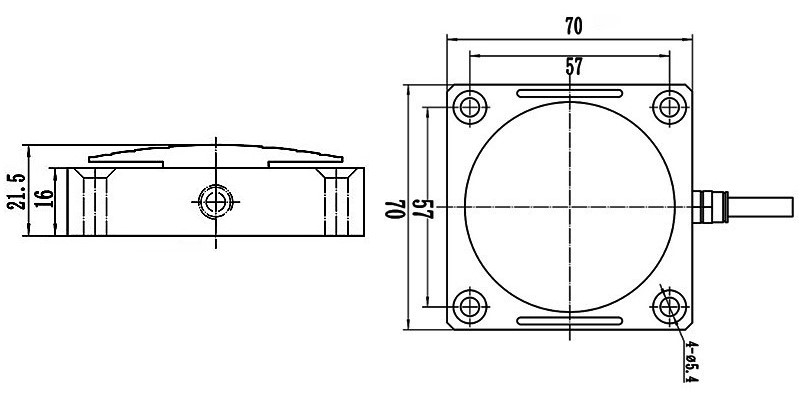

Dimension (Unit:mm)

Size of pedal force load cell sensor

Wiring

Wiring of load cell

Specs

Capacity	1-200kg (optional 0-50kg, 0-100kg, 0-200kg)
Matched Display Controller	SUCH-LCDC-DY800 (Click it to the controller page)
Matched Transmitter	SUCH-LCTR-OA (Click it to the transmitter page)
Rated Output	1.0-1.5mV/V
Zero Balance	±2%F.S.
Non-Linearity	0.3%F.S.
Hysteresis	0.3%F.S.
Repeatability	0.1%F.S.
Creep (30min)	0.05%F.S.
Temp Effect on Output	0.05%F.S./10°C
Temp Effect on Zero	0.3%F.S./10°C
Response Frequency	10kHz
Material	Alloy Steel/Stainless Steel/Aluminum Alloy
Impedance	700Ω
Insulation	≥5000MΩ/100VDC
Operating Voltage	5-10V
Operating Temperature Range	-20 to 70°C
Safe Overload	150%
Maximum Overload	200%
Cable Specifications	Φ3×2m
Cable Ultimate Pull	10kg
TEDS	Optional (Contact customer service)

Application

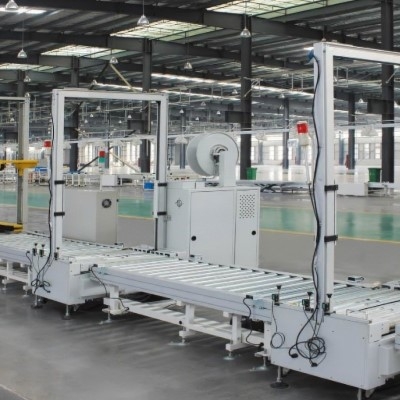

Automated Equipment

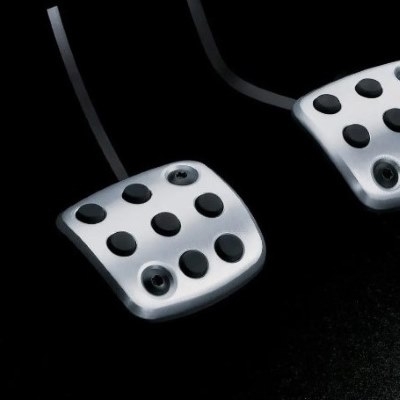

Automotive Pedal

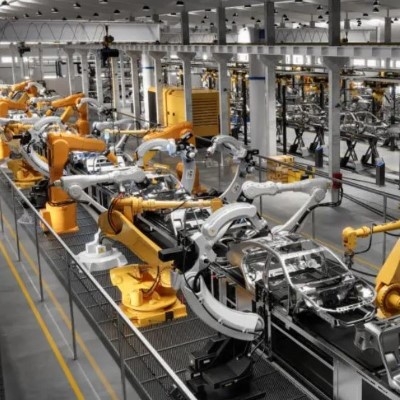

Automated Assembly

FAQ

Q1: What is a pedal force load cell sensor? ❯

A pedal force load cell sensor is an electronic device that measures the force applied to the pedal. Its core principle is that force causes deformation of the metal inside the sensor, converting the change in resistance into an electrical signal.

Q2: What are the main applications of pedal force load sensors? ❯

Checking whether the brake pedal force meets safety standards. Force control in automated equipment. Force monitoring of foot switches in mechanical equipment.

Q3: What are common technical issues with pedal force load sensors? ❯

Accuracy drift: Temperature changes or mechanical fatigue can cause strain gauge characteristics to change, requiring regular calibration.
Signal noise: Electromagnetic interference or poor wiring can cause unstable readings.
Installation error: Sensor misalignment or improper preload can affect measurement accuracy.
