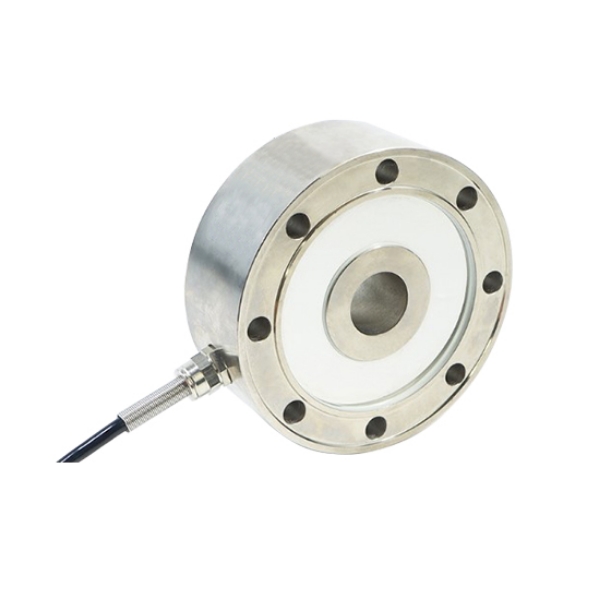

    Precision Load Cell, 10kN-100kN

    0 review(s) | Add your review
    SKU: SUCH-LC-LF104
    $229.36
    ● Measuring range 0-100kN ● Can measure both tension and compression ● Output sensitivity 2.0±10%mV/V ● Constructed of 42CrMo alloy steel
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Affordable price precision load cell for sale, with optional ranges of 0-10kN, 0-20kN, 0-30kN, 0-50kN, and 0-100kN. High-quality precision load cell sensor offers high accuracy and excellent stability, are made of alloy steel, are highly resistant to interference, and can be used within a temperature range of -20℃ to 80℃. SUCH precision load cells can measure both tension and compression, making them suitable for a variety of measurement situations.

    After purchasing one SUCH load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

    Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

    Feature

    • High Accuracy, Stability, and Durability: Provides precise measurements with consistent performance, made from 42CrMo alloy steel for long-term reliability in harsh conditions.
    • Anti-Interference Capability: Ensures reliable functionality against electromagnetic and mechanical disturbances.
    • Wide Application Range: The weigh cell is suitable for crane scales, railroad scales, and industrial automation systems.
    • Waterproof Design: Includes a six-sided waterproof connector and durable cable protection.
    • Bidirectional Measurement: Supports both tensile and compressive load measurements effectively.
    • Optional TEDS Support: Integrates with Transducer Electronic Data Sheets for enhanced functionality.
    • Wide Operating Temperature: Performs reliably between -20°C and 80°C for various industrial applications.

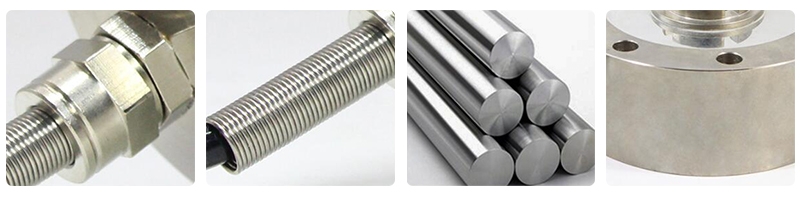

    Precision load cell feature

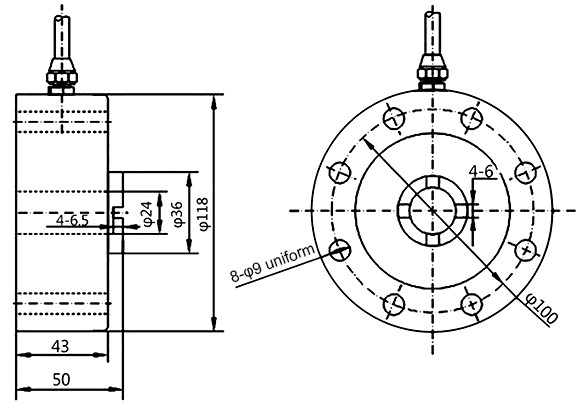

    Dimension (Unit:mm)

    Precision load cell size

    Wiring

    Wiring of load cell

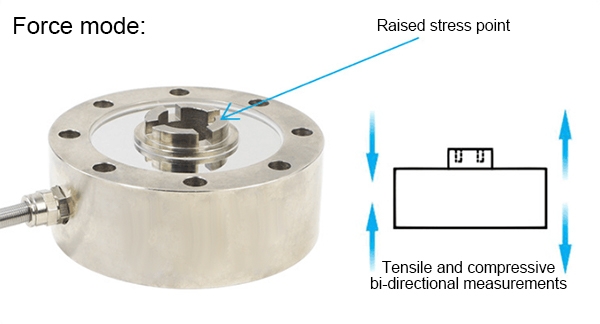

    Force Mode

    Precision load cell force mode

    Specs
    Capacity 0-100kN (optional 10/20/30/50/100kN)
    Matched Display Controller SUCH-LCDC-DY800 (Click it to the controller page)
    Matched Transmitter SUCH-LCTR-OA (Click it to the transmitter page)
    Output Sensitivity 2.0±10%mV/V
    Zero Output ±1%F.S
    Non-linearity 0.03%F.S
    Hysteresis     0.03%F.S
    Repeatability 0.03%F.S
    Creep (30 minutes) 0.03%F.S
    Temperature Sensitivity Drift 0.03%F.S/10℃
    Zero Temperature Drift 0.05%F.S/10℃
    Frequency Response 10kHz
    Material Alloy steel
    Resistance     700/1400Ω
    Insulation Resistance ≥5000MΩ/100VDC
    Excitation Voltage 5-15V
    Operating Temperature Range -20~80℃
    Safe Overload 120%
    Ultimate Overload 150%
    Cable Specification φ5×3m
    Cable Pulling Force 10kg
    TEDS Optional (Contact customer service)
    Application

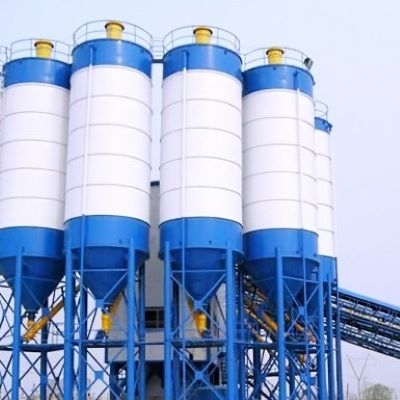

    Concrete mixing plant

    Concrete Mixing Plant

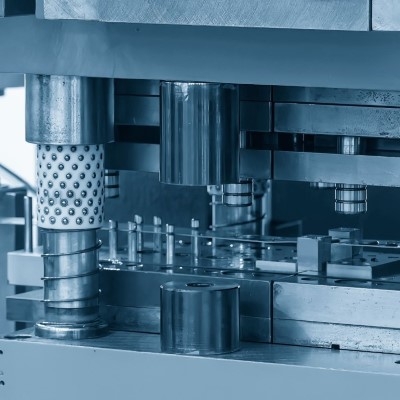

    Parts pressing

    Parts Pressing

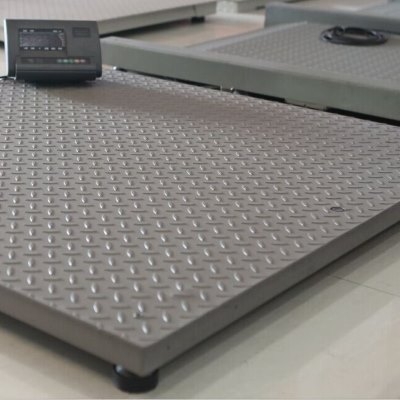

    Floor scale

    Floor Scale

    FAQ
    ❯

    During installation, ensure that the load direction aligns with the sensor axis, with a deviation of less than 0.5°. Use a flat, rigid base. When connecting, keep the shielded cable away from strong electromagnetic sources.

    ❯

    Clean the sensor surface regularly with isopropyl alcohol to prevent corrosion. Perform an on-site calibration annually or after 5,000 operating hours.

    ❯
    • Output drift may be caused by temperature fluctuations or residual mechanical stress, requiring a restart and recalibration.
    • High signal noise may indicate poor grounding or electromagnetic interference. Check the shielding layer and install a filter.
    • Zero offset is caused by plastic deformation of the elastomer due to overload. Replace the sensor and check the limit switches.
