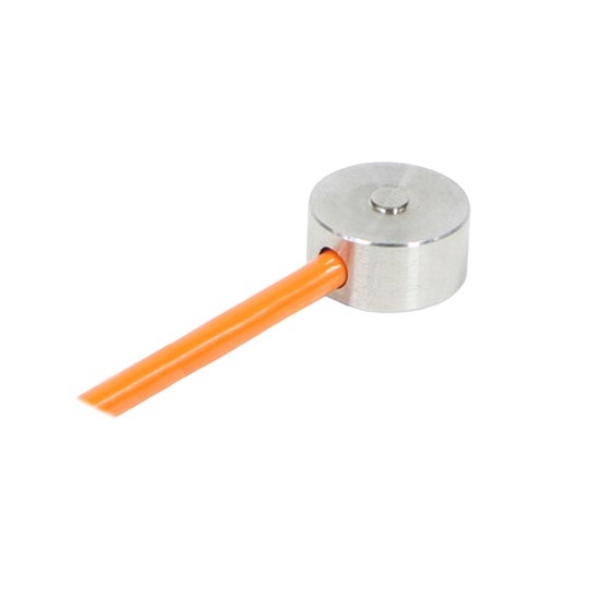

Miniature Compression Load Cell, 5kg-100kg

High-quality miniature compression load cells are available with capacities ranging from 5kg, 10kg, 20kg, 30kg, 50kg, and 100kg. SUCH miniature compression load cell features a button-type design and stainless steel construction, offering a safe overload of 150% F.S. and a zero output of ±2% F.S. The compression load cell sensor is suitable for pressure testers, automotive installations, automated assembly lines, and robotics.

After purchasing one SUCH load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

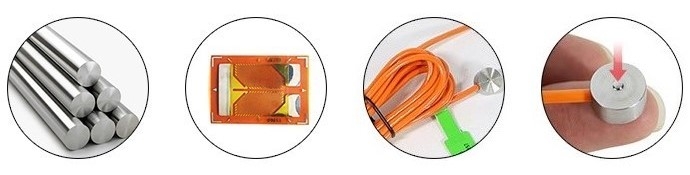

Feature

• High-Quality 17-4PH Stainless Steel Construction: Provides a stable and durable structure with excellent resistance to corrosion and high mechanical strength.
• High Accuracy and Stability: Miniature compression load sensor designed for precise measurements with high accuracy, ensuring stable performance over time.
• Pressure Resistance and Small Size: Miniature load cell can withstand significant pressure while maintaining a compact size for easy integration into various applications.
• 2-Meter Long External Cables: Comes with a 2-meter cable for convenient installation and flexibility in placement.
• Long-Term Stability and Durability: Built for long-term use with strong anti-interference and high durability, ensuring reliable performance in demanding environments.
• High Precision Sensing Element: Features a high-precision sensing element with good resistance to heat and temperature changes, maintaining accuracy over extended periods.

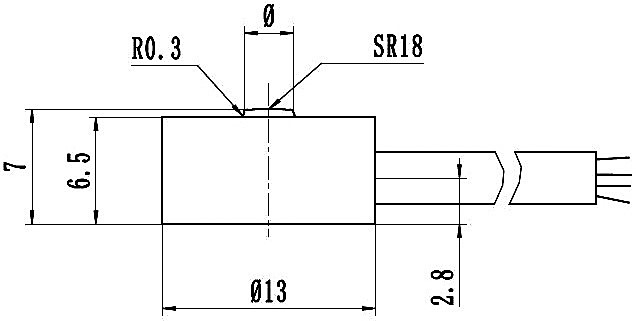

Dimension (Unit:mm)

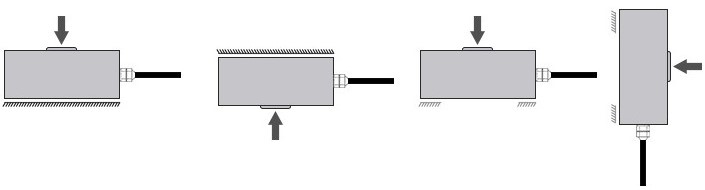

Force Mode

Wiring
