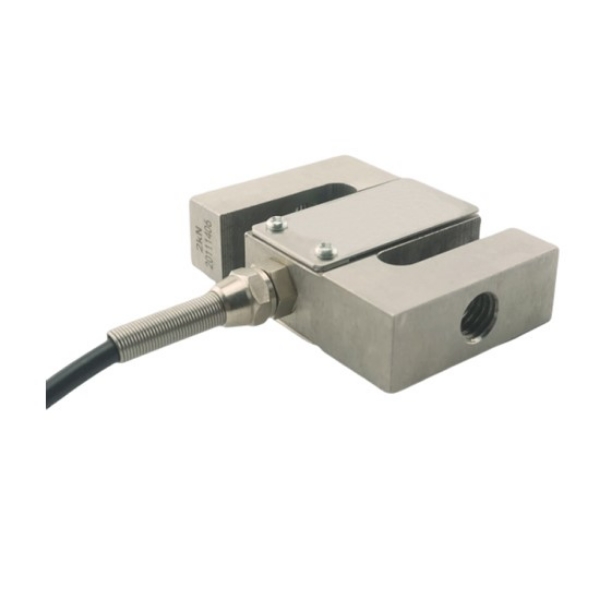

Buy an S type load cell capable of withstanding both tension and compression. Tension and compression load cell sensors are available in capacities ranging from 5kg, 50kg, 300kg, 1000kg, and 3 to 20 tons, with a sensitivity of 2.0 ± 0.1mV/V and a zero-point output of ±1%F.S. SUCH S type load cell for tension/compression offers symmetrical output, high accuracy, and a compact design. The load sensor can be used for measuring and controlling various forces in batching scales, electromechanical scales, crane scales, and other applications.

After purchasing one SUCH load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Feature

S-Type Sensor: Made from 42Cr alloy steel, it offers high strength and excellent fatigue resistance, capable of measuring both tension and compression.
High Precision Strain Gauge: Equipped with a high-quality strain gauge to simultaneously compensate for temperature and deflection, ensuring stable performance.
Waterproof Connector: Features a six-corner waterproof connector with an elastic sleeve to prevent cable pull-out and improve durability.
Standard Thread Holes: The S-type load cell is equipped with standard threaded holes on both ends to ensure easy and hassle-free installation.

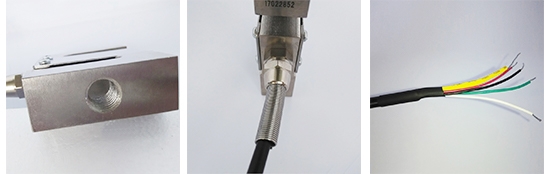

S type load cell for tension compression feature

Dimension (Unit:mm)

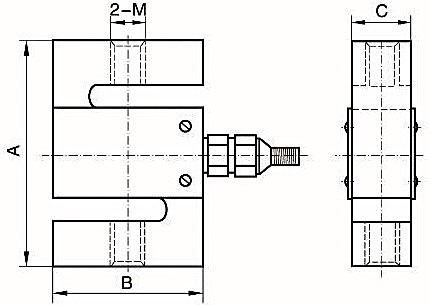

S type load cell for tension compression size

Capacity	Dimension (mm)
Capacity	A	B	C	M
5~50kg	64	51	12.7	M8
100~700kg	76	51	19.1	M12
1~1.5 ton	76	51	25.4	M12
2~5 ton	108	76	25.4	M20
7.5~10 ton	178	127	51	M30
20 ton	188	140	60	M36*3

Wiring

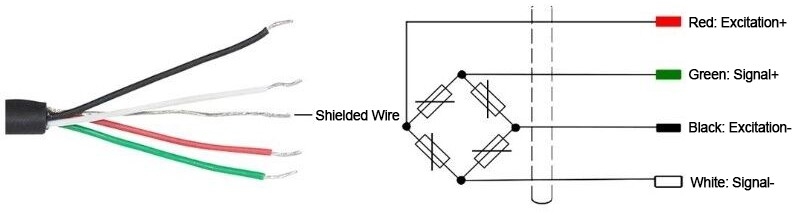

Wiring of load cell

Specs

Shipping Weight	2~15kg
Capacity Range *	5 kg~20 ton
Matched Display Controller	SUCH-LCDC-TY5DA3 (Click it to the controller page)
Matched Transmitter	SUCH-LCTR-NTB3K (Click it to the transmitter page)
Accuracy	0.02~0.03%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±0.1mV/V
Creep	±0.02~±0.03%F.S/30min
Zero Output	±1%F.S
Temperature Effect on Zero	±0.02~±0.03%F.S/10℃
Temperature Effect on Output	±0.02~±0.03%F.S/10℃
Operating Temperature	-20℃~+65℃
Input Impedance	380±10Ω
Output Impedance	350±3Ω
Insulation Resistance	≥5000MΩ
Safety Overload	150%F.S
Bridge Voltage (excitation voltage)	DC 10V
Material	Alloy steel (Stainless steel load cell can be customizable, contact us for further communication. MOQ: 5pcs)
Protection Class	IP67 (except 5 kg model)
Cable Length	3m (＜5 ton), 6m (≥5 ton)
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White
Accessories *	A pair of rings (only for capacity≤1000kg)

Application

Hopper Scale

Overhead Crane Scale

Automatic Weighing Machine

FAQ

Q1: How does a S type load cell sensor work? ❯

An S type load cell sensor works by converting the applied tensile or compressive force into an electrical signal. Strain gauges attached to the load cell deform under force, changing their resistance, which is then converted to a voltage signal proportional to the applied load.

Q2: How to mount an S type load cell? ❯

Mount the S type load cell by securing it between two surfaces so that the load is applied along the designated tension or compression axis. Ensure it is properly aligned and bolted according to specifications to avoid measurement errors.

Q3: How to check S type load cell? ❯

You can check an S-type load cell by connecting it to a load cell amplifier or digital indicator and applying known loads. Observe the output signal for accuracy and linearity.

1 review(s)

Write your own review Close

Review title: *

Review text: *

Rating:

1 2 3 4 5

From: Michael Anderson | Date: 6/26/2026 8:53 AM

s type load cell solid build for tension work

picked up an S Type Load Cell for a small tension test setup on a lifting rig. the s type load cell feels pretty solid in hand, nothing flimsy about it. installed it in about 20 minutes, wiring was straightforward. readings were stable even when the load wasn’t perfectly centered. used it a few times already, seems consistent so far, no weird drift or jumps.
