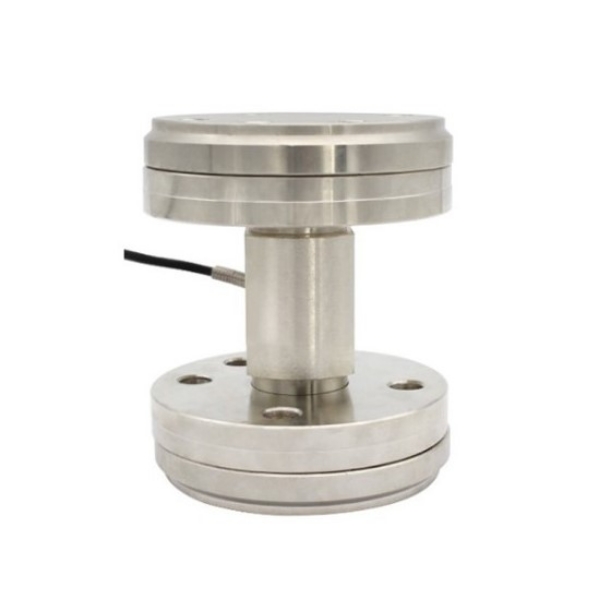

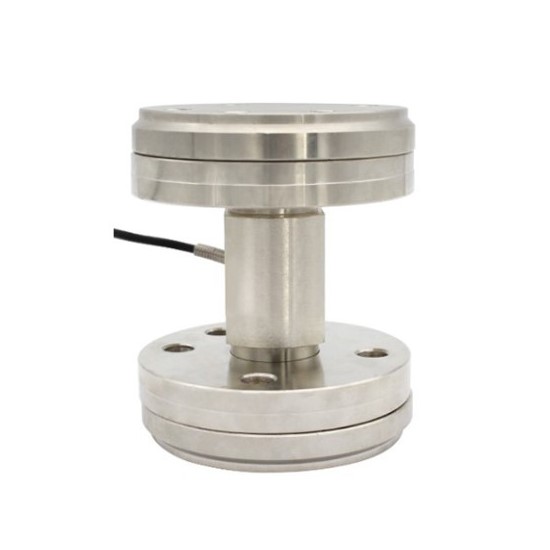

    Column Load Cell, Double Flange, 5 ton-30 ton

    1 review(s) | Add your review
    SKU: SUCH-LC-013
    $253.19
    ● Available ranges 5 ton/10 ton/20 ton/30 ton ● Dual flange construction ● Response frequency 10kHz ● Operating voltage 5-15V
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Double-flange column load cell can withstand loads of 5/10/20/30 tons. SUCH column load cell sensor offers a repeatability error of only 0.05% F.S, a response frequency of 10kHz, and supports a 5-15V operating voltage. High-quality 42CrMo alloy steel provides high strength, toughness, and long-lasting performance, ensuring ruggedness and stable operation in harsh environments.

    After purchasing one SUCH load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

    Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

    Feature

    • Double-flange structure: The column load cell features upper and lower flanges for quick and easy installation.
    • Hexagonal waterproof connector: Spring-loaded buffer prevents cable breakage, provides excellent corrosion resistance, and provides stable and anti-interference signals.
    • High-precision strain gauges: Excellent heat resistance, minimal creep, minimal thermal hysteresis, and excellent long-term stability.
    • Wide range of uses: Column load cells are very suitable for weighing measurements of various mixers, hoppers, silos, cement tanks, oil tanks, reactors and other equipment.

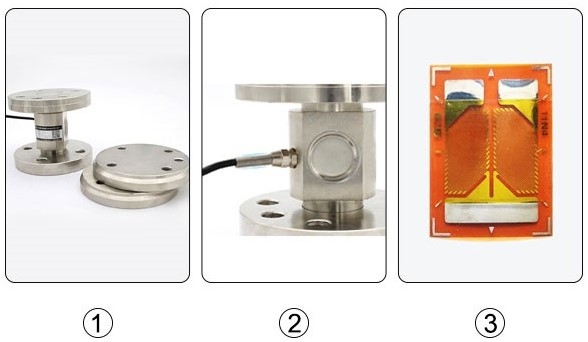

    Feature of column load cell

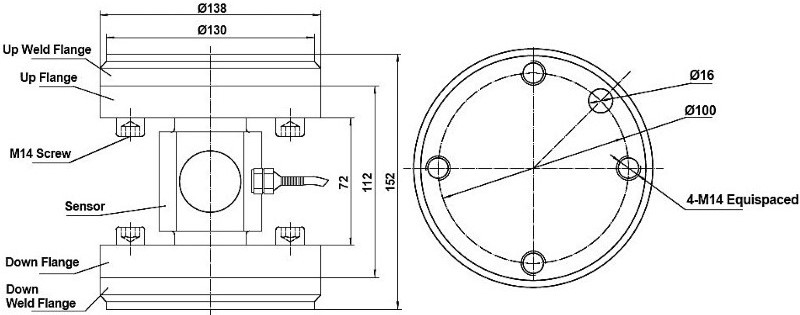

    Dimension (Unit:mm)

    Dimension of column load cell

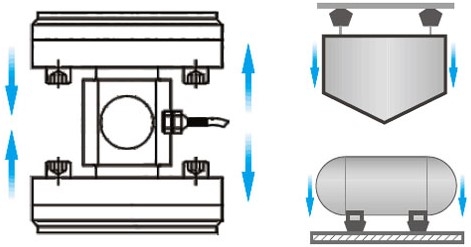

    Force Mode

    Force mode of column load cell

    Wiring

    Wiring of load cell

    Specs
    Capacity 5 ton/10 ton/20 ton/30 ton (optional)
    Matched Display Controller SUCH-LCDC-DY800 (Click it to the controller page)
    Matched Transmitter SUCH-LCTR-OA (Click it to the transmitter page)
    Rated Output 1.0-2.0±0.05%mV/V
    Zero Balance ±1%F.S.
    Non-Linearity 0.1%F.S.
    Hysteresis 0.1%F.S.
    Repeatability 0.05%F.S.
    Creep 0.05%F.S. (30min)
    Temp Effect on Output 0.05%F.S./10°C
    Temp Effect on Zero 0.05%F.S./10°C
    Response Frequency 10kHz
    Material Alloy steel
    Impedance 350Ω
    Insulation ≥5000MΩ/100VDC
    Operating Temp Range -20°C~80°C
    Operating Voltage Range 5-15V
    Safe Overload 1.5
    Maximum Overload 2
    Cable Specifications Φ5*3m
    Cable Ultimate Pull 10kg
    Net Weight < 2kg
    Application
    Weighing of silo

    Weighing of Silo

    Weighing of cement tank

    Weighing of Cement Tank

    Weighing of reactor

    Weighing of Reactor

    FAQ
    ❯

    The load cell is driven by an excitation voltage. An amplifier amplifies the millivolt signal to 0-5V or 4-20mA. The amplified analog signal is then converted to a digital signal and processed by a controller.

    ❯

    High load capacity, eccentric loading resistance, easy installation, shock resistance, and high stability.

    ❯
    • Power-off test: Ensure the EXC+ and EXC- resistances are within the normal range. Ensure the SIG+ and SIG- resistances are close to the input resistance. Ensure the insulation resistance between the lead and the housing is >20MΩ.
    • Power-on test: Ensure the excitation voltage is stable. The SIG+ and SIG- voltages are close to 0mV when unloaded and change linearly when loaded.
    1 review(s)
    5.0 1
    Write your own review Close
    *
    *
    Grant Pritchard | 10/13/2026 9:19 AM
    Can the column load cell connect to an existing PLC?
    I’m adding weighing capability to a material hopper and want to send the weight readings to an existing PLC. Can I connect this column load cell directly, or will I need another device to convert the signal?
    SUCH responded to this review
    The load cell outputs a low-level mV/V signal, so it needs a compatible transmitter to provide a standard signal such as 4–20 mA or 0–10 V for the PLC. Please share your required capacity and PLC input type, and we can help check the suitable configuration.
