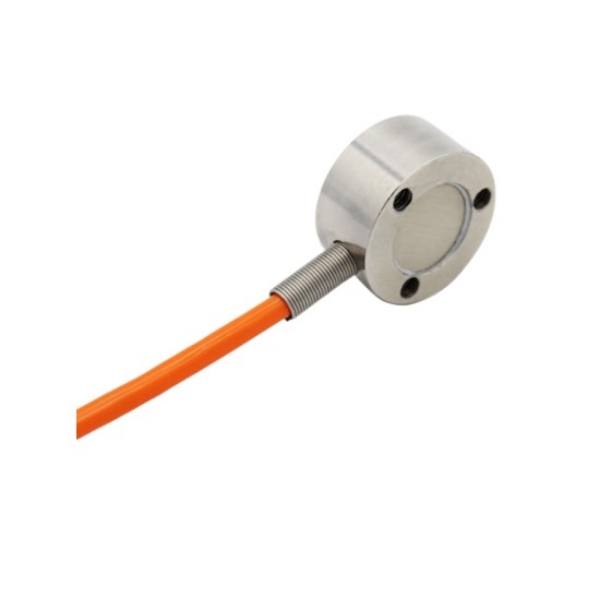

    Small Compression Load Cell, Button Type, 5kg-5 ton

    0 review(s) | Add your review
    SKU: SUCH-LC-BU05
    $114.55
    ● Measuring range 5kg-5 ton optional ● Button type, measures compression force ● Safe overload 150%, ultimate overload 200% ● Works at 5-10V voltage
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Factory price small compression load cell for sale, with optional capacities of 5kg, 10kg, 20kg, 30kg, 50kg, 100kg, 200kg, 300kg, 500kg, 1000kg, 2 tons, and 5 tons. Button-type compression load sensors have diameters ranging from 20mm to 37.7mm and heights from 12mm to 15.5mm. SUCH small compression load cell sensor offers long-term, stable measurements in compact sizes, making them suitable for applications where space is limited.

    After purchasing one SUCH load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

    Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

    Feature

    • Compact & Robust: Versatile, space-saving design with durable 17-4 PH stainless steel for seamless integration and lasting strength.
    • High Accuracy: Ensures precise and consistent measurements with a reliable sensing chip.
    • Reliable Performance: The small compression load cells are carefully designed to withstand harsh conditions while maintaining stability and long life.
    • Effortless Installation: Quick setup with high-quality wiring for secure and reliable signal transmission.

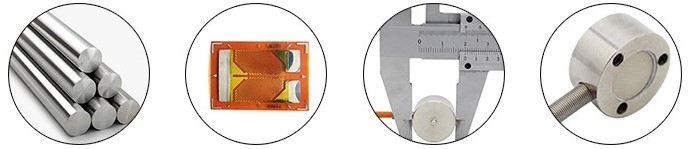

    Feature of small load cell

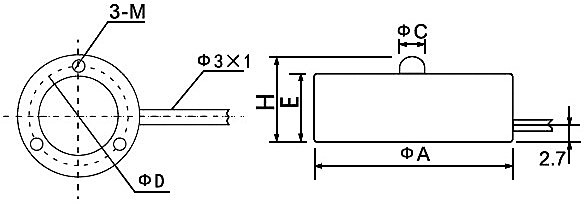

    Dimension (Unit:mm)

    Small load cell size

    Range Dimension (mm)
    ΦA ΦC ΦD H E M H1 SR
    5-200kg 20 2.5 15.5 12 10 M3 2.7 2
    300-1000kg 26 5 18.5 15 11.5 M4 3.5 6
    2 ton 30 6 20 18 14 M4 3.5 15
    3-5 ton 37.7 10.8 31 15.5 14 M2.5 3.5 50


    Wiring

    Wiring of load cell

    Specs
    Shipping Weight 1.5kg
    Capacity Range 5kg-5 ton (optional)
    Matched Display Controller SUCH-LCDC-LC5D (Click it to the controller page)
    Matched Transmitter SUCH-LCTR-OA (Click it to the transmitter page)
    Accuracy 0.3%F.S (linearity + hysteresis + repeatability)
    Sensitivity 2.0mV/V (Low range variations may differ)
    Creep ±0.05%F.S/30min
    Zero Output ±1%F.S
    Temperature Effect on Zero ±0.1%F.S/10℃
    Temperature Effect on Output ±0.1%F.S/10℃
    Operating Temperature -20℃~+80℃
    Input Impedance 700Ω
    Output Impedance 1000Ω
    Insulation Resistance ≥5000MΩ
    Safety Overload 150%F.S
    Bridge Voltage (excitation voltage) DC 5-10V
    Material Alloy steel or stainless steel
    Protection Class IP66
    Cable Length 2m
    Wiring EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White
    Application
    3C manufacturing

    3C Manufacturing

    Automated assembly

    Automated Assembly

    New energy equipment

    New Energy Equipment

    FAQ
    ❯

    A button load cell is a compact compression load cell, typically cylindrical or flat disc-shaped, designed to measure compressive forces.

    ❯

    Common load cell shapes include cylindrical, S-shaped, button-shaped, flat, annular, and multi-axis configurations. Different shapes accommodate different mounting methods and force measurement requirements.

    ❯

    Small load cells are small and lightweight, making them suitable for space-constrained or precision measurement applications. They also offer fast response speeds and high sensitivity. In contrast, standard load cells are typically larger and have higher load capacities, but they also require more space and installation space, making them suitable for industrial heavy load measurement.
