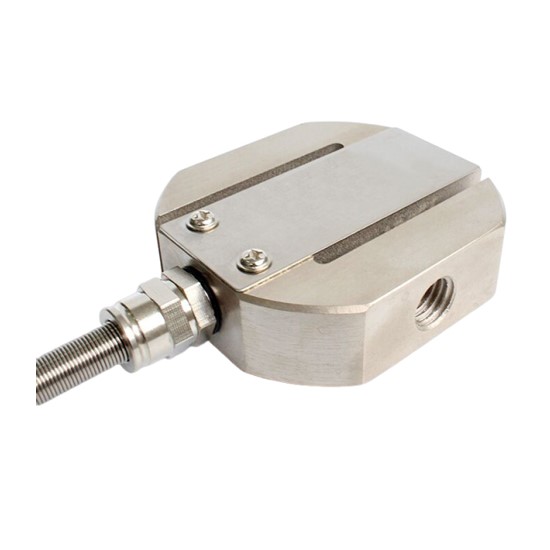

    S Shaped Load Cell, 1kg-7 ton

    0 review(s) | Add your review
    SKU: SUCH-LC-S02
    $82.59
    ● Optional capacities range from 1kg to 7 ton ● Support tension and compression measurements ● 150% F.S. safety overload ● Excitation voltage 5-15V, DC 10V recommended
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    S shaped load cells for sale, measuring range from 1kg, 5kg, 20kg, 30kg, 100kg, 500kg, 1 ton to 7 tons. SUCH S shaped load cells can withstand both tension and compression, feature overload protection, and offer symmetrical output, high accuracy, and are compact and easy to install. S shaped load cell sensors are widely used for force measurement and control in industrial systems, such as batching scales, electromechanical scales, crane scales, and automatic weighing machines.

    After purchasing one SUCH load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

    Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

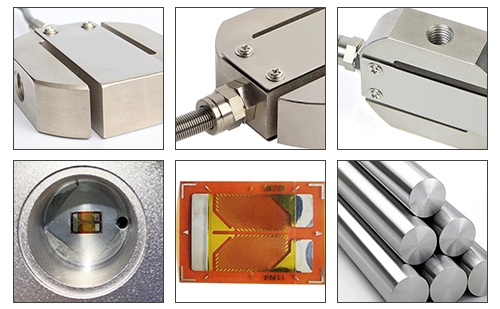

    Feature

    • Durable Alloy Steel: Made of 42CrMo alloy steel, it offers high strength, corrosion resistance, and durability.
    • Tension and Compression Measurements: S shaped load cells support tension and compression measurements, making them suitable for a wide range of applications.
    • High-precision Strain Gauges: Excellent heat resistance and minimal creep ensure long-term stable and reliable performance and accuracy.
    • Waterproof Connector: The hexagonal waterproof connector prevents cable unplugging and ensures stable data transmission.
    • Easy Installation: Standard threaded holes and a rational structural design enable simple installation and wide system compatibility.
    • Wide Applications: The S-shaped load sensor is ideal for force measurement and weighing systems in industrial automation.
    • Protective Cover: Waterproof and dustproof, it plays an important role in protecting the new body and ensures normal operation in harsh environments.

    S shaped load cell feature

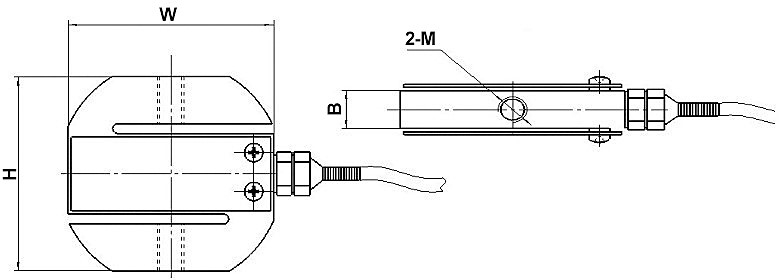

    Dimension (Unit:mm)

    S shaped load cell size

    Capacity Dimension (mm)
    W H B M1
    0~1kg 60 58 12 M6*1.25
    2~30kg 60 58 12 M8*1.25
    50~200kg 70 64 20 M12*1.75
    300~500kg 70 64 20 M12*1.75
    1 ton 70 64 25 M16*2
    2~7 ton 84 92 32 M20*2.5

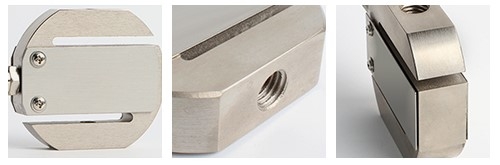

    Detail

    S shaped load cell detail

    Force Mode

    S shaped load cell force mode

    Wiring

    Wiring of load cell

    Specs
    Shipping Weight 1~2kg
    Capacity Range * 1~500kg, 1~7 ton
    Matched Display Controller SUCH-LCDC-LC5D (Click it to the controller page)
    Matched Transmitter SUCH-LCTR-OA (Click it to the transmitter page)
    Accuracy 0.03%F.S (linearity + hysteresis + repeatability)
    Sensitivity 2.0±0.05mV/V (Low range variations may differ)
    Creep ±0.03%F.S/30min
    Zero Output ±1%F.S
    Temperature Effect on Zero ±0.03%F.S/10℃
    Temperature Effect on Output ±0.03%F.S/10℃
    Operating Temperature -20℃~+65℃ (-4℉~+149℉)
    Input Impedance 350±20Ω
    Output Impedance 350±5Ω
    Insulation Resistance ≥5000MΩ
    Safety Overload 150%F.S
    Bridge Voltage (excitation voltage) DC 5-15V, suggest DC 10V
    Material Alloy steel
    Protection Class IP67
    Cable Length 2m (＜5ton), 5m (≥5ton)
    Wiring EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White
    Application

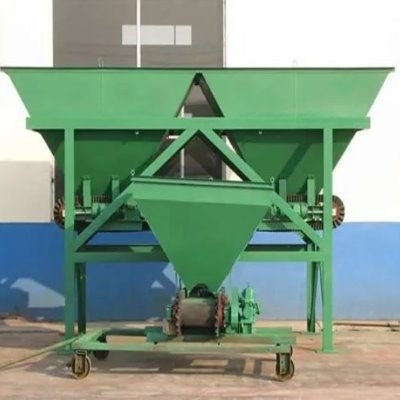

    Hopper Scale

    Hopper Scale

    Overhead Crane Scale

    Overhead Crane Scale

    Automatic Weighing Machine

    Automatic Weighing Machine

    FAQ
    ❯

    The S shaped load cell is a sensor used to measure tension and compression. It uses internal strain gauges to convert the force applied to the sensor into a measurable electrical signal, achieving high-precision force measurement.

    ❯

    Compared to conventional column or plate load cells, S-shaped weigh cells can measure both tension and compression. They offer flexible installation and take up minimal space, making them suitable for hanging, hoisting, or bidirectional tension and compression measurements. Conventional load cells, on the other hand, are typically only capable of compression or unidirectional force and require a relatively fixed installation.

    ❯

    When maintaining an S shaped load cell, avoid overloading and excessive vibration, regularly inspect the connecting cables and connectors, and keep the sensor surface clean and dry to prevent corrosion or mechanical damage. Regular calibration is also recommended to ensure long-term measurement accuracy and stability.
