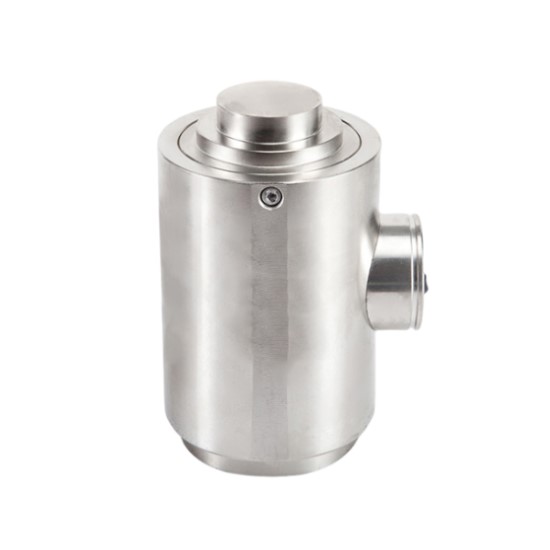

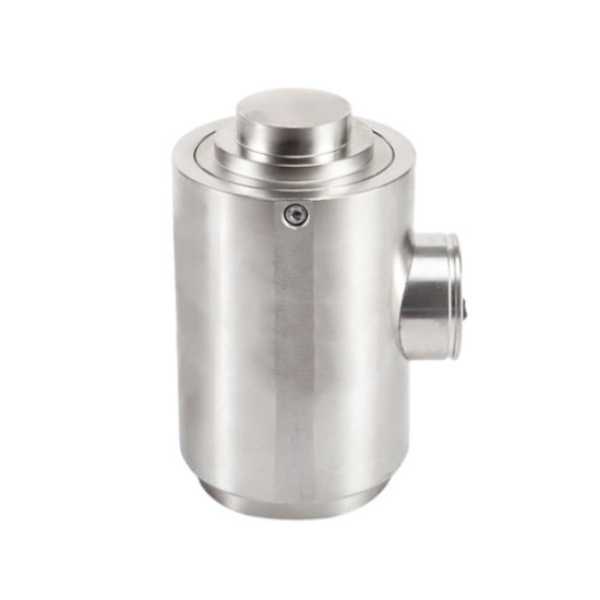

Compression Load Cell, Column Type, 20 ton-200 ton

0 review(s) | Add your review

SKU: SUCH-LC-C01

$263.17

● Optional range 20 ton to 200 ton ● 150% F.S safe overload ● Recommended 10V DC bridge voltage ● Column-type structure, 42CrMo alloy steel

Capacity *
With Transmitter *
With Display Controller *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

High-quality compression load cells for sale online, with measuring ranges of 20 ton, 30 ton, 50 ton,100 ton, 150 ton and 200 ton available. SUCH compression weigh cell features a columnar design and a 10V DC power supply. The column type load cell offers strong resistance to mechanical fatigue and overload, and can operate in temperatures ranging from -20℃~+65℃. SUCH compression load cells are widely used in large-tonnage measurement equipment, such as pharmaceuticals and chemicals, coal and metallurgy, electronic truck scales, railroad scales, warehouse scales, and tanks.

After purchasing one SUCH load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Feature

Made of 42CrMo alloy, these compression load cells feature a columnar design, offering strong resistance to mechanical fatigue and a high load capacity.
Compression load cell sensors are meticulously crafted using advanced grinding technology, resulting in a smooth, precise design and efficient installation.
The column-type compression load cells offer stable output, reliable signal transmission, and strong anti-interference capabilities, ensuring high measurement accuracy.

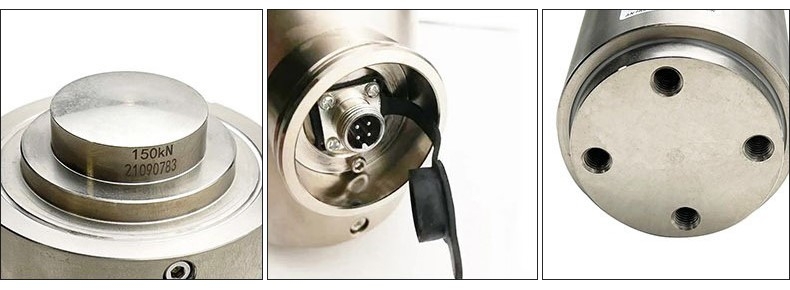

Feature of column type load cell

Dimension (Unit:mm)

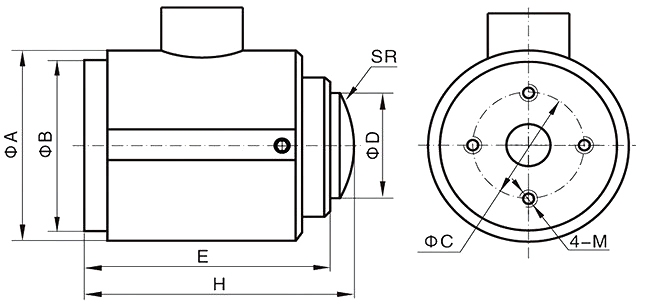

Size of column type load cell

Rang	Dimension (mm)
Rang	ΦA	ΦB	ΦC	ΦD	H	E	M	SR
15~30 ton	86	73.5	56	40	140	129	10	200
40~60 ton	100	87	68	80	150	133	12	350
100 ton	107	91	68	80	150	156	16	500
150~200 ton	158	139	100	120	220	201	16	1000

Wiring

Wiring of load cell

Specs

Shipping Weight	7.4~33.8kg
Capacity Range *	20 ton~200 ton
Matched Display Controller	SUCH-LCDC-TY5DA3 (Click it to the controller page)
Matched Transmitter	SUCH-LCTR-NTB3K (Click it to the transmitter page)
Accuracy	0.05~0.1%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±0.1mV/V
Creep	±0.05%F.S/30min
Zero Output	±1%F.S
Temperature Effect on Zero	±0.03%F.S/10℃
Temperature Effect on Output	±0.03%F.S/10℃
Operating Temperature	-20℃~+65℃
Input Impedance	380±10Ω
Output Impedance	350±3Ω
Insulation Resistance	≥5000MΩ
Safety Overload	150%F.S
Bridge Voltage (excitation voltage)	DC 10V
Material	Alloy steel
Protection Class	IP67
Cable Length	6m for capacity ≥ 5 ton, with aviation plug 3m for capacity < 5 ton, with aviation plug
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

Application

Weighing of Silo

Weighing of Cement Tank

Weighing of Reactor
