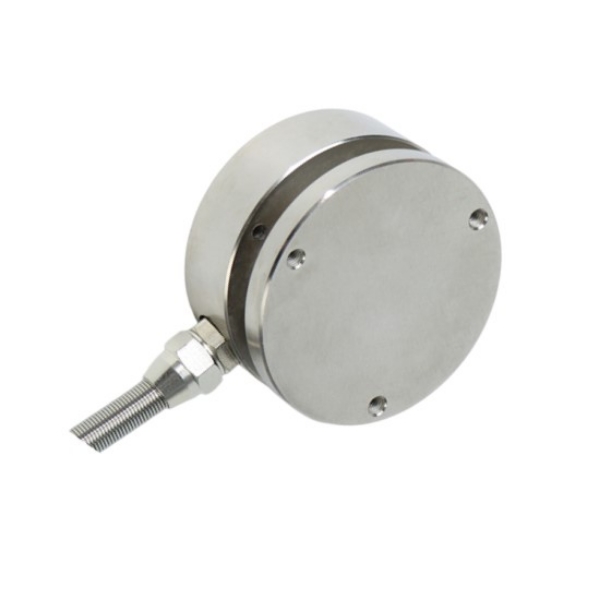

Flat Load Cell, Diaphragm Type, 50kg-10 ton

0 review(s) | Add your review

SKU: SUCH-LC-102

$142.69

● Capacity ranges from 50kg to 10 tons ● 42CrMo alloy steel material ● Operating voltage 5-15V ● Insulation resistance≥5000MΩ/100VDC

Capacity *
With Transmitter *
With Display Controller *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Flat load cells are designed for high-performance weighing systems and are available in capacities ranging from 50kg/100kg/200kg/300kg/500kg/1 ton/2 ton to 10 ton. Made of high-quality alloy steel, SUCH flat load cell features a diaphragm-type integrated design, a large load-bearing area, a 10kHz response frequency, and a creep error of only 0.1%F.S. Flat load cell sensors offer stable and reliable performance and are suitable for force measurement and weighing in various industrial automation and control systems.

After purchasing one SUCH load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The force sensor cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Feature

High-quality Alloy Steel: 42CrMo high-strength alloy steel with good hardenability and strong resistance to mechanical fatigue.
Precision Waterproof Connector: 6 angle waterproof connector with spring buffer to prevent wire pulling and breaking.
Industrial High Precision Strain Gauge: Small thermal hysteresis, good heat resistance, small creep, good stability in long-term use.
Planar Structure: The flat load sensor provides a variety of sizes and ranges for selection, with a wide range of applications and high measuring accuracy and good shock resistance.

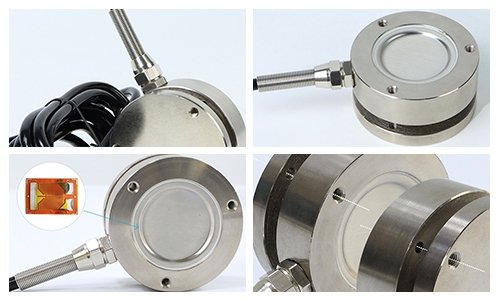

Flat load cell feature

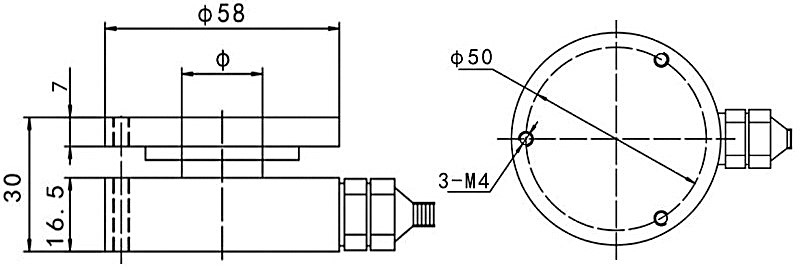

Dimension (Unit:mm)

Flat load cell size

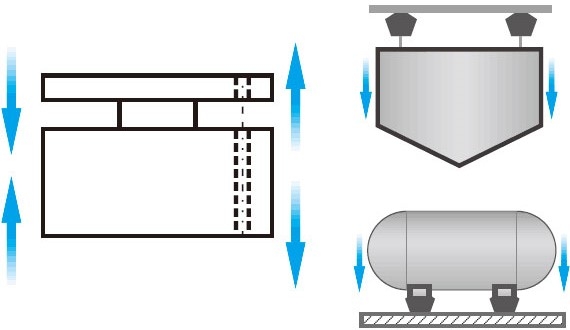

Force Mode

Flat load cell force mode

Wiring

Wiring of load cell

Specs

Capacity Rang	0-50kg/100kg/200kg/300kg/500kg/1 ton/2 ton/3 ton/5 ton/10 ton (optional)
Matched Display Controller	SUCH-LCDC-DY800 (Click it to the controller page)
Matched Transmitter	SUCH-LCTR-OA (Click it to the transmitter page)
Rated Output	1.0-2.0±0.05mV/V
Zero Balance	±2%F.S.
Non-Linearity	0.5%F.S.
Hysteresis	0.1%F.S.
Repeatability	0.1%F.S.
Creep	0.1%F.S. (30min)
Temp Effect on Output	0.05%F.S./10°C
Temp Effect on Zero	0.05%F.S./10°C
Response frequency	10kHz
Material	Alloy steel
Impedance	700Ω
Insulation	≥5000MΩ/100VDC
Working Voltage	5-15V
Operating Temp Range	-20°C~80°C
Safe Overload	1.5
Maximum Overload	2
Cable Specifications	Φ5*2m
Cable Ultimate Pull	10kg

Application

Packaging

Logistics

Ingredients System

FAQ

Q1: Can flat load cells measure both static and dynamic loads? ❯

Yes, flat load cells can measure both static and dynamic loads.

Q2: What applications are flat load cells commonly used for? ❯

Force measurement and weight detection in automation equipment, packaging machinery, and medical devices.

Q3: What precautions should be taken when using a flat load cell? ❯

When using a flat load cell, ensure that the mounting surface is flat and stable to prevent eccentric loads or lateral forces from affecting measurement accuracy. Be careful to prevent overloading and maintain a clean environment to prevent dust or moisture from infiltrating and affecting signal stability.
