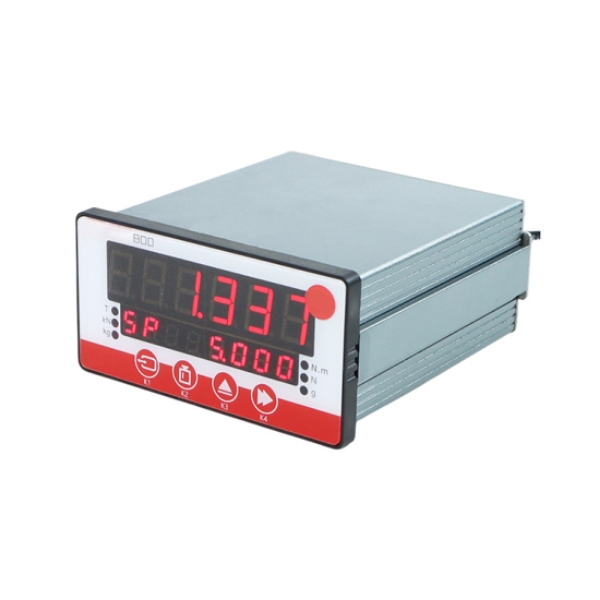

    Picture of Display Controller for Load Cells, 6 Digit Picture of Display Controller for Load Cells, 6 Digit Picture of Display Controller for Load Cells, 6 Digit

    Display Controller for Load Cells, 6 Digit

    0 review(s) | Add your review
    SKU: SUCH-LCDC-DY800
    $327.09
    ● Power supply voltage 10-30V DC/ 80-265V AC ● Measurement accuracy <0.01% ● Measuring speed 5-320Hz ● Working temperature -20~70℃
    *
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    The SUCH display controller is a device used to control and drive a six-digit display unit for use with load cells, force sensors, and load cells. The 6 digit display controller features a 4-20mA or 0-10V output signal. This digital panel meter displays gross, net, peak, and valley values alternately. Software is included with the RS485 communication cable to enable data logging on a PC.

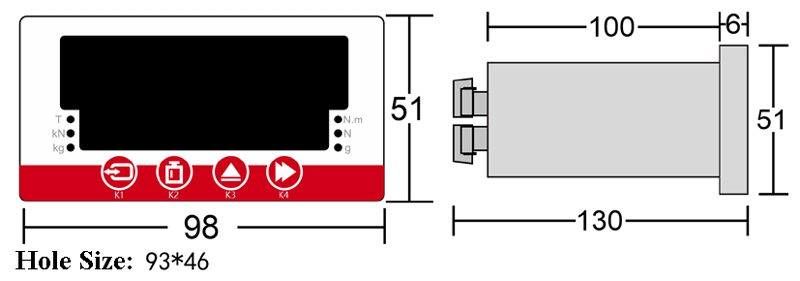

    Dimension (Unit:mm)

    6 digit display controller size

    Key Description

    key K1 K2 K3 K4
    Key Frame Long press to enter parameter modification Long press to enter calibration Page turning Long press to press the zero clearance
    Parameter Modification Save and go to the next parameter Quit Add Right shift
    Demarcate Out Calibration factor / Clear
    Interface Testing Select next function Out Output modification Select
    Specs
    Power Supply Voltage 10-30V DC/ 80-265V AC
    Measurement Accuracy <0.01%
    Measuring Speed 5-320Hz
    Temperature Drift <10ppm
    Display Scale -99999~999999
    Transmission Output 0~10V, 4-20mA
    Communication Rate 2400~115200
    Switch Output 6-way relay normally open node output
    Switch Input 2-way open input
    Node Drive Capability 3A/250V AC or 30V DC (resistive load)
    Measurement Channel 5V power supply
    Working Environment -20~70℃
    Relative Humidity <90% (no condensation)
    Note You can use software + RS485 communication cable to log/record the data on a PC
    Application
    Packaging

    Packaging

    Logistics

    Logistics

    Ingredients System

    Ingredients System

    FAQ
    ❯

    A 6 digit display controller is an electronic device that receives signals from load cells and converts them into readable weight or force values on a digital display. The six-digit display allows for precise measurements and high resolution.

    ❯
    • The load cell generates a small electrical signal proportional to the applied weight or force.
    • The controller amplifies, filters, and converts this signal into a digital format.
    • The processed data is then displayed on the 6-digit screen, providing accurate weight or force readings.
    ❯
    • High resolution and precise measurement display.
    • Easy-to-read numeric output.
    • Can support multiple load cells in parallel for combined weighing.
    • Often comes with features like tare, zeroing, calibration, and unit conversion. Improves the accuracy and usability of load cell systems.
