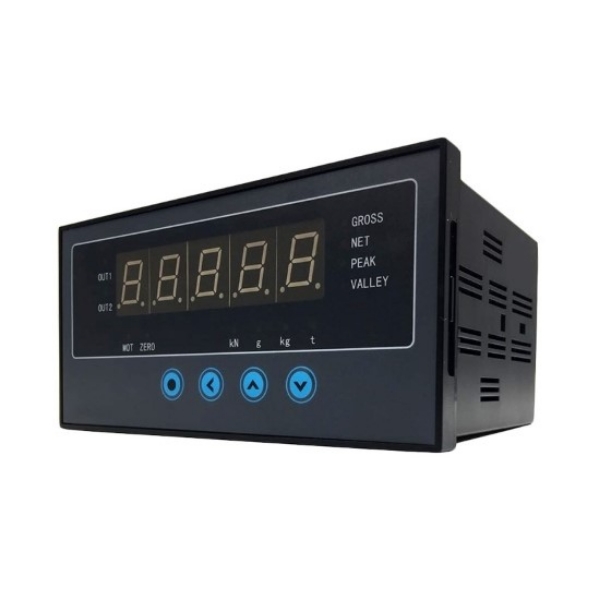

Display Controller for Load Cells, 5 Digit

A display controller primarily receives the signal output from a load cell, amplifies, processes, and digitally displays the weight or force data, allowing users to intuitively read the measurement results. It also provides functions such as alarms, counting, and data logging. It is widely used in scenarios such as industrial weighing, automated inspection, and laboratory testing.

Calibration typically requires using a known standard weight or force value. Entering the standard value through the controller's calibration function adjusts the display reading to align with the actual weight. The calibration process includes zero-point calibration and full-scale calibration, and can be repeated multiple times as necessary to improve accuracy.

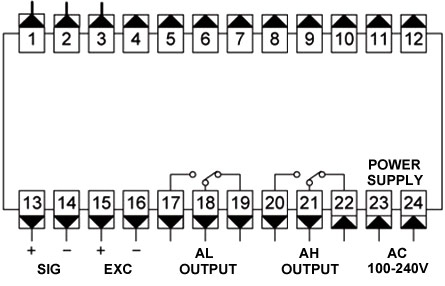

First, determine the sensor's output type. Then, connect the sensor's power, signal, and ground wires to the controller's wiring ports, ensuring correct polarity. Once connected, use the controller menu to set the input type, range, and filtering parameters to ensure proper and stable signal display.
