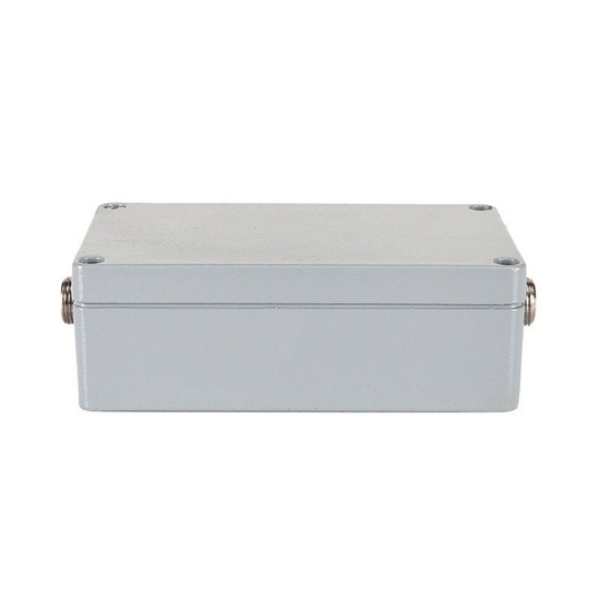

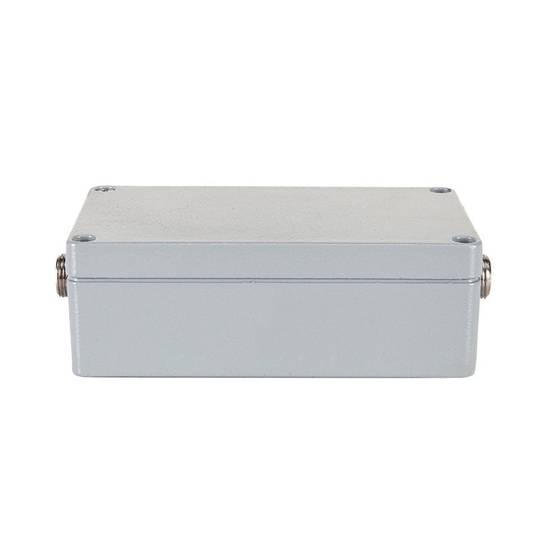

Load Cell Weight Transmitter, 0-5V/0-10V/4-20mA Output

SKU: SUCH-LCTR-NTB3K
$123.87
● Output 0-5V/0-10V/0-±5V/0-±10V/4-20mA ● Rated input ±20mA ● Accuracy ≤0.1%F.S ● Supply voltage 10-36V DC
*
*
*
🚚 Free shipping
🕒 Delivery date: 6-12 days
🔁 30-day Returns
Overview

This affordable price load cell weight transmitter converts load cell analog signals into standard analog signals such as 0-5V/0-10V/0-±5V/0-±10V/4-20mA for control output. SUCH load cell weight transmitter features IP65 protection, a 10-36VDC supply voltage, and a compact and lightweight design, making it easy to integrate into automation systems.

Note: Manual calibration is not supported. Please provide the load cell's capacity and sensitivity for factory calibration. This transmitter only supports fine adjustment.

Feature

  • The precision die-cast aluminum transmitter housing with a plastic-sprayed finish is suitable for high precision and harsh environments.
  • The load cell transmitter utilizes anti-interference power supply design technology, ensuring excellent electromagnetic compatibility (EMS).
  • The load cell weight transmitter offers analog output options of 0-5V, 0-10V, 0-±5V, 0-±10V, and 4-20mA (optional).
  • Wiring utilizes terminal blocks and aviation plugs, and the housing features mounting holes. In addition to maintaining the characteristics of standard load cell transmitters, it also reduces harmonic interference generated by frequency converters and other sources.

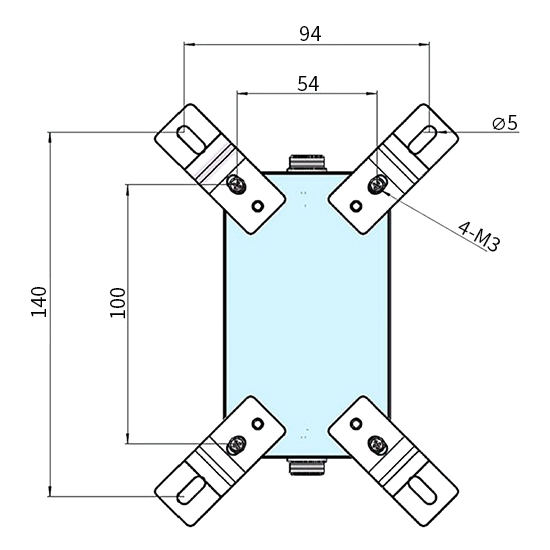

Dimension (Unit:mm)

Load cell weight transmitter size

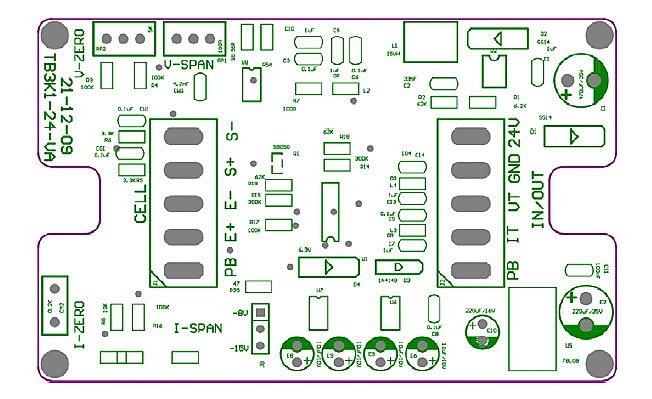

Wiring

Load cell weight transmitter wiring

As the figure above shows: There are two wiring terminals J1 and J2 in the whole board diagram.

LEFT J1 is the terminal connecting the sensor:

PB Connect the sensor shielded wire blue wire
E+ Connect the positive wire of the sensor excitation power supply red wire
E- Connect the negative wire of the sensor excitation power supply black wire
S+ Connect the positive wire of the sensor signal output green wire
S- Connect the negative wire of the sensor signal output white wire

RlGHT J2 is the terminal connecting the transmitter to the power supply and output:

IOUT Connect the transmitter current output positive wire white wire
VOUT Connect the positive voltage output wire of the transmitter white wire
(current and voltage are only output at the same time)
GND Connect the negative wire of the transmitter power supply blue wire
24V Connect the positive wire of the transmitter power supply red wire

There are 2 adjustable resistors in the whole board diagram: RP2 is gain adjustment, RP1 is voltage zero adjustment.

Specs
Rated Input ±20mV
Single Output (optional) V1: 0~5V
V2: 0~10V
V3: 0~±5V
V4: 0~±10V
A1: 4~20mA
Channel Single channel
Precision ≤±0.1%F-S
Supply Voltage 10 (12) ~36V DC
Working Temperature -20°C~70°C
Protection Level IP65
Size 110*64*37mm
Net Weight ≤0.5kg
Application
Packaging

Packaging

Logistics

Logistics

Ingredients System

Ingredients System

FAQ


The load cell weight transmitter ensures precise signal conditioning, reduces noise, enables long-distance transmission, and simplifies integration with PLCs, controllers, or SCADA systems.



Wiring involves connecting the load cell's excitation, signal, and sense wires to the transmitter's input terminals, then connecting the transmitter's output to the control system.



Load cell weight transmitters are used in industrial weighing systems, batching, material handling, process automation, and tank or silo monitoring.
