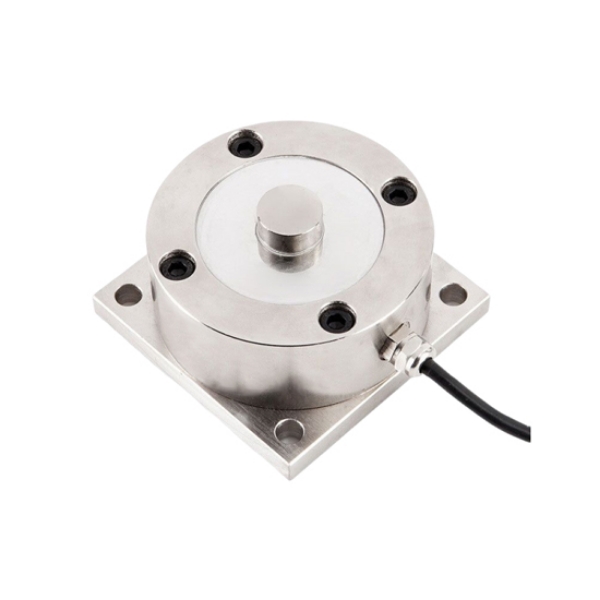

    Compression Type Load Cell, 300kg-100 ton

    1 review(s) | Add your review
    SKU: SUCH-LC-P01
    $116.78
    ● Measuring range 300kg to 100 ton optional ● Accuracy 0.03% F.S, sensitivity 2.0 mV/V ● Recommended bridge voltage 10 V DC ● Made of alloy steel or stainless steel, IP67 protection grade
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    The high-quality compression type load cell is specifically designed for weight measurement. SUCH compression type load cell sensors offer a wide range of measurement options, including 0-300kg/500kg/1 ton/2 ton/5 ton/7 ton/10 ton/20 ton/25 ton/30 ton/50 ton/60 ton/100 ton. Made of alloy steel or stainless steel, the compression load cell offers excellent long-term stability and high sensitivity, making it suitable for various electronic weighing equipment, including conveyor belt scales, hopper scales, warehouse scales, and tank scales.

    After purchasing one SUCH load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

    Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

    Feature

    • 42CrMo Alloy Material: This alloy offers a low profile and excellent rigidity. It offers excellent mechanical fatigue resistance, high load capacity, and a wide range of applications, ensuring safety and reliability.
    • High Measurement Accuracy: Stable output and reliable signal transmission, coupled with strong anti-interference capabilities, ensure precise and accurate measurements.
    • High Workmanship: The compression type weigh cell utilizes advanced grinding technology. The smooth and flat design allows for easy connection with dual-threaded ends, ensuring easy and efficient installation.

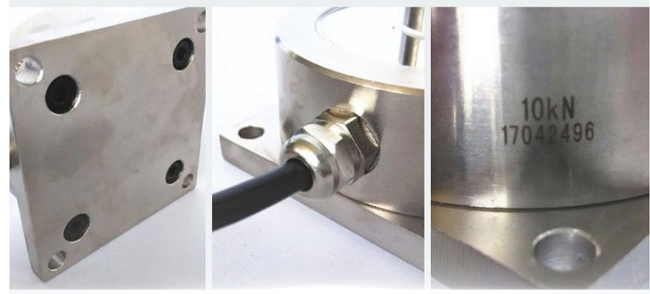

    Compression type load cell feature

    Dimension (Unit:mm)

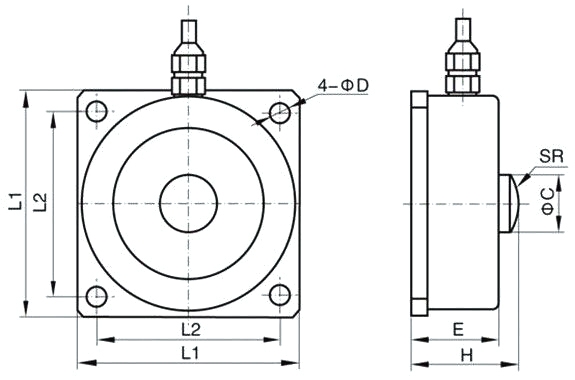

    Compression type load cell size

    Capacity Dimension (mm)
    L1 L2 ΦC ΦD H E SR
    300~1000kg 74 62 16 6.5 41 33 52
    2~7ton 90 73 20 8.5 53.5 44 70
    10~25 ton 116 96 30 11 82 70 91
    30~50 ton 132 108 38 13 97 85 120
    100 ton 240 190 76 26 125 112 200


    Wiring

    Wiring of load cell

    Specs
    Shipping Weight 1.5~31kg
    Capacity Range * 300 kg~100 ton
    Matched Display Controller SUCH-LCDC-TY5DA3 (Click it to the controller page)
    Matched Transmitter SUCH-LCTR-NTB3K (Click it to the transmitter page)
    Accuracy 0.03%F.S (linearity + hysteresis + repeatability)
    Sensitivity 2.0±0.1mV/V
    Creep ±0.03%F.S/30min
    Zero Output ±1%F.S
    Temperature Effect on Zero ±0.03%F.S/10℃
    Temperature Effect on Output ±0.03%F.S/10℃
    Operating Temperature -20℃~+65℃
    Input Impedance 380±10Ω or 750±15Ω
    Output Impedance 350±3Ω or 700±5Ω
    Insulation Resistance ≥5000MΩ
    Safety Overload 150%F.S
    Bridge Voltage (excitation voltage) DC 10V
    Material Alloy steel or stainless steel
    Protection Class IP67
    Cable Length 3m (＜5 ton), 6m (≥5 ton)
    Wiring EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White
    Application
    Concrete mixing plant

    Concrete Mixing Plant

    Parts pressing

    Parts Pressing

    Floor scale

    Floor Scale

    FAQ
    ❯

    A compression load cell is a force sensor used to measure compressive forces. It works by converting an applied compressive load into an electrical signal, typically using strain gauge technology.

    ❯

    When compressive force is applied, the strain gauge inside the load cell deforms. This deformation changes its electrical resistance. This change in resistance is converted into an electrical output signal proportional to the applied force.

    ❯

    High accuracy and stability. Simple, robust structure with long service life. Suitable for measuring large loads. Compact design for easy integration into machinery.

    1 review(s)
    5.0 1
    Write your own review Close
    *
    *
    Anders | 5/15/2026 5:53 AM
    Decent compression type load cell, straightforward swap
    Swapped in this compression type load cell for a clogged silo scale in FL. The threading and mount matched up perfectly, so the whole process was pretty straightforward. Been running 24/7 under heavy vibration, still rock steady. Arrived a day early too. Nothing fancy, but it gets the job done without any hassle.
