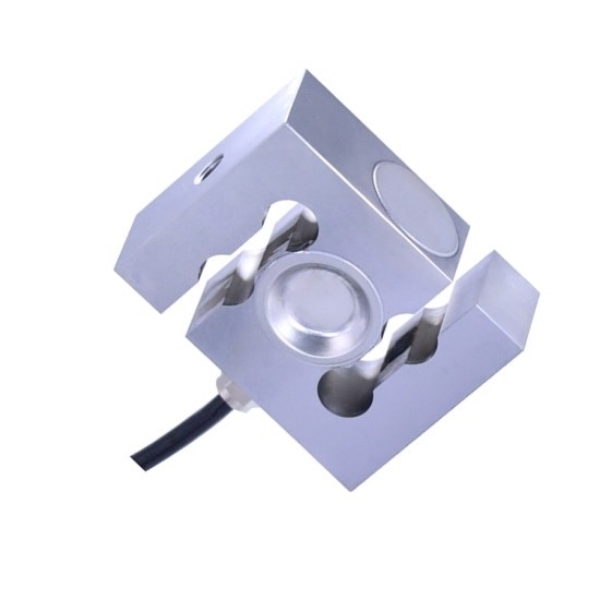

    Tension and Compression Load Cell, S Type, 200kg-5 ton

    0 review(s) | Add your review
    SKU: SUCH-LC-TSH
    $153.96
    ● Optional measuring range 200 kg to 5 tons ● Measures tension and compression ● S-shaped structure, stainless steel ● Sensitivity 2.0-3.0 ±10% mV/V
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Good price S type tension and compression load cells for sale, with optional measuring ranges 200kg/300kg/500kg/1 ton/2 ton/3 ton/5 ton. Made of durable, high-quality stainless steel, these tension and compression load cell sensors offer a sensitivity range of 2.0-3.0 ±10% mV/V and a response frequency of 1kHz, providing accurate measurements even under harsh conditions. SUCH S type tension and compression load cells offer high accuracy, repeatability, and temperature sensitivity. They operate in a 5-15V voltage range, offer long-term stability, and have a 200% overload limit.

    After purchasing one SUCH load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

    Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

    Feature

    • High Quality and High Precision: Suitable for both tension and compression applications, they offer superior nonlinearity, hysteresis, and creep performance, as well as long-term stability.
    • Rugged and Durable: The S-type weigh cells are made of high-quality stainless steel, sealed with continuous laser welding, and have an IP68 protection rating.
    • Wide Applications: With a maximum measuring range of 200kg-5t, they are suitable for industrial crane scales, belt scales, and batching control systems.

    Dimension (Unit:mm)

    Tension and compression load cell dimension

    Capacity A (mm) B (mm) C (mm) D (mm) E (mm)
    200kg-1 ton M10*1 62 80 32.5 30
    2 ton M16*1.5 71 90 40 45
    3 ton M18*1.5 80 100 41.5 50
    5 ton M20*2 92 130 57.5 58


    Force Mode

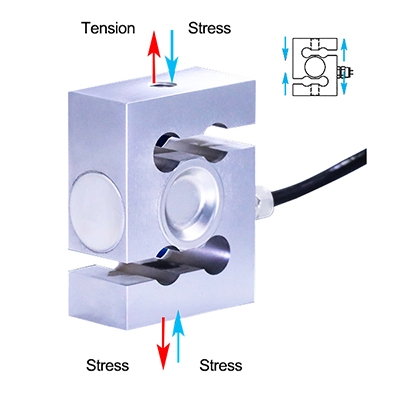

    Tension and compression load cell force mode

    Wiring

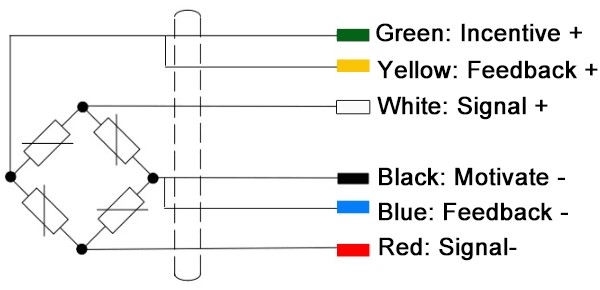

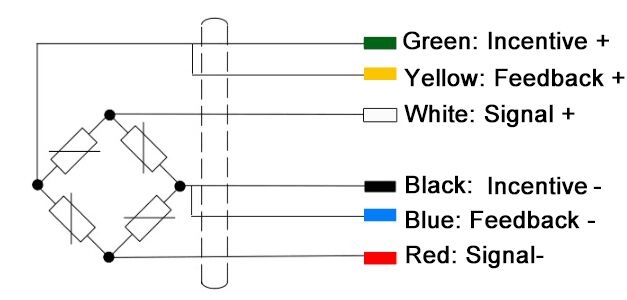

    Tension and compression load cell wiring

    Specs
    Capacity 200kg/300kg/500kg/1 ton/2 ton/3 ton (optional)
    Matched Display Controller SUCH-LCDC-DY800 (Click it to the controller page)
    Matched Transmitter SUCH-LCTR-OA (Click it to the transmitter page)
    Output Sensitivity 2.0~3.0 ±10% mV/V
    Zero Output ±1%F.S.
    Non-linearity 0.03 %F.S.
    Hysteresis 0.03 %F.S.
    Repeatability 0.03 %F.S.
    Creep 0.05 %F.S. (30 min)
    Temperature Sensitivity Drift 0.03 %F.S./10°C
    Zero Temperature Drift 0.05 %F.S./10°C
    Response Frequency 1k Hz
    Material Stainless steel
    Resistance 350 Ω
    Insulation Resistance ≥5000 MΩ/100V DC
    Operating Voltage 5~15 V
    Operating Temperature Range -20°C~80°C
    Safety Overload 150 %R.C.
    Limit Overload 200 %R.C.
    Cable Wire Specification φ5*6m
    Ultimate Cable Pull 98 N
    Application
    Hopper Scale

    Hopper Scale

    Overhead Crane Scale

    Overhead Crane Scale

    Automatic Weighing Machine

    Automatic Weighing Machine

    FAQ
    ❯

    A tension and compression load cell is a weigh load sensor designed to measure both pulling and pushing forces. It converts the applied force into an electrical signal, making it useful for applications requiring bi-directional force measurement.

    ❯
    • Compression load: A force that pushes or squeezes an object, reducing its length.
    • Tension load: A force that pulls or stretches an object, increasing its length.
    ❯

    Ensure proper alignment, avoid side loads, and use suitable mounting hardware to achieve stable measurements.
