    Find a Sensor A - Z
    Picture of S Beam Load Cell, 50kg-5 ton Picture of S Beam Load Cell, 50kg-5 ton Picture of S Beam Load Cell, 50kg-5 ton Picture of S Beam Load Cell, 50kg-5 ton Picture of S Beam Load Cell, 50kg-5 ton

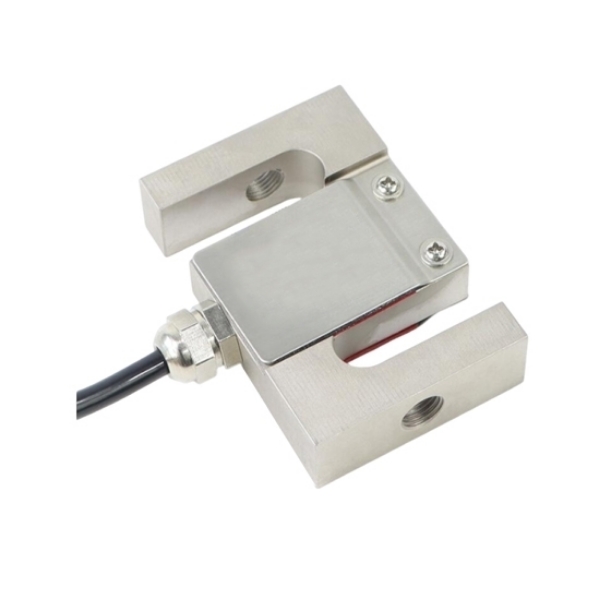

    S Beam Load Cell, 50kg-5 ton

    1 review(s) | Add your review
    SKU: SUCH-LC-TSC
    $89.99
    ● Capacity range 50kg-5 ton ● S-beam structure, alloy steel construction. ● Safe overload 150% F.S, ultimate overload 300% F.S ● Output sensitivity 2.0-3.0±10% mV/V
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    High-quality S beam load cells for sale. These S-type load cells offer different measuring ranges 0-50kg/100kg/200kg/300kg/500kg/1 ton/2 ton/3 ton/5 ton, and feature high accuracy and stability. SUCH S beam load cell sensors have a safe overload of 150% F.S and an ultimate overload of 300% F.S. They are suitable for use in hopper scales, material weighing pendants, spring tension test benches, and pressure monitoring test benches.

    After purchasing one SUCH load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

    Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

    Feature

    • Integrated Tension and Compression Design: The S beam load cell measures both pulling and pushing forces with high precision.
    • High Accuracy: This load cell sensor achieves a precision of ±0.03% F.S, ensuring stable and reliable measurements.
    • Customizable Capacity and Size: Available in a wide range of capacities from 50kg to 5000kg, with customizable dimensions for different load cell applications.
    • Compact and Durable Structure: Designed with a tight and solid construction, the load cell sensor provides long-term stability and high overall accuracy.
    • Easy Installation and High Sensitivity: The S beam load cell has a simple mounting process with excellent response sensitivity, ensuring precise force measurement.
    • Versatile Mounting Options: Compatible with eye bolts, hooks, and joint bearings, making it easy to integrate the load cell into different systems.
    • High-Strength 42CrMo Alloy Steel: The load sensor is made from superior 42CrMo alloy steel, offering high strength, excellent toughness, and resistance to wear and fatigue.
    • Corrosion and High-Temperature Resistant: Designed to withstand rust, high temperatures, and abrasion, ensuring long service life.
    • Hexagonal Waterproof Connector: Prevents wire breakage due to pulling forces, enhances corrosion resistance, and ensures stable signal transmission with strong anti-interference capabilities.
    • Standard Mounting Holes: The S beam load cell sensor provides convenient installation and output symmetry, ensuring precise tension and compression measurements.

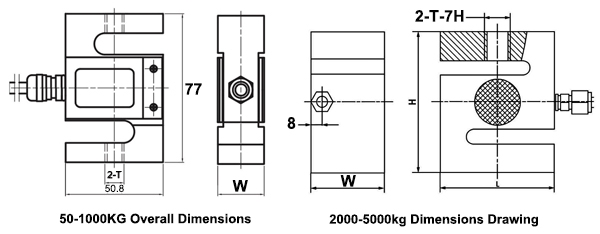

    Dimension (Unit:mm)

    Dimension of S beam load cell

    Capacity (kg) L (mm) H (mm) W (mm) T (Thread)
    50, 100, 200 / / 18.5 M10*1
    300 / / 24.4 M10*1
    500 / / 24.4 M12*1
    1000 / / 36 M12*1
    2000 70 86 45 M16*1.5
    3000 80 100 50 M18*1.5
    5000 92 130 58 M20*2

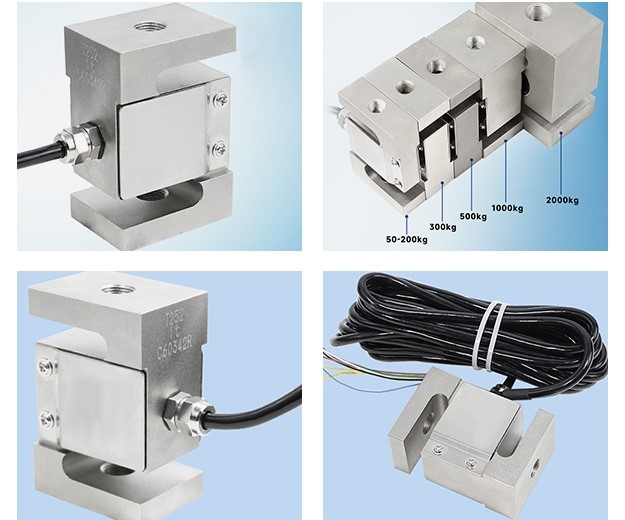

    Details

    Details of S beam load cell

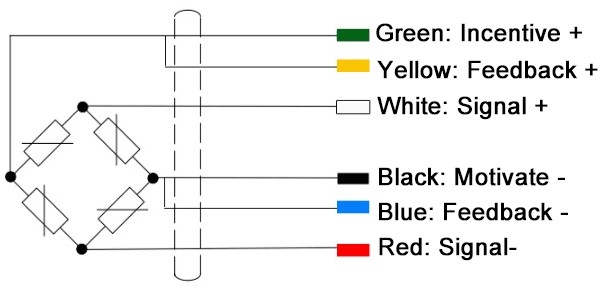

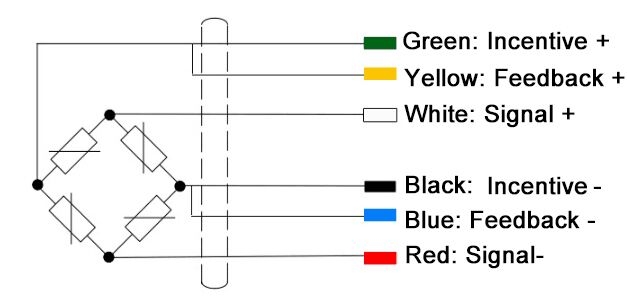

    Wiring

    S beam load cell wiring method

    Specs
    Capacity 50kg-5T (optional)
    Matched Display Controller SUCH-LCDC-DY800 (Click it to the controller page)
    Matched Transmitter SUCH-LCTR-OAR (Click it to the transmitter page)
    Output Sensitivity 2.0-3.0 ±10% mV/V
    Zero Output ±1% F.S.
    Non-linearity 0.03% F.S.
    Hysteresis 0.03% F.S.
    Repeatability 0.03% F.S.
    Creep (30 min) 0.03% F.S.
    Temperature Sensitivity Drift 0.03% F.S./10℃
    Zero Temperature Drift 0.05% F.S./10℃
    Frequency Response 10KHz
    Material Alloy Steel
    Impedance 350Ω
    Insulation Resistance ≥5000MΩ/100VDC
    Operating Voltage 5-15V
    Operating Temperature Range -20~80℃
    Safe Overload 150%
    Ultimate Overload 300%
    Cable Specification φ5×6m
    Cable Maximum Tension 10kg
    TEDS Optional (Contact customer service)
    Application

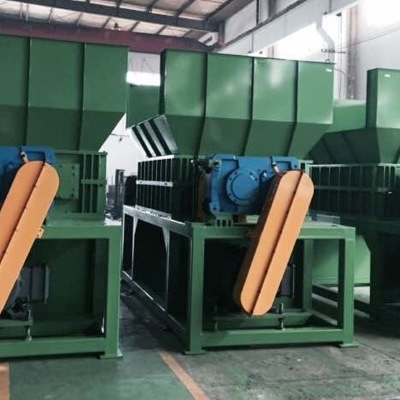

    Material Scale


    Material Scale

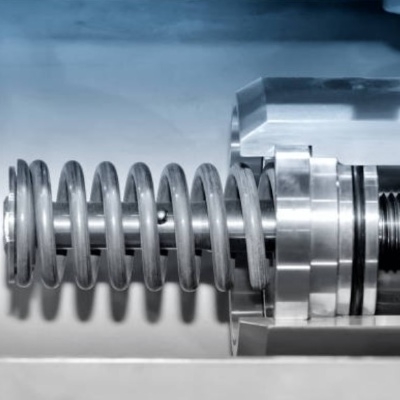

    Spring Tension Test Bench


    Spring Tension Test Bench

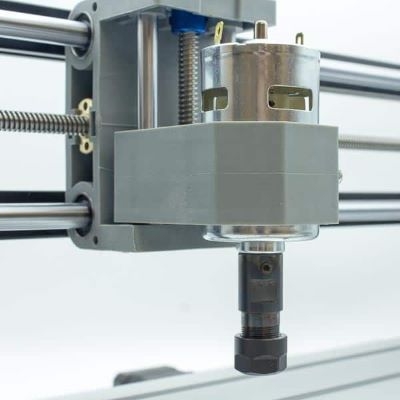

    Pressure Monitoring Test Bench


    Pressure Monitoring Test Bench

    FAQ
    ❯

    The advantage of an S-beam load cell is that it can measure both tension and compression simultaneously. Its compact structure and easy installation make it suitable for a variety of applications, such as suspension and tension and compression testing. It also offers high sensitivity and measurement accuracy, and stable signal output.

    ❯

    S-beam load cell sensors are commonly used in industrial weighing systems, suspended force measurement, material tension/compression testing, automated production lines, and laboratory mechanical testing.

    ❯

    S-beam load cell sensors are commonly used in industrial weighing systems, suspended force measurement, material tension/compression testing, automated production lines, and laboratory mechanical testing.

    1 review(s)
    5.0 1
    Write your own review Close
    *
    *
    Martin Keegan | 8/28/2026 9:36 AM
    S beam load cell works well for my pulling test
    This load cell has been working well in my test setup. Getting it mounted was pretty simple, although I had to adjust the alignment once to get everything sitting right. After checking it with a few known weights, the readings looked consistent. So far, it has been doing exactly what I need.
