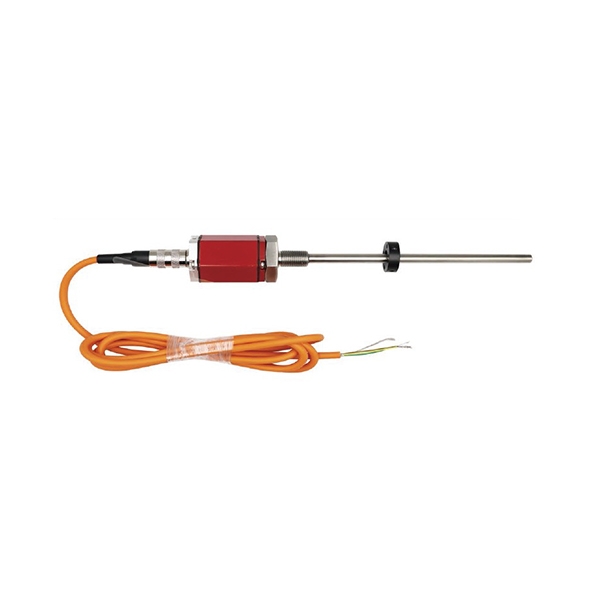

Magnetostrictive Displacement Sensor, 100~1500mm, 4-20mA/0-5V

Magnetostrictive displacement sensor is a built-in stroke displacement sensor for hydraulic cylinders. It features a built-in 16-bit D/A converter, which can convert the absolute position of the vernier magnetic ring into a standard 4–20mA current signal or 0–10V voltage signal in real time and with high precision. The output signal is linearly related to the effective measurement range. SUCH displacement sensor has a measurement range of 100~1500mm, an operating temperature range of -40~85℃, and supports multiple output modes including 0–5V, 0–10V, 4–20mA, and start-stop. It operates on a 24VDC power supply (-15%~+20%) and is suitable for high-precision displacement measurement applications in hydraulic cylinders and various industrial and engineering machinery.

Feature

• Rugged and Durable: Fully sealed design for reliable operation in many industrial environments.
• Linear Measurement: Absolute position output, no homing or zero reset required.
• Easy to Use: Standard signal outputs, maintenance-free operation.
• No Wear: Continuous non-contact measurement ensures long service life.
• Fully Adjustable Range: 100% adjustable zero point and full scale.
• High Resolution: Resolution up to 0.5 μm for high-precision measurement.

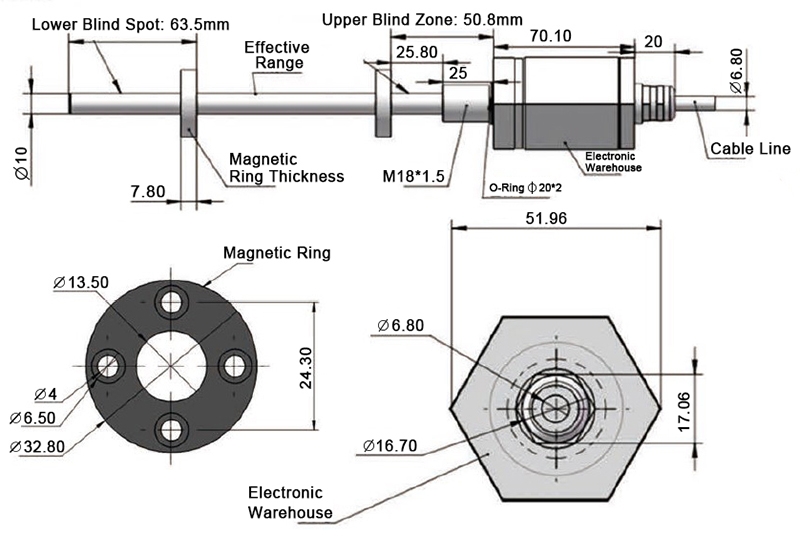

Dimension (Unit: mm)

Wiring
