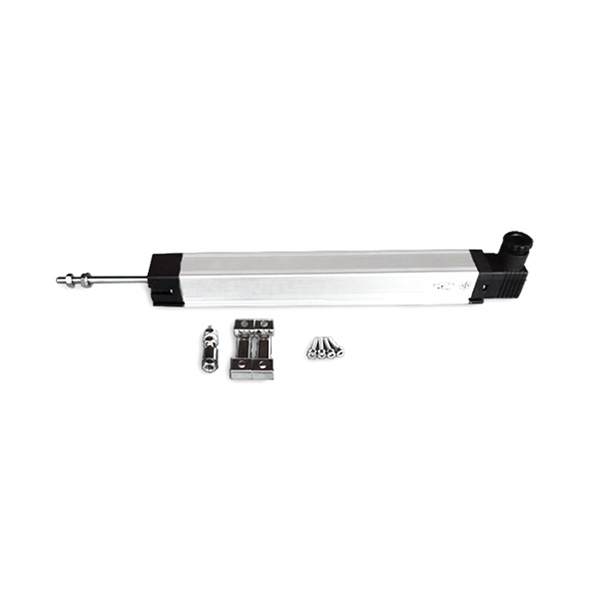

Linear Displacement Sensor, Rod Type, 50mm/75mm to 1250mm

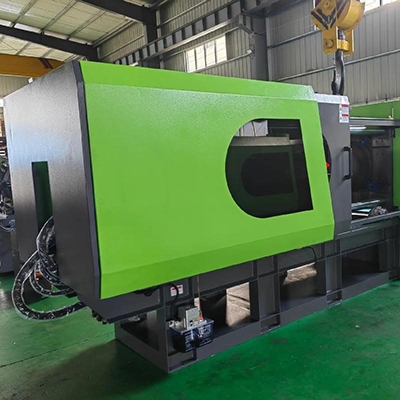

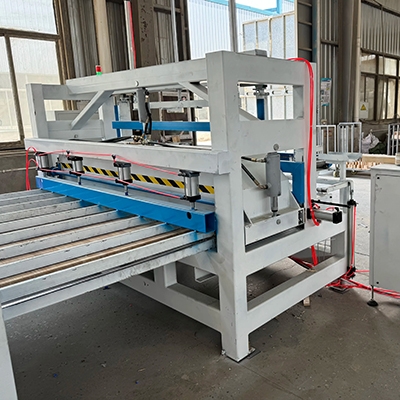

Rod type linear displacement sensor operates on the potentiometer principle, converting mechanical displacement into a stable DC voltage signal output. With a measurement range of 50~1250 mm, it is suitable for displacement measurement and position control in various automated mechanical equipment, such as injection molding machines, die-casting machines, rubber machines, EVA injection machines, blow molding machines, woodworking and hydraulic machinery, etc. SUCH linear displacement sensor has a repeatability accuracy of 0.01 mm, a maximum operating speed of 10 m/s, and stable and reliable performance.

Feature

• High-precision measurement with a repeatability of up to 0.01 mm, fast response, and good stability.
• Robust and durable housing structure, no temperature drift, and long lifespan.
• Wide measuring range, strong applicability, supports high-speed operation, and is widely used in various automated equipment.

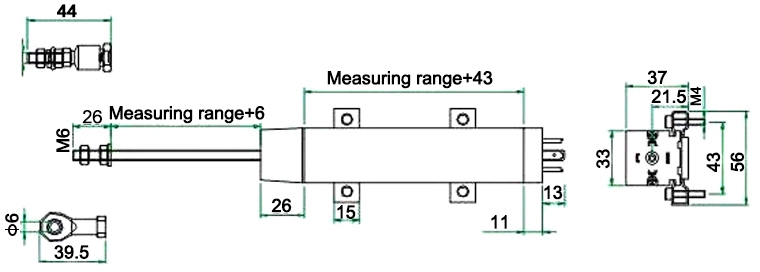

Dimension (Unit: mm)
