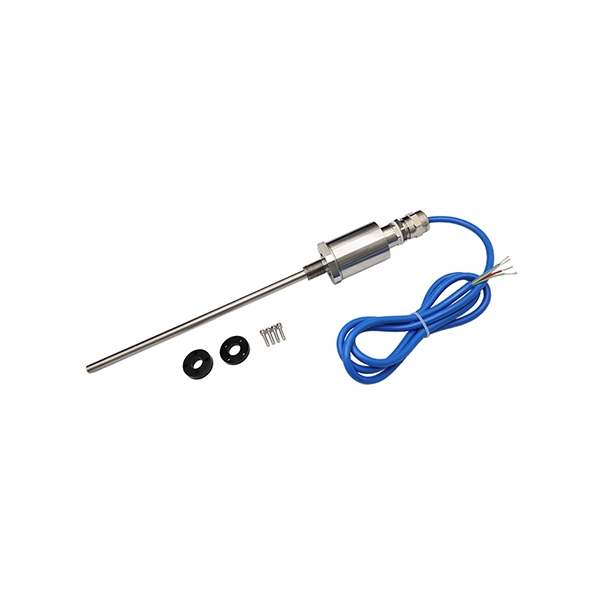

Explosion Proof Magnetostrictive Displacement Sensor, 100~1500mm

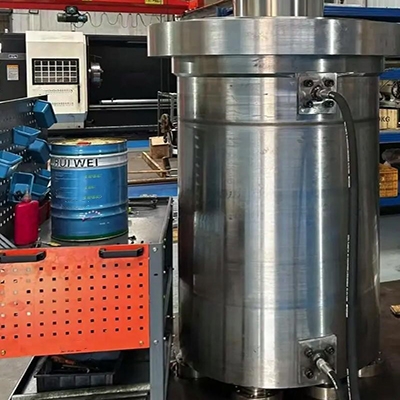

Explosion-proof magnetostrictive displacement sensors are used in hydraulic systems and can be internally installed inside hydraulic cylinders to achieve high-precision, non-contact displacement measurement. SUCH magnetostrictive displacement sensor adopts a pressure-resistant outer tube structure and an aluminum profile electronic housing, possessing excellent vibration resistance, shock resistance, and environmental adaptability, making it suitable for harsh industrial conditions. The measurement range is 100~1500mm, supporting multiple output modes including 0–5V, 0–10V, 4–20mA, and Start-Stop. The 16-bit DA resolution reaches up to 0.5µm, the operating temperature range is -40~85℃, and the power supply voltage is 24VDC (-15%~+20%). It is widely used in various hydraulic cylinder position feedback and industrial automation control systems.

Feature

• Rugged and Durable: Fully enclosed structure design, adaptable to many industrial environments.
• Linear Measurement: Absolute value output, no zeroing required.
• Easy to Use: Standard signal output, strong compatibility, maintenance-free design.
• Never Wears Out: Continuous non-contact measurement, no mechanical contact, long service life.
• Full-scale adjustable: Both zero point and full-scale range are 100% adjustable to adapt to different application needs.
• High resolution: Maximum resolution up to 0.5 um, meeting high-precision measurement requirements.

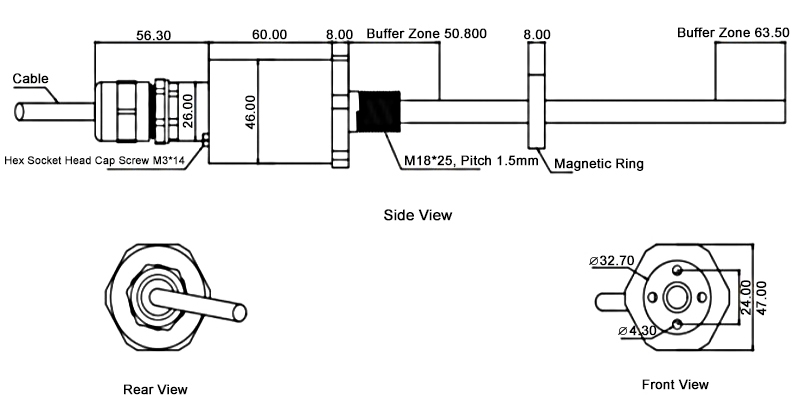

Dimension (Unit: mm)

Wiring
