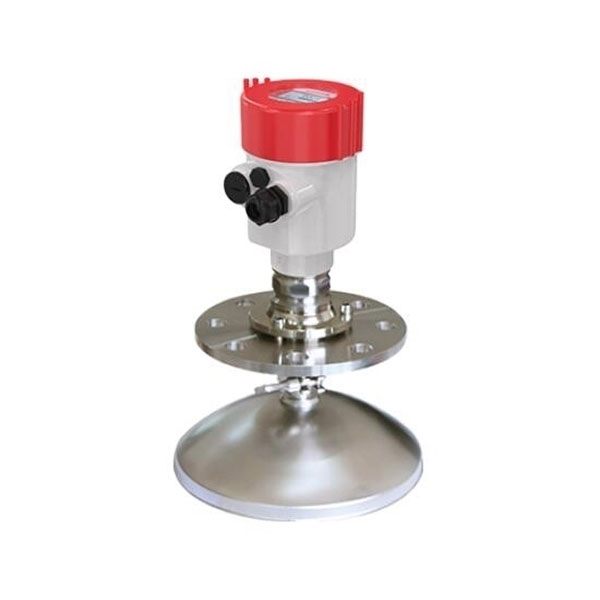

    Non Contact Radar Type Level Transmitter for Solid/Powder, 4-20mA/RS485, 0-50M

    0 review(s) | Add your review
    SKU: SUCH-RLS-RD904
    $2,145.59
    ● Measuring ranges 0-45m for powders, up to 50m for granules and chunks ● Output signals 4–20mA, RS485, 4–20mA+HART ● Power supply DC 12–24V or AC 220V ● Flange installation, 304 stainless steel process connection ● With LCD display and waterproof connectors
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    SUCH radar type level transmitter is a non-contact solid level sensor with a measurement range of 0-30m/0-45m for powders and up to 50m for granules and lumps. The radar level sensor supports 4–20mA, RS485, or 4-20mA+HART output, powered by DC 12-24V or AC 220V, and uses a flange mounting method. It consists of an aluminum housing with an LCD display and a 304 stainless steel process connection, suitable for measuring various solid materials.

    Feature

    • 10° narrow beam design: The radar level sensor concentrates energy within a narrow beam, delivering powerful medium penetration and improved echo stability.
    • Wide application range: Features a waterproof, dustproof, and corrosion-resistant design for reliable use in harsh industrial environments.
    • 304 stainless steel housing: Durable, wear-resistant, and shockproof construction ensures long-term stability and extended service life.

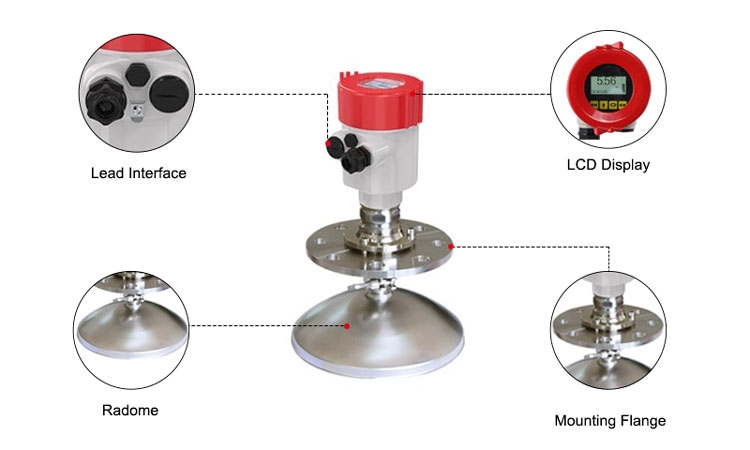

    Detail

    Non contact radar type level sensor for solid details

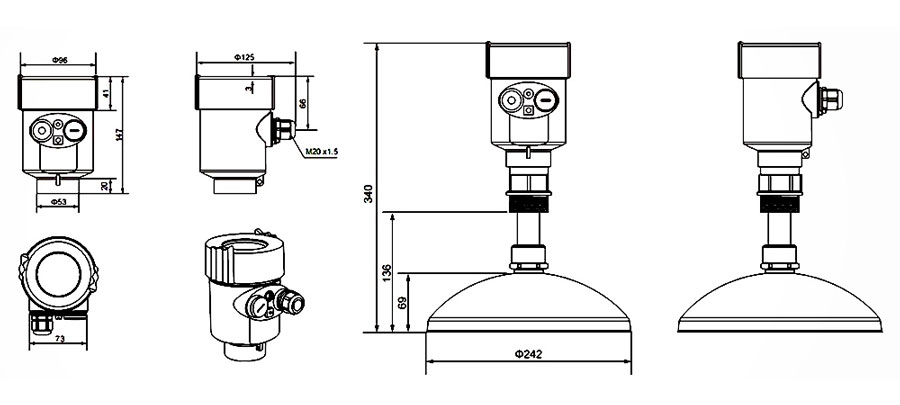

    Dimension (Unit: mm)

    Non contact radar type level transmitter dimension

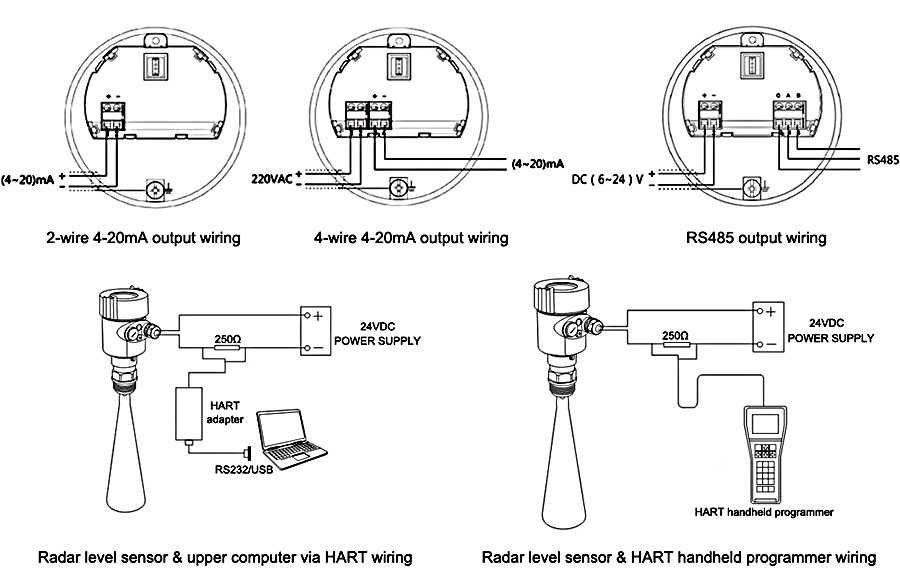

    Wiring

    Radar level sensor wiring

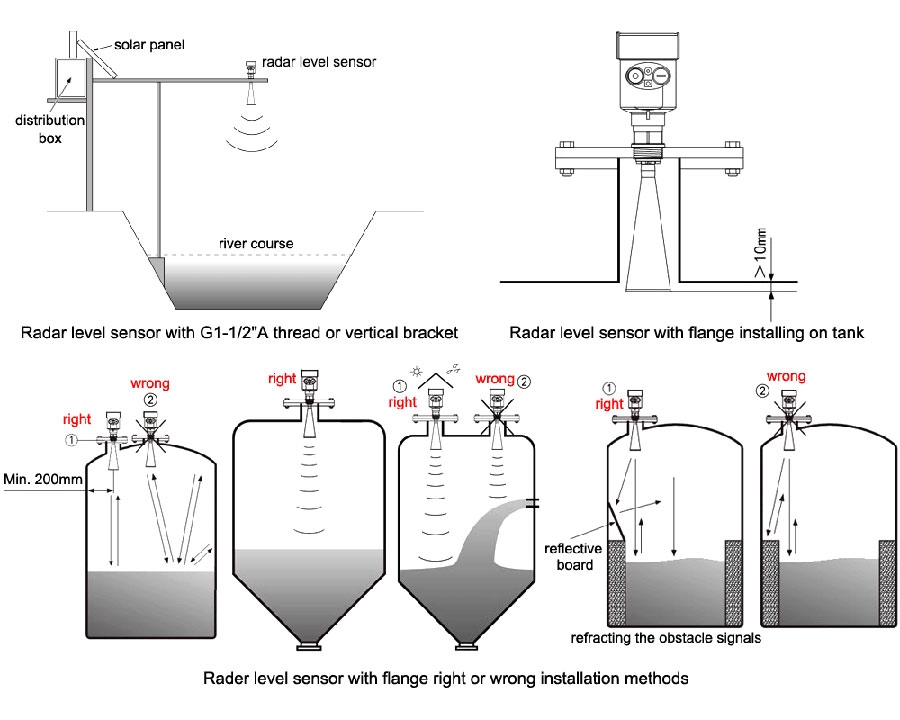

    Installation

    Radar level sensor installation

    Specs
    Measuring Range Powder: 0-30m Powder: 0-45m Granules: 0-50m Chunks: 0-50m
    Accuracy ±25mm
    Resolution 1mm
    Display LCD Display
    Measured Interval 1s (according to parameter setting)
    Adjustment Time 1s (according to parameter setting)
    Microwave Frequency 26GHz
    Output Signal* 4-20mA, Modbus RTU (RS485 Port), 4-20mA+HART
    Power Supply* DC 12-24V, AC 220V/50Hz
    Material Shell Aluminum, Process Connection 304 Stainless Steel
    Paraboloid Φ196mm Φ246mm Φ246mm Φ246mm
    Pressure -0.1 ~ 0.3MPa
    Shock Resistance 10m/s2, (10~150)Hz
    Communication Protocol Modbus
    Medium Solids
    Storage Temperature -40~+100℃
    Process connection (antenna) temperature -40~+150℃
    Medium Temperature* -40~+250℃
    Protection Class IP67
    Electrical Connection 2 waterproof connectors M20*1.5mm, or 2 waterproof connectors 1/2" NPT
    Installation* DN80 Flange DN80 Flange DN80 Flange+DN250 Steel Plate DN250 Flange
    Warranty 12 Months
    Shipping Weight 7.5kg

    Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

    Application
    Radar type level sensor for strong powder and dust

    Strong Powder and Dust

    Radar type level sensor for solid materials

    Solid Materials

    Radar type level sensor for crystallization condensation

    Crystallization Condensation

    FAQ
    ❯

    Not recommended. Horizontal installation can cause echo angle deviation, which affects measurement accuracy. It is recommended to install them perpendicular to the liquid surface.

    ❯

    Yes. Radar signals do not rely on a gaseous propagation medium, so they can still function normally in a vacuum.

    ❯

    Some radar level sensors support oil-water interface measurement, achieved by analyzing dual echo signals. It is necessary to ensure a significant difference in the dielectric constants of the upper and lower liquids.
