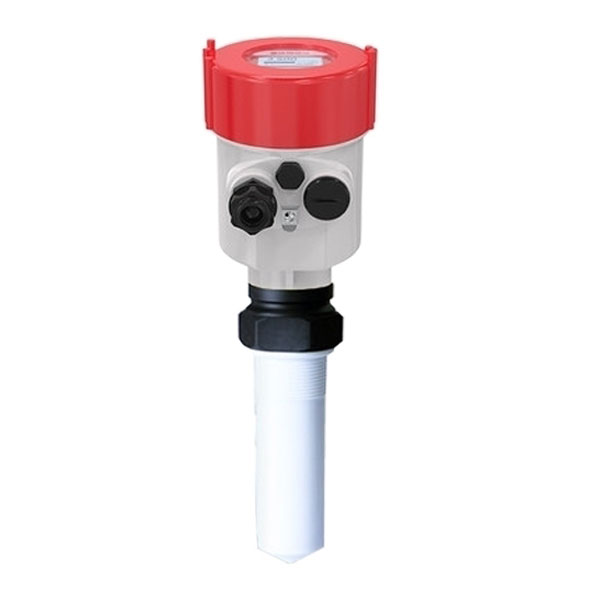

    Non Contact Radar Level Sensor for Corrosive Liquid, 4-20mA/RS485, 0-10M

    0 review(s) | Add your review
    SKU: SUCH-RLS-RD901
    $1,370.08
    ● Non contact measurement, measuring range 0-10m ● Power supply DC 12-24V or AC 220V ● Output options 4-20mA, RS485, 4-20mA+HART ● Protection rating IP67, suitable for various corrosive liquids
    *
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Radar level sensor provides non-contact measurement for a wide range of corrosive liquids, offering a 0-10m measuring range with selectable 4-20mA, HART, or RS485 outputs. This radar type level transmitter comes with an LCD protection head, waterproof connectors, an internal radar antenna, and installation accessories designed for reliable performance.

    Feature

    • 10° narrow beam design: The radar level sensor concentrates energy within a narrow beam, delivering powerful medium penetration and improved echo stability.
    • Wide application range: Features a waterproof, dustproof, and corrosion-resistant design for reliable use in harsh industrial environments.
    • 304 stainless steel housing: Durable, wear-resistant, and shockproof construction ensures long-term stability and extended service life.

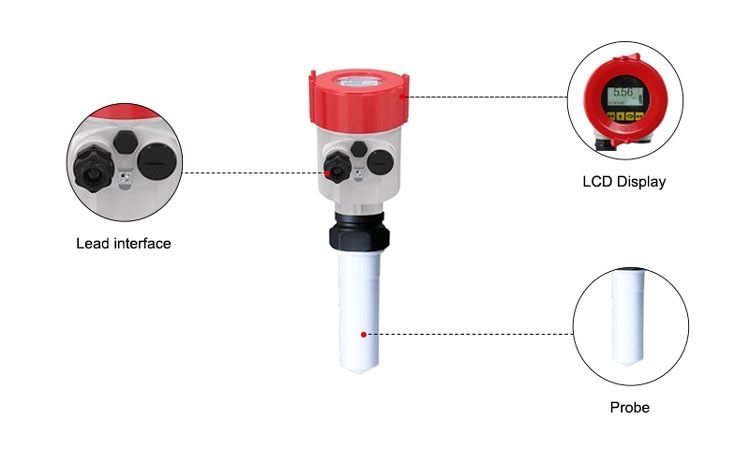

    Detail

    Non contact radar level transmitter for corrosive liquid details

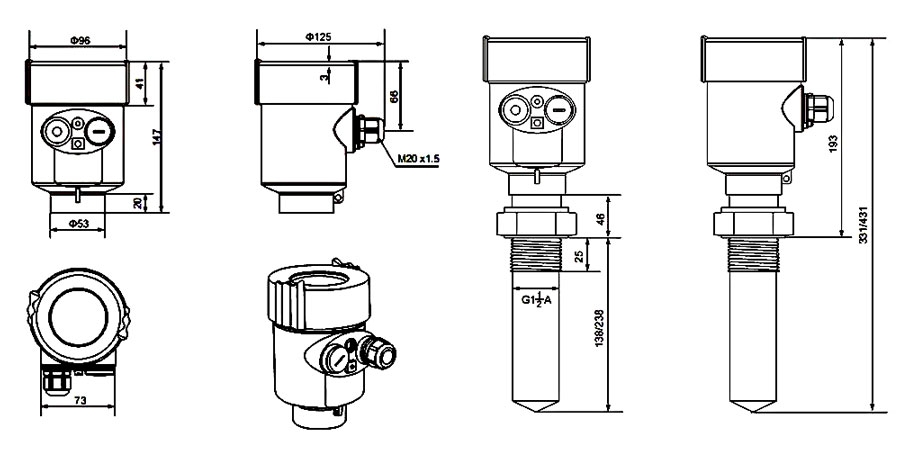

    Dimension (Unit: mm)

    Non contact radar level transmitter for corrosive liquid dimension

    Wiring

    Radar level sensor wiring

    Installation

    Radar level sensor installation

    Specs
    Measuring Range 0-10m
    Accuracy ±5mm (Range 5m), ±10mm (Range 10m)
    Resolution 1mm
    Display LCD Display
    Measured Interval 1s (according to parameter setting)
    Adjustment Time 1s (according to parameter setting)
    Microwave Frequency 26GHz
    Output Signal* 4-20mA, Modbus RTU (RS485 Port), 4-20mA+HART
    Power Supply* DC 12-24V, AC 220V/50Hz
    Material Shell: Aluminum, Process Connection: 304 Stainless Steel
    Pressure -0.1 ~ 0.3MPa
    Shock Resistance 10m/s2, (10~150)Hz
    Communication Protocol Modbus
    Medium Various Corrosive Liquids
    Storage Temperature -40~+100℃
    Process connection (antenna) temperature -40~+150℃
    Medium Temperature -40~+130℃
    Protection Class IP67
    Electrical Connection 2 waterproof connectors M20*1.5mm, or 2 waterproof connectors 1/2" NPT
    Installation* G1-1/2"A thread, Flange
    Warranty 12 Months
    Shipping Weight 3.5kg

    Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

    Application
    Radar corrosive liquid level sensor for chemical production

    Chemical Production

    Radar corrosive liquid level sensor for petrochemical

    Petrochemical

    Radar corrosive liquid level sensor for wastewater treatment

    Wastewater Treatment

    FAQ
    ❯

    The blind zone is typically between a few centimeters and tens of centimeters. High-frequency radar has a shorter blind zone, making it suitable for small containers or low-level measurement.

    ❯

    Some radar level sensors can penetrate non-metallic containers for external measurement. This is provided the container walls are thin and there is no metal lining.

    ❯

    Common outputs include 4–20mA, HART, RS485 (Modbus), and wireless signals. Users can select the appropriate interface based on their control system.
