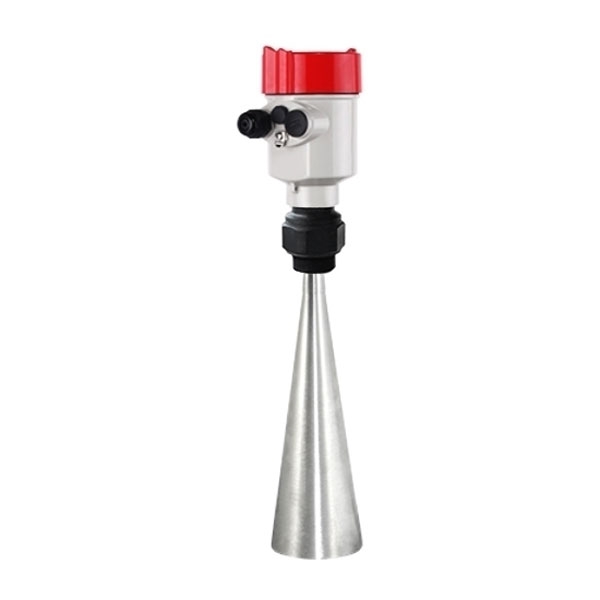

Non Contact Radar Water Level Sensor, 4-20mA/RS485, 0-70M

SKU: SUCH-RLS-RD909

$1,727.96

● Measuring range 0-30m or 0-70m ● Output signals 4-20mA, HART, RS485/RS232 ● Power supply options DC 12-24V, AC 220V ● IP67 protection rating, dustproof and waterproof ● Suitable for reservoir, river, lake, and water tank level measurement

Measuring Range *
Output Signal *
Power Supply *
Installation *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Radar water level sensor uses advanced non-contact radar technology and offers wide measuring ranges of 0-30m or 0-70m, with selectable outputs including 4–20mA, HART, and RS485/232, plus flexible DC or AC power options. With IP67 protection, the radar type transmitter can be installed easily for level monitoring in reservoirs, rivers, lakes, and water tanks.

Feature

10° narrow beam design: The radar level sensor concentrates energy within a narrow beam, delivering powerful medium penetration and improved echo stability.
Wide application range: Features a waterproof, dustproof, and corrosion-resistant design for reliable use in harsh industrial environments.
304 stainless steel housing: Durable, wear-resistant, and shockproof construction ensures long-term stability and extended service life.

Detail

Non contact radar water level sensor details

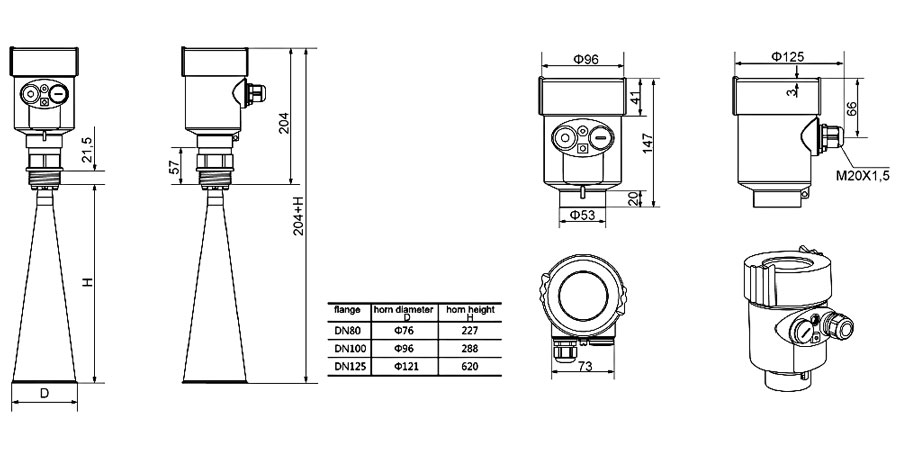

Dimension (Unit: mm)

Non contact radar water level sensor dimension

Wiring

Radar level sensor wiring

Installation

Radar level sensor installation

Specs

Measuring range *	0-30m, 0-70m
Accuracy	±20mm
Display	LCD display
Measured interval	1s (according to parameter setting)
Adjustment time	1s (according to parameter setting)
Microwave frequency	26GHz
Output signal *	4-20mA (can be connected with HART), RS485/232
Power supply *	DC 12-24V, AC 220V/50Hz
Material	Shell: aluminum, process connection: 304 stainless steel, horn: 304 stainless steel
Horn antenna size	Φ98mm
Pressure	Maximum 4MPa
Shock resistance	10m/s2, (10~150)Hz
Communication protocol	Modbus
Medium	Water
Storage temperature	-40~+100℃ (-40~+212℉)
Process connection (antenna) temperature	-40~+150℃ (-40~+302℉)
Protection class	IP67
Electrical connection	2 waterproof connectors M20*1.5mm, or 2 waterproof connectors 1/2" NPT
Installation *	G1-1/2"A thread, vertical bracket, flange
Warranty	12 months
Shipping weight	2.5kg

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

PDF computing Radar Level Sensor Communication Protocol

PDF computing Radar Level Sensor User Manual

Application

River Channel

Reservoir

Shoal

FAQ

Q1: Does the radar level sensor require periodic calibration? ❯

Radar level sensors generally do not require frequent calibration, as they are precisely calibrated before leaving the factory. If the measurement environment varies significantly, it is recommended to check it every six months to one year.

Q2: Does the radar type level sensor affect liquids with low dielectric constants? ❯

Low dielectric constants weaken the reflected signal, affecting measurement stability. It is recommended to choose an 80GHz high-frequency radar, which has strong signal focusing and performs better for low dielectric liquids.

Q3: Is the radar level sensor accurate when measuring foamy liquids? ❯

Ordinary radar is significantly affected by foam, but high-frequency or FMCW (Frequency Modulated Continuous Wave) radar can penetrate foam layers to measure the true liquid level. If the foam is thick and dense, a guided wave radar transmitter can be considered as an alternative.
