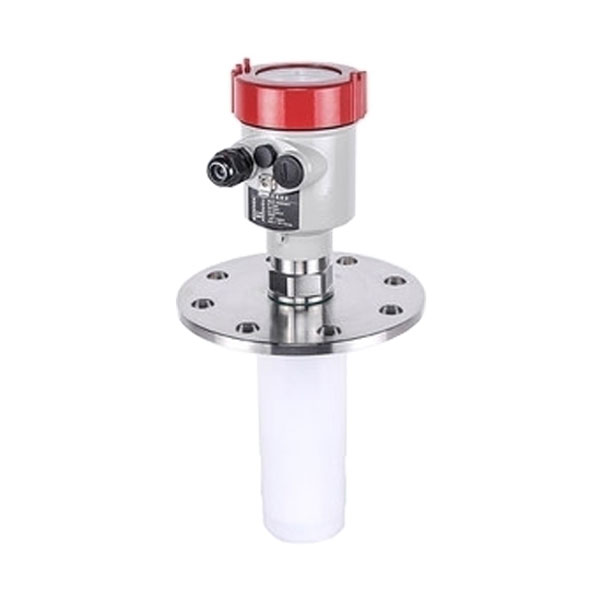

    Non Contact Radar Liquid Level Sensor, 4-20mA/RS485, 0-20M

    0 review(s) | Add your review
    SKU: SUCH-RLS-RD902T
    $1,563.49
    ● Measuring range 0-20m, 26 GHz microwave frequency ● Output signals 4-20mA, RS485, or 4–20 mA + HART ● Power supply DC 12-24 V or AC 220 V ● DN80, DN100 or DN150 flange installation ● Suitable for corrosive liquids, vapors, volatile liquids
    *
    *
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Radar level sensor provides non-contact measurement for a wide range of liquids, offering a measuring range of 0-20m with optional 4–20mA, HART, or RS485 outputs. This radar type level transmitter features a robust design with an LCD display and flange installation options such as DN80, DN100, and DN150. With IP67 protection, it is suitable for corrosive, volatile, or vapor-filled environments.

    Feature

    • 10° narrow beam design: The radar level sensor concentrates energy within a narrow beam, delivering powerful medium penetration and improved echo stability.
    • Wide application range: Features a waterproof, dustproof, and corrosion-resistant design for reliable use in harsh industrial environments.
    • 304 stainless steel housing: Durable, wear-resistant, and shockproof construction ensures long-term stability and extended service life.

    Detail

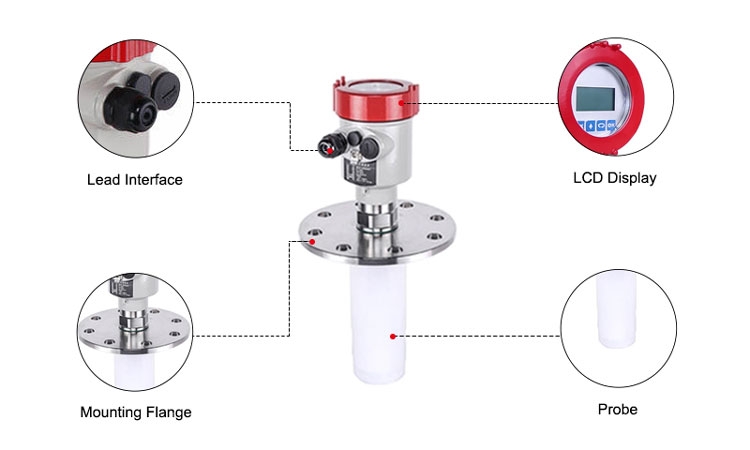

    Non contact radar liquid level sensor details

    Dimension (Unit: mm)

    Non contact radar liquid level sensor dimension

    Wiring

    Radar level sensor wiring

    Installation

    Radar level sensor installation

    Specs
    Measuring Range 0-20m
    Accuracy ±10mm
    Resolution 1mm
    Display LCD Display
    Measured Interval 1s (according to parameter setting)
    Adjustment Time 1s (according to parameter setting)
    Microwave Frequency 26GHz
    Output Signal* 4-20mA, Modbus RTU (RS485 Port), 4-20mA+HART
    Power Supply* DC 12-24V, AC 220V/50Hz
    Material Shell: Aluminum, Process Connection: 304 Stainless Steel, Horn: 304 Stainless Steel
    Horn Antenna Size* Φ78mm/ Φ98mm/ Φ146mm
    Pressure -0.1 ~ 2.0MPa
    Shock Resistance 10m/s2, (10~150)Hz
    Communication Protocol Modbus
    Medium Corrosive Liquids, Vapors, Volatile Liquids
    Storage Temperature -40~+100℃
    Process connection (antenna) temperature -40~+150℃
    Medium Temperature* -40~+130℃, -40~+230℃
    Protection Class IP67
    Electrical Connection 2 waterproof connectors M20*1.5mm, or 2 waterproof connectors 1/2" NPT
    Installation* Flange
    Warranty 12 Months
    Shipping Weight 6.5kg

    Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

    Application

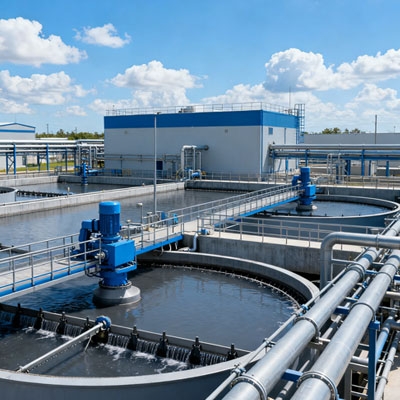

    Radar level sensor for municipal wastewater

    Municipal Wastewater

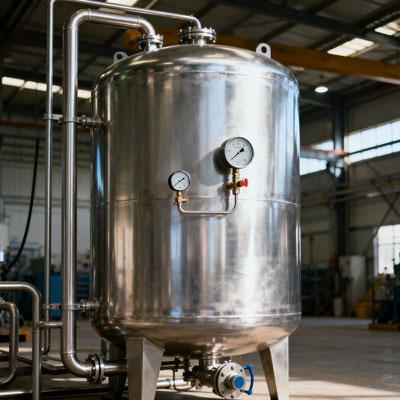

    Radar level sensor for level tank

    Level Tank

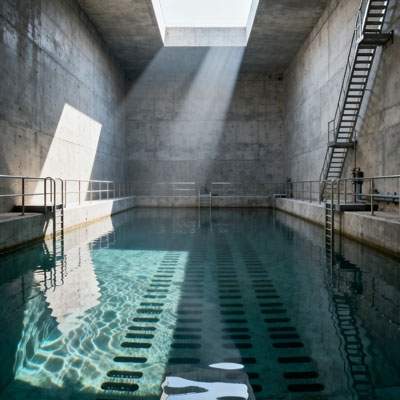

    Radar level sensor for water storage tank

    Water Storage Tank

    FAQ
    ❯

    Radar level sensors can measure water, oil, acid and alkali solutions, slurries, and some solid powders. Different models are designed for liquids or solids; the appropriate model must be selected based on the characteristics of the medium.

    ❯

    Yes, some models can withstand temperatures up to +250℃ or even higher. High-temperature sensors should be selected, along with suitable process connections and sealing materials.

    ❯

    Yes, when used with acid, alkali, or salt solutions, PTFE (polytetrafluoroethylene) or PVDF antenna materials should be selected. The housing should also be made of corrosion-resistant stainless steel or plastic.
