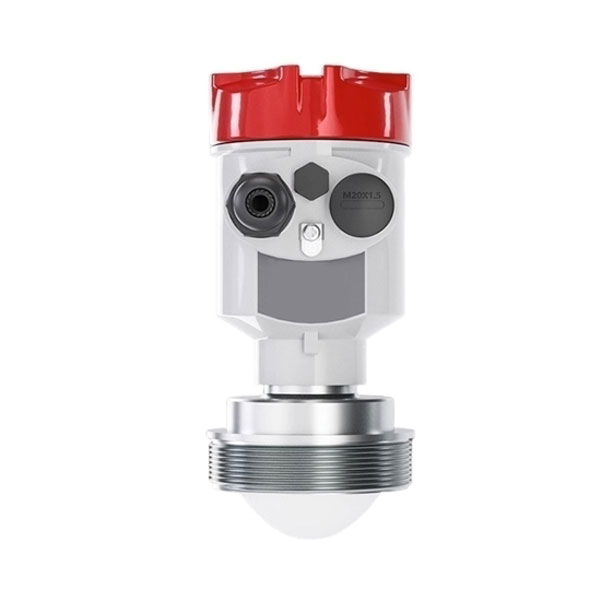

    Picture of 80 GHz Radar Level Transmitter for Liquid/Solid/Powder, 4-20mA/RS485 Picture of 80 GHz Radar Level Transmitter for Liquid/Solid/Powder, 4-20mA/RS485 Picture of 80 GHz Radar Level Transmitter for Liquid/Solid/Powder, 4-20mA/RS485

    80 GHz Radar Level Transmitter for Liquid/Solid/Powder, 4-20mA/RS485

    0 review(s) | Add your review
    SKU: SUCH-RLS-WSR550
    $1,555.86
    ● High frequency 80 GHz radar level sensor, non-contact measurement ● Detects solid, powder, and liquids, measuring range 10m-60m ● Power supply 24V DC or 220V AC ● Output options 4-20mA, RS485, HART ● Protection rating IP67 dustproof and waterproof
    *
    *
    *
    *
    *
    *
    *
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    80 GHz high frequency radar level transmitter is a non-contact measurement device suitable for detecting solid powders and liquid media, with a range selectable from 10m to 60m. It supports 24V DC or 220V AC power supply, with outputs including 4-20mA, RS485, and HART. It offers 3°/8°/20° beam angles and threaded or stainless steel flange connections, suitable for complex working conditions such as stirring, high-temperature steam, dust, and crystallization.

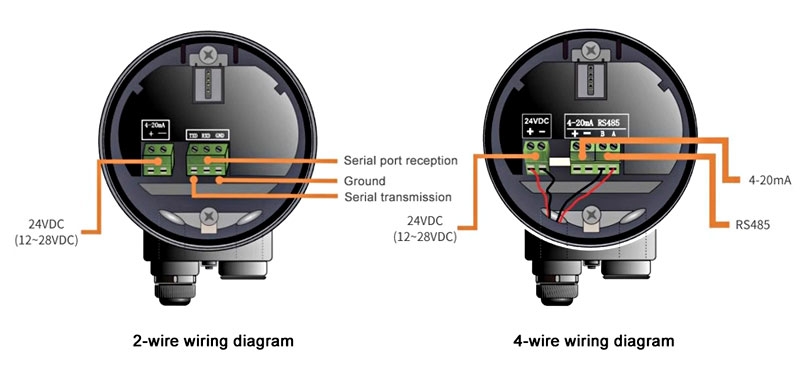

    24V DC Wiring Diagram

    80 GHz radar level transmitter 24V DC wiring diagram

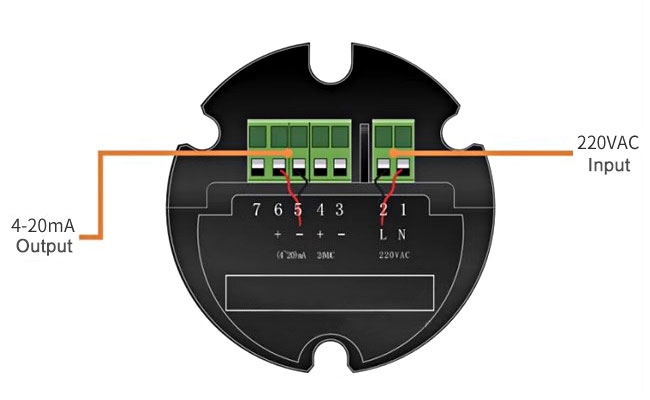

    220V AC Wiring Diagram

    80 GHz radar level transmitter 220V AC wiring diagram

    Installation

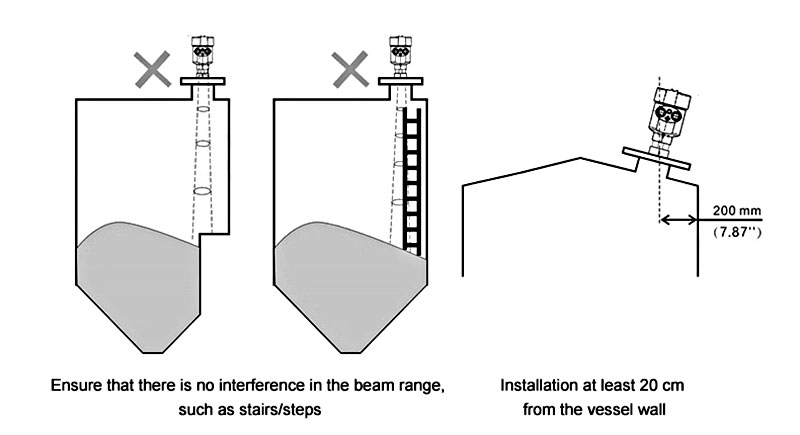

    80 GHz radar level transmitter installation

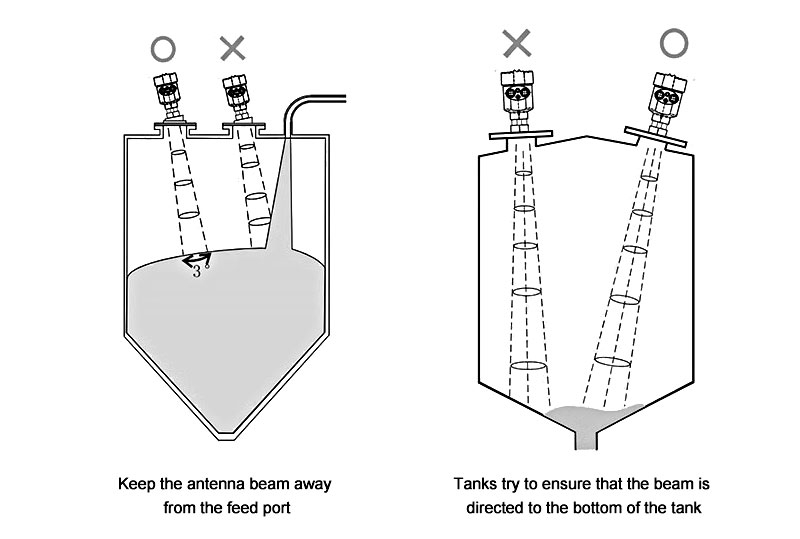

    80 GHz radar level sensor installation

    Specs
    Measurement Medium Solid Powder or Liquid
    Measurement Range 0.08~10m, 0.08~20m, 0.08~30m, 0.3~60m
    Beam Angle 3° / 8° / 20°
    Transmitting Frequency 76GHz~81GHz
    Transmitter Output 4~20mA
    Communication Output RS485, HART
    Fault Output 3.8mA, 4mA, 20mA, 21mA, Hold
    Power Supply 24V DC or 220V AC
    Cable Inlet M20*1.5
    Cable Specification AWG or 0.75mm²
    Accuracy ±1mm
    Resolution 3cm
    Measurement Interval 1s
    Dielectric Constant ≥2
    Connection Thread, Flange, or Universal flange
    Flange Material 304 Stainless Steel, Contact us for 316L Stainless Steel or PTFE.
    Flange Standard HG/T20592
    Process Pressure -0.1~2MPa
    Process Temperature -40~80℃ or -40~150℃
    Storage Temperature -40~80℃
    Protection Level IP67
    Casing Material Aluminum Alloy

    Note: Please contact us for the structure and dimension drawings of the level transmitter.

    Application
    Radar type level sensor for strong powder and dust

    Strong Powder and Dust

    Radar type level sensor for solid materials

    Solid Materials

    Radar type level sensor for wastewater treatment

    Wastewater Treatment

    FAQ
    ❯

    Temperature changes will slightly affect the signal propagation speed, but the radar level sensor has a built-in temperature compensation function that can automatically correct for this. Suitable for use in a temperature range of -40℃ to 250℃.

    ❯

    Yes, the high-pressure type can withstand tens of atmospheres of pressure. Pressure-resistant flanges and seals must be selected during installation.

    ❯

    Commonly 24V DC, but 220V AC versions are also available. A matching power supply must be selected based on the control system.
