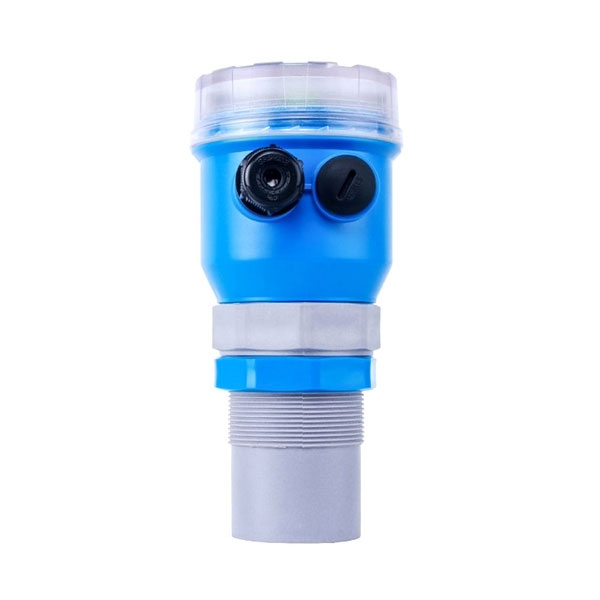

Ultrasonic Tank Level Sensor for Liquid/Solid/Powder, 0-40M

SKU: SUCH-ULS-ZP

$475.98

● Measuring range 0-5m, 0-10m, 0-15m, or 0-40m ● Output signal 4-20mA, RS485, or 2 relays ● Power supply DC 12–16V, DC 24–28V, AC 220V, or built-in battery ● Suitable for liquid, solid, or powder measurement in tanks

Measuring Range *
Output Signal *
Power Supply *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Ultrasonic tank level sensor has a measuring range up to 40m, adopting an integrated structure with OLED display, waterproof connectors, and an ultrasonic probe. This level transmitter uses advanced non-contact ultrasonic technology for liquid, solid, or powder level measurement in various tanks, rivers, and lakes. It offers 4–20mA, RS485, or 2 relays output signals, and supports various power supplies for reliable industrial use.

Feature

HD OLED Display: The ultrasonic tank level sensor features a self-luminous, high-brightness OLED screen, ensuring clear readability in any environment.
Three-Key Operation: It offers a simple and convenient three-button operation for quick setup and adjustment.
Waterproof & Dustproof Connector: Equipped with a high-protection connector, the ultrasonic liquid level transmitter achieves IP65 protection, suitable for outdoor use even in rain.

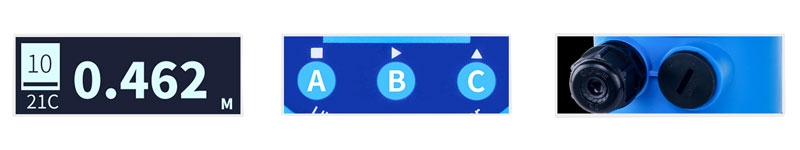

Ultrasonic tank level sensor details

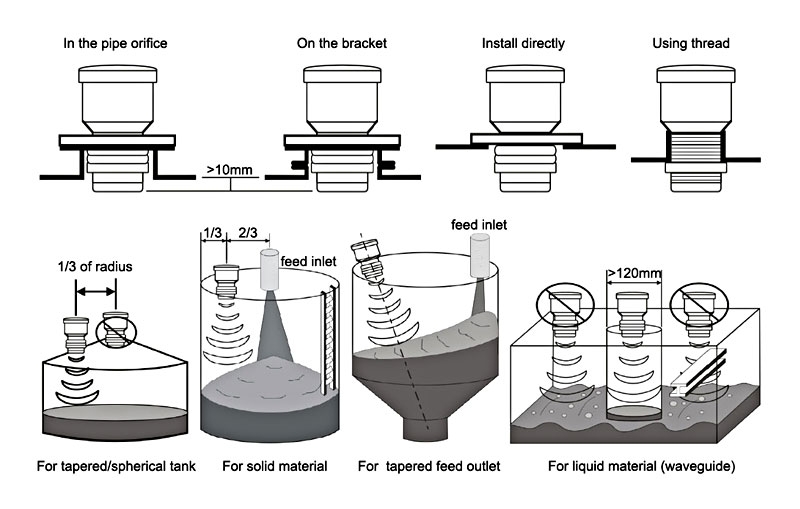

Installation Diagram

Ultrasonic tank level sensor installation diagram

Specs

Measuring range *	0-5m, 0-10m, 0-15m, 0-20m, 0-30m, 0-40m
Accuracy	0.5%FS
Resolution	1mm or 0.1%FS
Display	Monochrome LCD with a resolution of 128 * 64
Blind area	≤0.4m (5m, 10m) ≤0.6m (15m)
Current output	4-20mA, the output accuracy is 0.2%FS Output load is (U-18V)/0.02A (U: supply voltage, 2-wire) Output load is (U-14V)/0.02A (U: supply voltage, 4-wire)
Power supply	18-28V DC
Communication	RS485 (4-wire)
Relay output	2 groups (4-wire optional)
Working temperature	Instrument: (-20~+60)℃ Probe: (-20~+80)℃
Ingress protection	Instrument: IP65 Probe: IP68
Relative humidity	(10~85)%RH (no condensation)
Language	Chinese/English
Installation method	Nut with thread M60*2mm
Warranty	12 months
Shipping weight	2.5kg

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

PDF computing Non Contact Ultrasonic Level Sensor User Manual

Application

Water Treatment Plant

Oil Refinery Storage Area

Powder Silo Workshop

FAQ

Q1: What media can an ultrasonic tank level sensor measure? ❯

An ultrasonic tank level sensor can measure water, sewage, oil, fuel, chemical liquids, slurries, and some solids (such as powders and grains), but the surface must be able to effectively reflect sound waves.

Q2: How to determine the installation height of an ultrasonic tank level sensor? ❯

It should be installed above the maximum liquid level, with a blind zone provided. Measurements cannot be taken if the sensor is 0.3-0.6m below the probe. This distance should be considered when selecting a sensor.

Q3: Will the ultrasonic tank level sensor be affected by wind, dust, and sunlight? ❯

When installed outdoors, strong winds and dust can interfere with the echo, so it is recommended to add a windproof cover or protective tube; sunlight mainly affects the temperature of the housing, so a sunshade can be used for protection.
