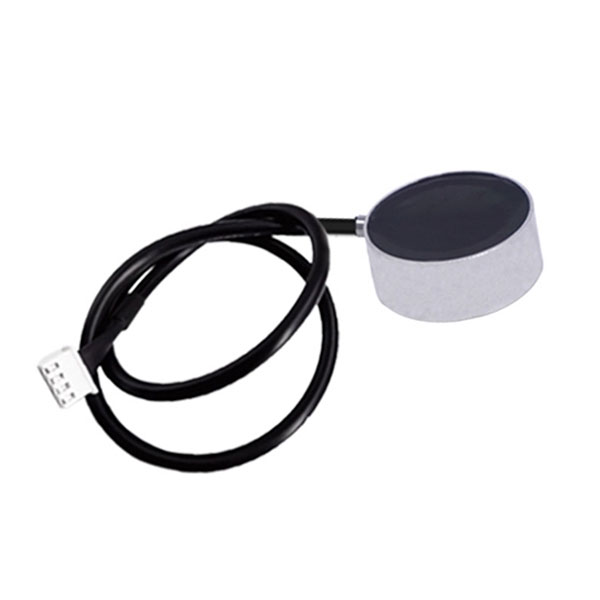

Non Contact Ultrasonic Water Tank Level Sensor, 0.5-1.5M

SKU: SUCH-ULS-LLD
$725.99
● Working voltage DC12~48V and measuring range 0.5m to 1.5m ● Protection level IP67 dustproof and waterproof ● Optional communication interface RS232 or RS485 ● Installed outside the bottom of the water tank
*
🚚 Free shipping
🕒 Delivery date: 6-12 days
🔁 30-day Returns
Overview

SUCH non contact ultrasonic water level sensor for operates on the ultrasonic echo ranging principle, measuring liquid height without direct contact. It installs easily outside the bottom of the tank, offering accurate and stable readings within 0.5 to 1.5 meters.

Feature

  • Small Dead Zone & Wide Range: The ultrasonic water tank level sensor offers a maximum detection distance of 1.5m with high sensitivity, stable measurement, and strong anti-interference performance, suitable for various industrial applications.
  • IP67 Protection: Made of corrosion-resistant materials, the liquid level sensor withstands harsh environments, prevents rust, and ensures long service life.
  • Easy Installation: Designed for easy installation without drilling or coupling agents, ensuring a secure fit and no damage to the tank.

Dimension (Unit: mm)

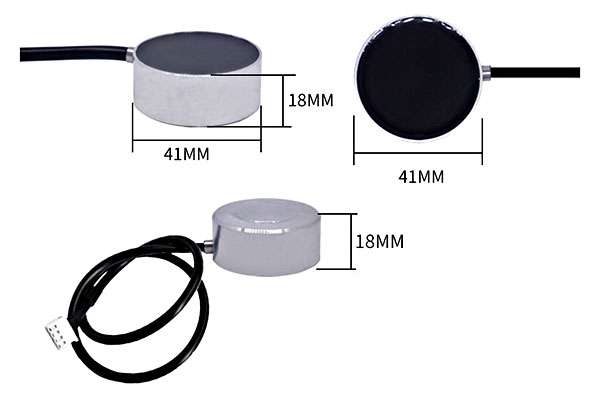

Ultrasonic water tank level sensor dimension

Pin Description

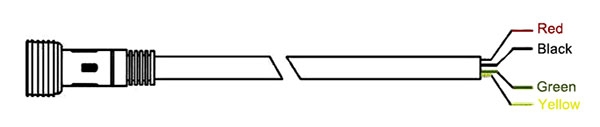

Ultrasonic water tank level sensor pin description

Wire Color Functional Description Detailed Description
Red core wire Sensor power supply cable Connect to the positive terminal of the power supply (supply voltage range DC12~48V)
Black core wire Sensor power supply cable Connect to the negative terminal of the power supply
Green core wire Sensor signal cable Signal line identified as RX/A, connect to TX/A terminal of user's equipment.
Yellow core wire Sensor signal cable Signal line identified as TX/B/voltage analog, connect to the RX/B voltage analog terminal of the user's device.
Specs
Working Voltage DC12~48V
Working Current ≤ 25mA
Measuring Range 5~150cm
Communication Interface RS232/RS485
Measuring Liquid Water
Measuring Resolution 0.1mm
Measuring Accuracy ±0.5%FS
Protection Class IP67 dustproof and waterproof
Working Temperature -20℃~80℃
Storage Temperature -25℃~85℃
Communication Interface Parameters Communication rate 9600bit/s
Thickness of Measured Container ≤20mm
Net Weight Approx. 105g
Application

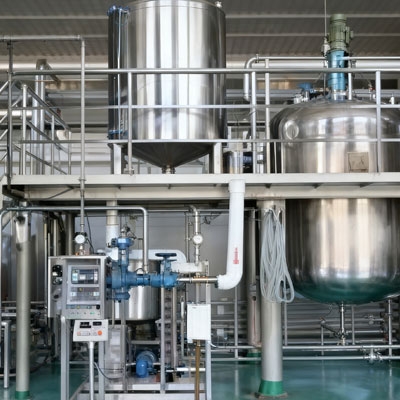

Ultrasonic water tank level sensor for liquid filling system

Liquid Filling System

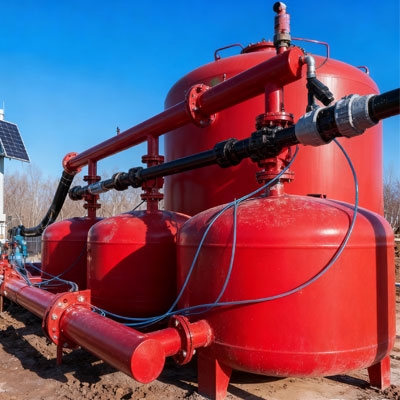

Ultrasonic water tank level sensor for water supply system

Water Supply System

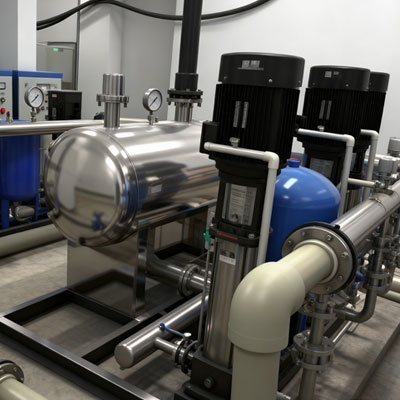

Ultrasonic water tank level sensor for intelligent liquid control system

Intelligent Liquid Control System

FAQ

No. The ultrasonic level sensor uses non-contact measurement technology and can be directly installed on the top or outer wall of the water tank without drilling or contact with the liquid. It will not damage the tank structure and requires no coupling agent, making installation convenient and suitable for metal or plastic water tanks.

Maintenance is very simple. The liquid level sensor has no moving mechanical parts. Routine maintenance only requires periodic cleaning of the probe surface to prevent dust or scale buildup from affecting sound wave reflection. The device has a self-test function, a long service life, and can operate stably for extended periods.

Slight fluctuations or disturbances will not significantly affect the measurement results. The level sensor has a built-in signal processing algorithm that automatically filters out interference echoes, ensuring stable readings. However, if the liquid level fluctuates violently or there is strong airflow, a model with echo suppression should be selected, or the installation position and angle should be adjusted appropriately.
