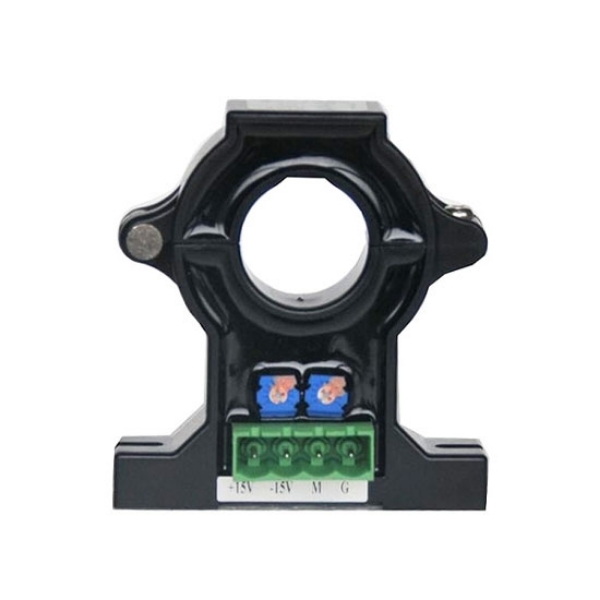

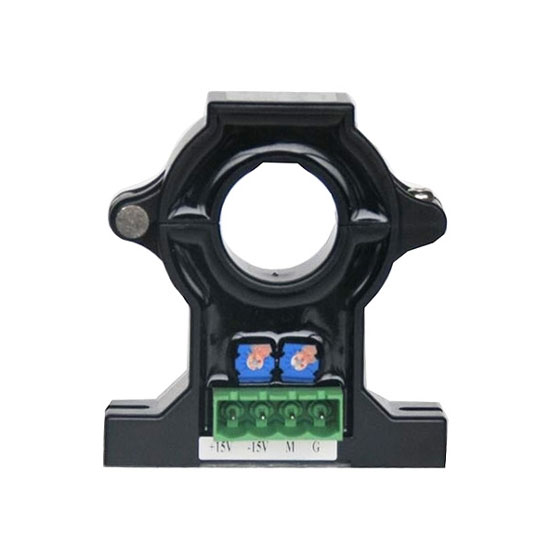

Hall Effect Current Sensor AC/DC 0-1500A

Hall effect current sensor is an open-loop sensor designed for accurate and isolated measurement of AC and DC currents across a wide range from 0 to 1500A. Featuring a fast response time (≤5μs), high bandwidth (0~20kHz), and excellent linearity (≤0.2%FS), it delivers stable, low-distortion signals ideal for dynamic load environments. With a ±15VDC power supply and standard output options (0-5V AC/DC or ±5VDC), this SUCH current sensor integrates easily with PLCs, DSPs, and AD converters. Available with hole diameters of 20mm, 40mm, or 55mm, it suits diverse applications including solar systems, inverters, UPS, battery monitoring, VFDs, electroplating, and servo drives. Reliable in harsh conditions, it offers 1.0%FS accuracy and strong resistance to interference and overload.

Feature

• Wide Measurement Range, High Accuracy: AC/DC 0-1500A current detection, suitable for both light and heavy loads, ensures precise and reliable performance.
• Fast Response, Real-Time Feedback: Quick signal conversion enables accurate current control under dynamic load changes.
• Hall Effect Output, Easy Integration: Converts current into standard signals, compatible with AD converters, DSPs, PLCs, and monitoring instruments.
• Stable Signal, Good Linearity: Delivers linear, low-distortion output for consistent and accurate data transmission.
• Strong Interference Resistance, Overload Protection: Performs reliably in harsh electrical environments with robust anti-interference design.
• Versatile Compatibility, Open Loop Design: AC/DC current sensor supports isolated AC signal conversion, ideal for complex and variable current environments.
• Broad Applications, Industrial Use: Perfect for solar systems, batteries, UPS, inverters, VFDs, welding, plating, and servo drives.

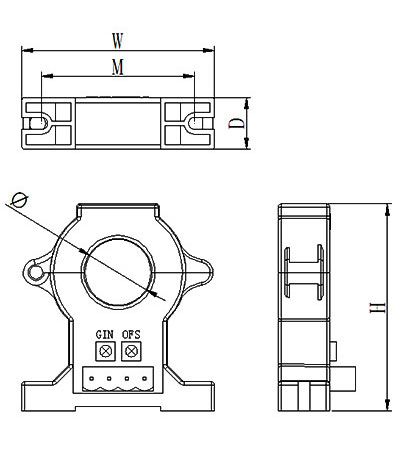

Dimension (Unit:mm)

Wiring Diagram

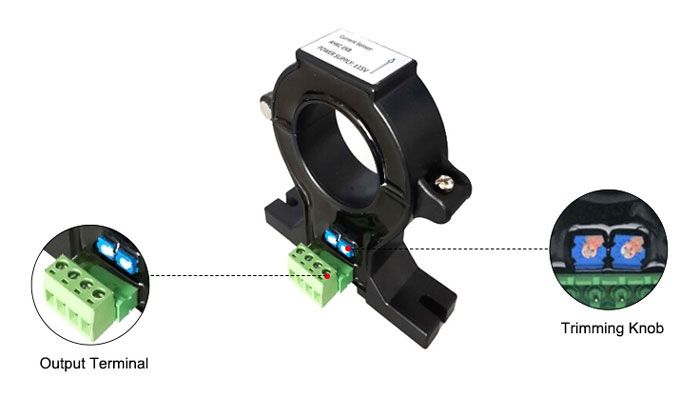

Detail
