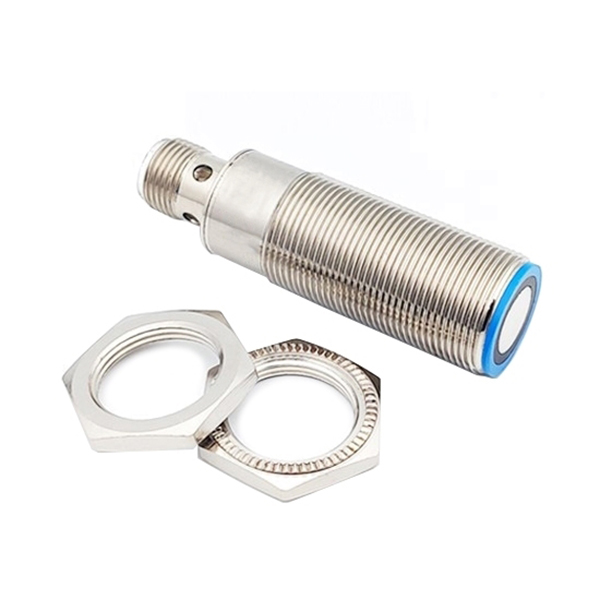

M18 Ultrasonic Proximity Switch, Analog Output, 0-10V/4-20mA

SKU: SUCH-UPS-18GMUI

$526.47

● M18 mounting threaded sleeve ● Detection distance: 30mm-1000mm ● Analog voltage output: 0-10V; Analog current output: 4-20mA ● Standard operating voltage: DC 10-30V

Measuring Range *
Signal Output *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Analog output ultrasonic proximity sensor with 30-300mm, 50–500mm, or 60–1000mm optional detection distance for selection. It supports 0–10V, 4–20mA or 0–10V + 4–20mA signal output modes and 10–30V DC operating voltage, suitable for automation applications that continuously monitor the position or distance of objects.

Feature

SUCH ultrasonic proximity sensor uses an M18 mounting thread for secure and convenient installation. Detection distances range from 30mm to 1000mm, adapting to various ranging requirements.
The ultrasonic proximity switch supports 0-10V/4-20mA/0-10V + 4-20mA output, allowing direct connection to industrial controllers for real-time data transmission.
The operating voltage is DC 10-30V, compatible with common industrial power supplies. Built-in temperature compensation effectively mitigates the impact of ambient temperature variations on detection accuracy.

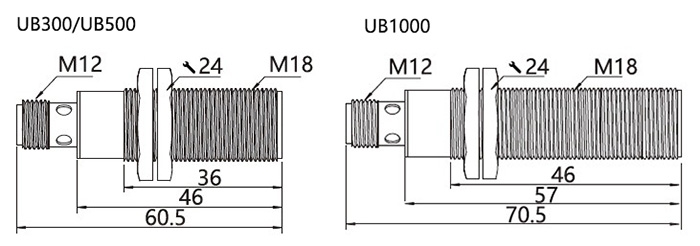

Dimension (Unit: mm)

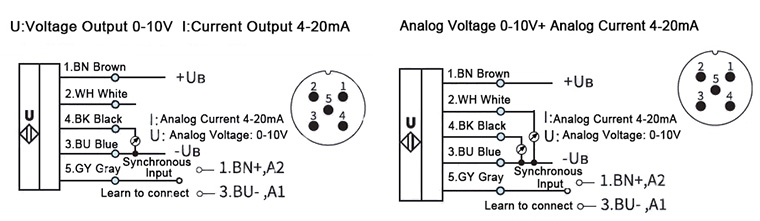

Wiring Diagram

Specs

Detection range	30-300mm	50-500mm	60-1000mm
Signal output	0-10V/4-20mA/0-10V + 4-20mA
Blind zone	0-30mm	0-50mm	0-60mm
Resolution	0.1mm	0.15mm	0.17mm
Repeatability	0.15% offull-scale value
Absolute accuracy	±1% (built in temperature drift compensation)
Switching hysteresis	2mm
Switching frequency	45Hz	31Hz	19Hz
Response time	22ms	32ms	52ms
Power-Up Timer	<500ms
Operating voltage	10-30V DC, Reverse Polarity Protection
LED red ligh	No target is always bright, and no target flashes when studying
LED green light	Detected that the target is always bright, and the target flashes when studying
Overpower protection	200mA, redlight and green light flashing at the same time
Load impedance	I/<300 Ohm, U/>1k Ohm
No-load current	≤30mA
Material	Plastic, Nickel Plated, Brass, Urethane Foam
Connection type	5pin M12 connector
Protection class	IP67
Environmental temperature	-25℃~+70℃ (248~343K)
Storage temperature	-40℃~+85℃ (233~358K)
Weight	32g		38g

Application

Automotive Assistance

Smart Home

Smart Warehousin

FAQ

Q1: What is an ultrasonic proximity sensor with an analog output used for? ❯

An ultrasonic proximity sensor with 0–10V or 4–20mA analog output is used for non-contact distance measurement and object detection. It emits ultrasonic waves and measures the echo time to determine the distance of an object. The analog output provides a continuous, proportional signal that can be used for level monitoring, positioning, presence detection, and automation control in industrial environments.

Q2: What are the advantages of choosing a 0–10V or 4–20mA analog output? ❯

Both outputs offer smooth and precise distance feedback. 0–10V output is ideal for short cable runs and systems requiring fast voltage-based signal processing. 4–20mA output is preferred for long-distance wiring because it is immune to electrical noise and signal loss. These options allow the sensor to integrate easily with PLCs, controllers, and monitoring systems.

Q3: In what environments can this ultrasonic proximity sensor be used? ❯

Ultrasonic sensors are suitable for detecting objects regardless of color, transparency, or surface texture, making them ideal for applications where optical sensors fail. They perform reliably in environments with dust, humidity, or low visibility, and are commonly used in liquid level measurement, material handling, packaging equipment, and industrial automation.
