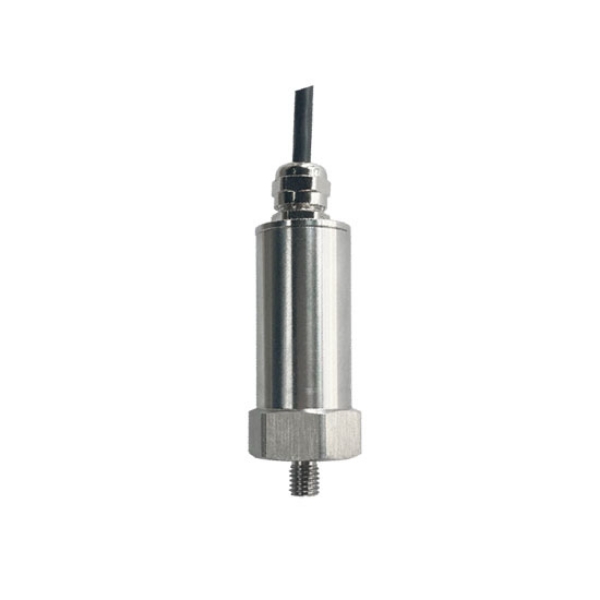

    Accelerometer Vibration Sensor, 0-20mm/s, 0-50mm/s, 10g

    SKU: SUCH-AS-50R
    $258.77
    ● Measuring range: 0-20mm/s, 0-50mm/s, 10g ● Signal output: 4-20mA, RS485 ● Installation: Thread (default) ● Ambient temperature: -40°C~85°C
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Multi-range accelerometer vibration sensor, supporting 0~20 mm/s, 0~50 mm/s, and 10g acceleration measurement ranges. The output is available in 4-20mA/RS485 (select the corresponding sensor model based on the output method), and it supports multi-parameter measurement of temperature, acceleration, and displacement, with a protection rating of up to IP67. It is suitable for vibration monitoring of industrial motors or pump bodies, with threaded installation as the default installation method.

    Feature

    • The SUCH-SAMZ50R4D utilizes a high-performance MEMS chip to measure single-axis vibration displacement and other parameters, offering high measurement accuracy and strong interference resistance. It supports threaded mounting and magnetic mounting options.
    • SUCH-SAMA50A-20MM and SUCH-SAMA10A are suitable for vibration measurement on machines operating at speeds ranging from 600 to 60,000 RPM.
    • The three accelerometer vibration sensors are suitable for a wide range of operating environments and provide long-term stable and reliable performance.

    Dimension (unit: mm)

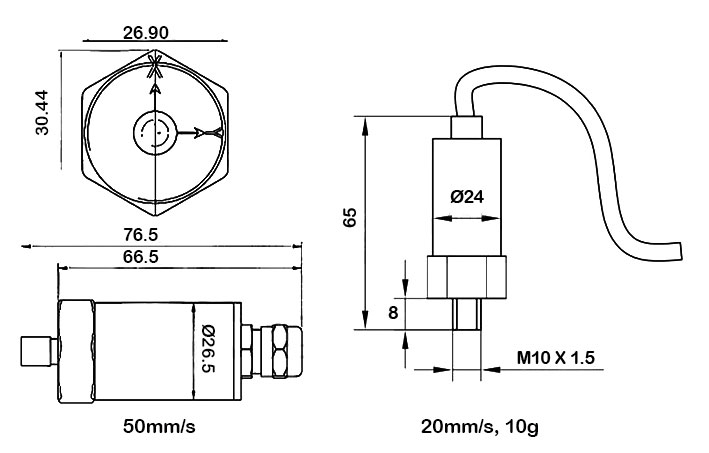

    Accelerometer vibration sensor dimension

    Wiring Diagram

    4-20mA output

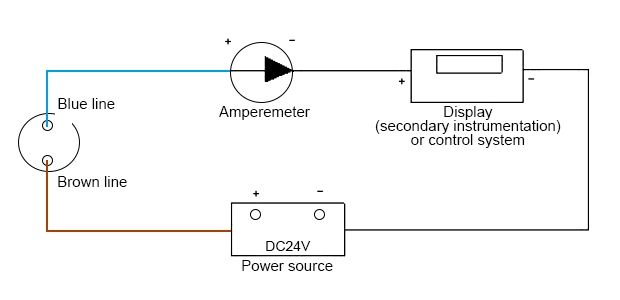

    Accelerometer vibration sensor wiring diagram

    Installation location: Install the sensor at the vibration measurement point. Secure the sensor base to the measured housing, then tighten the accelerometer vibration sensor in place.

    Wiring instructions: Connect the brown wire to the positive terminal of the DC 24V power supply, and the blue wire to the negative terminal of the DC 24V power supply. The brown and blue wires also serve as the 4–20 mA output leads. The connecting wires must have good insulation properties and should use a two-core shielded cable.


    RS485 output

    Input/Output Line Color Description
    Power Supply Brown Power positive (10~30V DC)
    Black Power supply negative
    Communication Gray 485-A
    Blue 485-B

    The RS485 output model supports threaded installation, and there is also a magnetic mounting option. If there are special requirements for detecting X and Y-axis data, pay close attention to the printed markings on the bottom of the sensor. If only single-axis data is to be monitored, it is recommended to use the Z-axis, i.e., the direction perpendicular to the bottom of the sensor after installation.

    The power supply input supports a wide voltage range of 10–30V. When connecting the 485 signal lines, ensure that the A and B lines are not reversed. Addresses between multiple devices on the bus must not conflict.

    Specs
    Model SUCH-SAMA50A-20MM SUCH-SAMA10A
    Frequency Response 10~1000 Hz 10~1000 Hz
    Measuring Range 0~20mm/s 10g
    Signal Output 4-20mA
    Output Impedance ≤500Ω
    Working Voltage DC24V±10%
    Connection Method 2-wire
    Ambient Temperature -40°C~85°C
    Relative Humidity ≤90%
    Overall Dimension φ24*56mm
    Installation M10*1.5 threaded mounting
    Weight Approx. 100g



    Model SUCH-SAMZ50R4D
    Vibration Velocity Measuring Range 0-50mm/s
    Vibration Measuring Direction Single axis
    Signal Output RS485
    Power Consumption 0.3W (DC24V)
    Frequency Range 10-1600Hz
    Power Supply DC10-30V
    Vibration Speed Display Resolution 0.1mm/s
    Vibration Displacement Measurement Range 0-5000μm
    Transmitter Circuit Operating Temperature -40°C~+80°C, 0%RH~80%RH
    Transmitter Contact Temperature Range -40°C~+150°C (default 85°C)
    Protection Class IP67
    Vibration Velocity Measurement Accuracy <1% (@160Hz, 10mm/s)
    Vibration Displacement Measurement Accuracy <1% (@40Hz, 400μm)
    Vibration Displacement Display Resolution 0.1μm
    Vibration Acceleration Measuring Range 16g (default g takes 9.8m/s2)
    Vibration Acceleration Measuring Accuracy <1% (@160Hz, 10m/s2)
    Acceleration Display Resolution 0.1m/s2
    Surface Temperature Measurement Range -40°C~150°C (default 80°C)
    Temperature Display Resolution 0.1°C
    Measurement Period Real time
    Default Line Length 1.5m
    Application
    Accelerometer vibration sensor for reducer fans

    Reducer Fans

    Accelerometer vibration sensor for generators

    Generators

    Accelerometer vibration sensor for air compressors

    Air Compressors

    FAQ

    Accelerometer vibration sensors are widely used in mechanical structure vibration testing, rotating equipment condition monitoring, modal analysis, impact testing, and product reliability assessment. Whether it is local components such as engines, bearings, and gearboxes, or large structures such as bridges, aircraft, and buildings, as long as dynamic acceleration or vibration response needs to be measured, accelerometer sensors can be used in conjunction with analyzers to achieve high-precision data acquisition and frequency domain analysis.

    Several methods can be used to determine if the sensor is functioning properly:

    • First, check if the connection cables are secure and if the interfaces are making good contact.
    • Second, observe the output signal for any significant changes or fluctuations while the equipment is running. You can also perform a comparison test using a known vibration source.
    • If the accelerometer shows no response, excessive noise, or abnormal signal frequencies, it may indicate component damage or cable breakage. It is recommended to replace the sensor or inspect the signal acquisition system.

    The frequency range determines the upper and lower limits of vibration frequencies that the sensor can effectively capture. If the measured vibration exceeds the sensor's frequency range, the data may be distorted or ignored. For example, high-frequency mechanical faults such as bearing defects require high-frequency response, while structural vibrations in low-speed equipment require a lower frequency limit. When selecting a sensor, ensure that the frequency range covers all relevant vibration characteristics to obtain accurate and reliable data.
