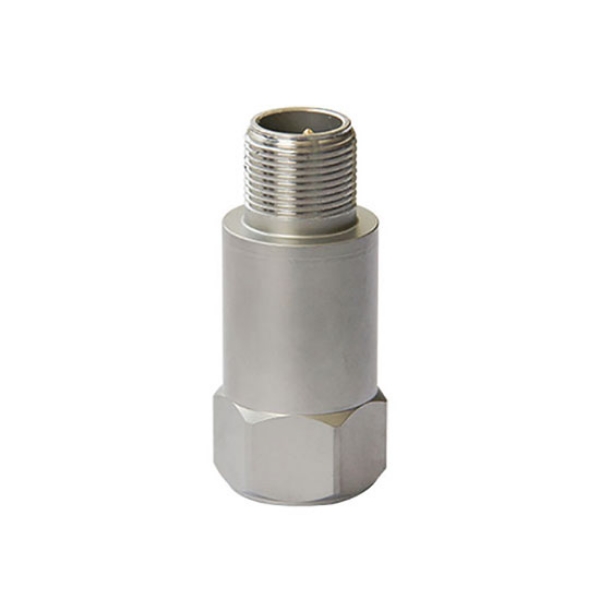

Piezo Accelerometer Sensor, 0-200g, 0-500g, 0-1000g

SKU: SUCH-AS-KT06
$467.33
● Measuring range: 0-200g, 0-500g, 0-1000g (optional) ● Output signal: 4-20mA/0-5V (optional) ● Sensitivity: 16mA/range, 0~5V/range ● Mounting: M5/M6/M8 thread, magnetic holder
*
*
*
🚚 Free shipping
🕒 Delivery date: 6-12 days
🔁 30-day Returns
Overview

The piezoelectric accelerometer measurement range supports 0-200g, 0-500g, 0-1000g optional, 4-20mA or 0-5V optional output, suitable for different industrial vibration intensity detection needs. The sensitivity is up to 16mA. Accelerometer sensitivity up to 16mA/range or about 5V/range, wide frequency response range (1-4000Hz), output polarity is positive, clear and reliable signal. Support M5, M6, M8 thread and magnetic adsorption installation.

Feature

  • The capacitive accelerometer sensor has weak signal recognition capability with nonlinearity less than 0.5%, making it suitable for harsh monitoring environments.
  • The accelerometer sensor features fast response performance with a frequency response of 800 Hz, enabling detection of subtle changes.
  • Constructed from stainless steel, it has a robust structure and can withstand impacts up to 5000g, making it suitable for harsh industrial environments.
  • It is equipped with four φ2.8 mounting holes and a standard three-core shielded cable, ensuring easy installation and clear wiring.

Dimension (unit: mm)

Piezo accelerometer sensor 200g~1000g dimension

Piezo Accelerometer Sensor Curve

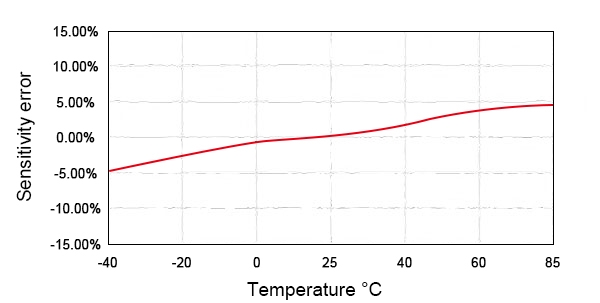

Piezo accelerometer sensor temp curve

Wiring Diagram

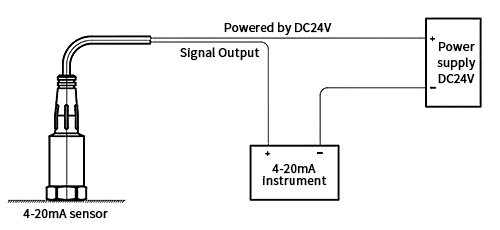

Piezo accelerometer sensor 4-20mA wiring diagram

4-20mA

Piezo accelerometer sensor 0-5V wiring diagram

0-5V/±5V

Specs
Measuring Range 0-200g, 0-500g, 0-1000g (optional)
Output Range 4-20mA/0-5V (optional)
Sensitivity 16mA/range,~5V/range
Frequency Range 1~4000Hz
Polarity Forward
Operating Temperature -20°C~80°C
Protection Class IP67
Supply Voltage 18~36VDC
Bottom Insulation Impedance >108Ω
Output Impedance <100Ω
Case Material 304 stainless steel
Weight ~82g
Mounting M5 thread, M6 thread, M8 thread, magnetic holder (optional)
Mounting Torque 25N.M
Piezo Material PZT-5
Dimension φ25*54mm
Output Method C5015*1 two cores
Wiring Method A: Power, B: Output
Structure Plane shear
Sensor Certificate Calibration parameters
Mounting Screws 1pc
Two-core Wire 4 Meters*1
Application
Piezo accelerometer sensor of oil industry

Oil Industry

Piezo accelerometer sensor of wind power industry

Wind Power Industry

Piezo accelerometer sensor of machine tool vibration monitor

Machine Tool Vibration Monitor

FAQ

The output format of piezo accelerometers is generally analog, with common types including charge output, voltage output (IEPE), and current-type (e.g., 4-20mA) output. Charge output sensors require a charge amplifier for use and are suitable for high-temperature environments. IEPE sensors have built-in signal conditioning circuits, enabling direct connection to measurement instruments and are suitable for most industrial sites. Current output sensors are suitable for long-distance transmission and applications with high anti-interference requirements.

Piezo accelerometer sensors are suitable for various industrial and scientific research scenarios involving vibration monitoring and analysis, including:

  1. Industrial equipment fault diagnosis: monitoring the operational status of mechanical equipment such as fans, motors, pumps, and gearboxes.
  2. Structural health monitoring: dynamic stress detection of engineering structures such as bridges, buildings, and railways.
  3. Automotive and aerospace testing: Used in vehicle crash tests, suspension system evaluations, rocket vibration studies, etc.
  4. Precision manufacturing and machine tool monitoring: Analyzing the vibration status of tools and spindles during high-speed machining.
  5. Scientific research experiments: Conducting modal analysis, seismic response testing, mechanical impact measurement, etc.

To determine if a piezo accelerometer is malfunctioning, the following methods are commonly used:

  • Reference signal test: Apply a known excitation and observe if the output aligns with expectations.
  • Open-circuit/short-circuit detection: Measure the output impedance or open-circuit voltage to determine if the circuit is intact.
  • Reduced signal-to-noise ratio: If the output signal weakens or is accompanied by significant noise, it indicates the sensor may be aging or damaged.
  • Frequency response shift: Use a calibration system to detect if the frequency response curve has drifted or attenuated. It is recommended that users perform regular functional tests and conduct maintenance inspections after high-frequency or high-impact applications to extend sensor lifespan.
