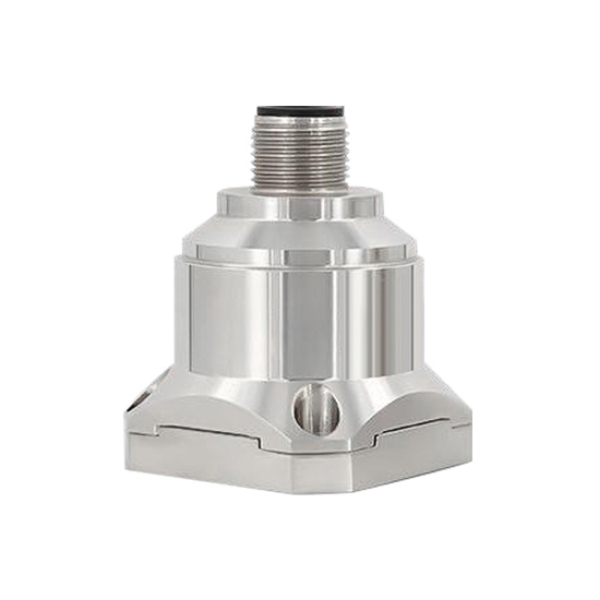

3 Axis MEMS Accelerometer Sensor, 0~5V Output

0 review(s) | Add your review

SKU: SUCH-AS-390

$1,289.60

● Output voltage: 0~5V ● Measuring rang: ±2g, ±4g, ±8g, ±10g, ±20g, ±40g ● Measuring axial: X, Y, Z axis ● Deviation calibration: <1mg

Measuring Range *
Installation *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Three-axis MEMS accelerometer sensor with dynamic response performance is now available for sale, offering six range options from ±2g to ±40g. By simultaneously measuring acceleration along the X, Y, and Z axes, it can be widely applied in industrial vibration detection, structural monitoring, and other scenarios. This accelerometer sensor provides a 0–5V analog voltage signal output, making it easy to integrate into various data acquisition systems. It supports magnetic base and L-shaped bracket mounting options for convenient deployment.

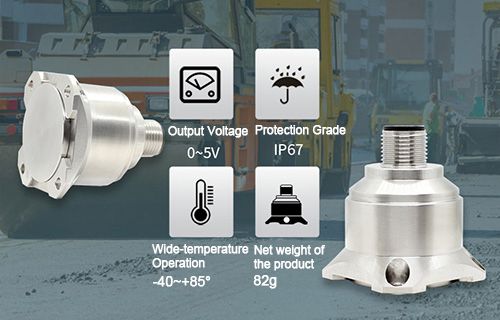

Feature

MEMS accelerometer sensor features

MEMS accelerometer sensors are low power, calibrated, robust, and provide stable output.
L-shaped adapter plate/magnetic base optional.
New electronics provide solid-state power for reset and comprehensive protection against overvoltage.
Excellent bias stability and environmental performance (shock, vibration, and temperature).

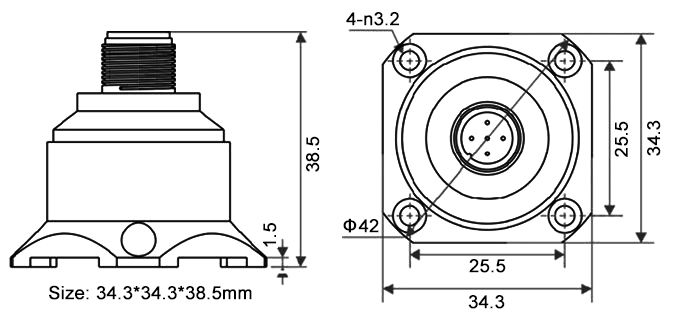

Dimension (Unit:mm)

MEMS accelerometer sensor dimension

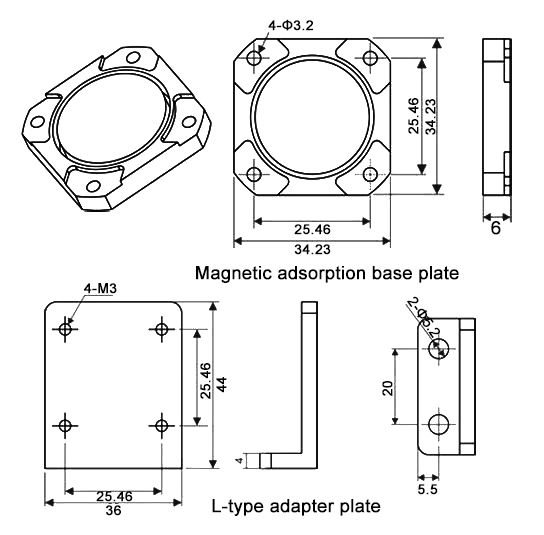

Adsorption Base Plate Dimension

MEMS accelerometer sensor adsorption base plate dimension

Accelerometer Sensor Curve

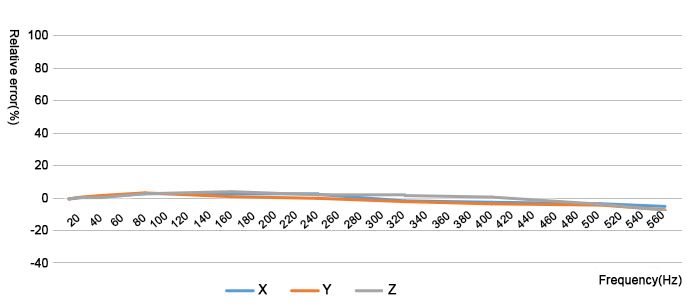

Sensitivity amplitude frequency response characteristic curve voltage current output

sensitivity amplitude frequency response characteristic curve

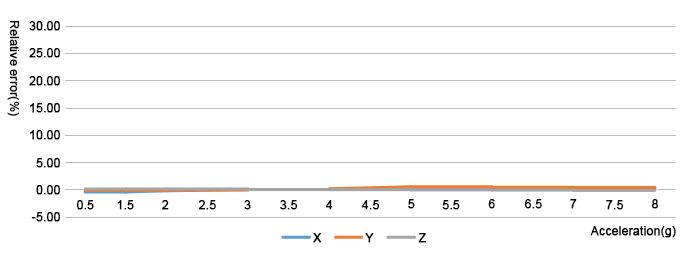

Sensitivity linearity chart voltage current output

sensitivity linearity chart

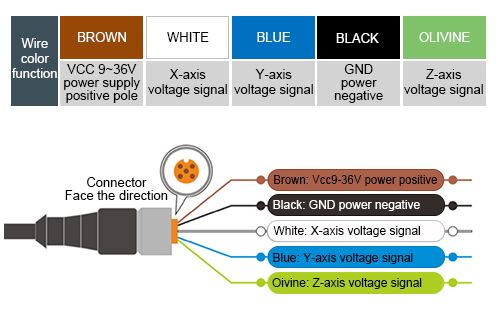

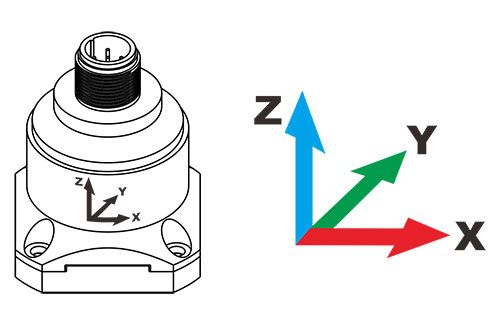

3-axis Direction/ Wiring Diagram

Specs

Measuring Rang	±2g, ±4g, ±8g, ±10g, ±20g, ±40g (optional)
Deviation Calibration	<1mg
Measuring Axial	X,Y,Z axis
Up/Off Power Repeatability	<2mg (max)
Resolution/Threshold (@1Hz)	<1mg (max)
Frequency Response	500Hz
Bandwidth (3dB)	1000Hz
Output Voltage	0~5V
Power Supply Input (Vdd-Vss)	9~36 VDC
Power Consumption	<60mA @ 12VDC
Interface Type	Industrial standard M12 connector
Protection Rating	IP67
Weight	Product net weight: 82g
	Magnetic base: 48g
	L-shaped mounting plate: 20g
Dimensions	Product dimensions: 34.334.338.5 mm
	Magnetic base: 34.2334.236 mm
	L-shaped mounting plate: 364415 mm

Other Specs

Rang	Sensitivity	Temp coefficient error	Nonlinearity (max)	Cross-axis sensitivity
±2g	1250mV/g	0.01%/°C	<0.5% FS	1%
±4g	625mV/g	0.01%/°C	<0.5% FS	1%
±8g	312.5mV/g	0.01%/°C	<0.8% FS	1%
±10g	250mV/g	0.05%/°C	<1% FS	2%
±20g	125mV/g	0.05%/°C	<1% FS	2%
±40g	62.5mV/g	0.05%/°C	<1% FS	2%

Rang	Resonant frequency	Noise density	0g output 2.5V	Vibration sensitivity ratio
±2g	2.4kHz	21μg/√Hz	<0.001mA	1%
±4g	2.4kHz	21μg/√Hz	<0.001mA	1%
±8g	2.4kHz	21μg/√Hz	<0.001mA	2%
±10g	5.5kHz	86.6μg/√Hz	<0.008mA	5%
±20g	5.5kHz	86.6μg/√Hz	<0.008mA	5%
±40g	5.5kHz	86.6μg/√Hz	<0.008mA	5%

Application

Bridges

Automobiles

Medical Equipment

FAQ

Q1: What application scenarios is this accelerometer sensor suitable for? ❯

This 3-axis MEMS accelerometer sensor is widely used in structural health monitoring, industrial equipment vibration detection, vehicle dynamic analysis, robot posture control, and other fields.

Q2: How does this MEMS accelerometer sensor read data and connect wires? ❯

The accelerometer sensor provides a standard 0–5V analog voltage output, corresponding to the acceleration signals of the X, Y, and Z axes, respectively. Users can read the signals from each axis in real time through the analog input channel of the data acquisition device. The power supply input range is 9–36 V DC, and the standard M12 industrial connector facilitates quick wiring. Simply connect the power supply, ground wire, and output signal line to begin measurement, compatible with most industrial control systems.

Q3: What is the interference resistance performance of the MEMS accelerometer sensor? ❯

This 3-axis MEMS accelerometer sensor features excellent electromagnetic compatibility and low-noise design, with a noise density as low as 21 μg/√Hz, making it suitable for applications requiring high signal accuracy. Additionally, it has a bandwidth of up to 1000 Hz, supports dynamic response, and includes built-in temperature drift compensation, ensuring stable and reliable data output even in complex operating conditions.
