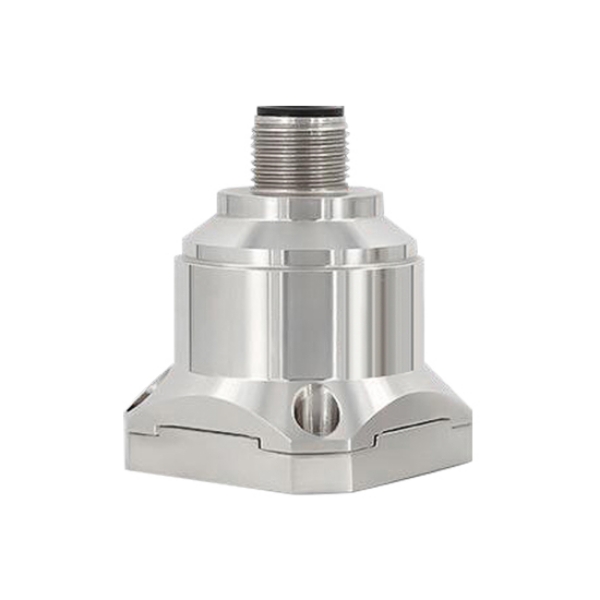

3 Axis Accelerometer Sensor for Vibration, 4-20mA Output

0 review(s) | Add your review

SKU: SUCH-AS-398

$1,289.60

● Output current: 4–20mA ● Measuring rang: ±2g, ±4g, ±8g, ±10g, ±20g, ±40g ● Measuring axial: X, Y, Z axis ● Bandwidth (3dB): 1000Hz

Measuring Range *
Installation *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

High-performance accelerometer sensor for vibration supports 4–20 mA current output, offering strong compatibility and enabling real-time monitoring of vibration changes in the X, Y, and Z directions. It supports measurement of ±2g, ±4g, ±8g, ±10g, ±20g, and ±40g (optional). The accelerometer features a frequency response of up to 500 Hz and a 3dB bandwidth of up to 1000 Hz. It is equipped with a wide voltage input range of 9–36 V and an industrial-standard M12 interface, making installation convenient and suitable for precise detection in high-dynamic industrial environments.

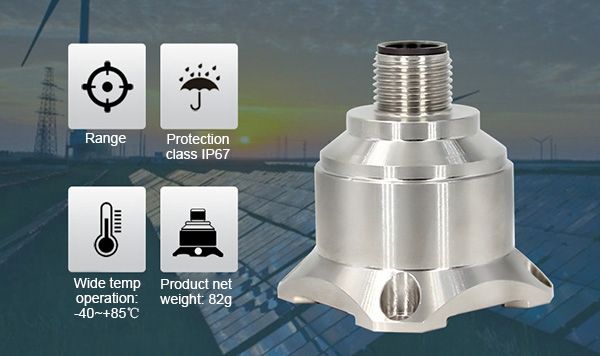

Feature

3 axis accelerometer sensor features

Three-axis accelerometer with current output, suitable for applications such as vibration testing and impact testing.
Features analog current output and supports daisy-chaining multiple sensors for long-distance measurement, facilitating multi-point measurement and data analysis.
Characterized by low power consumption, calibration completion, robust construction, and stable output.
The new electronic configuration provides a solid-state power supply for reset and includes overvoltage protection functionality.

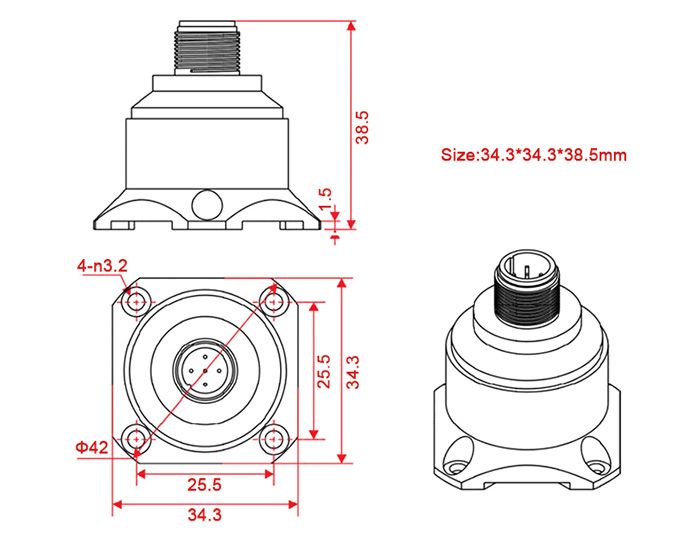

Dimension (Unit:mm)

3 axis accelerometer sensor dimension

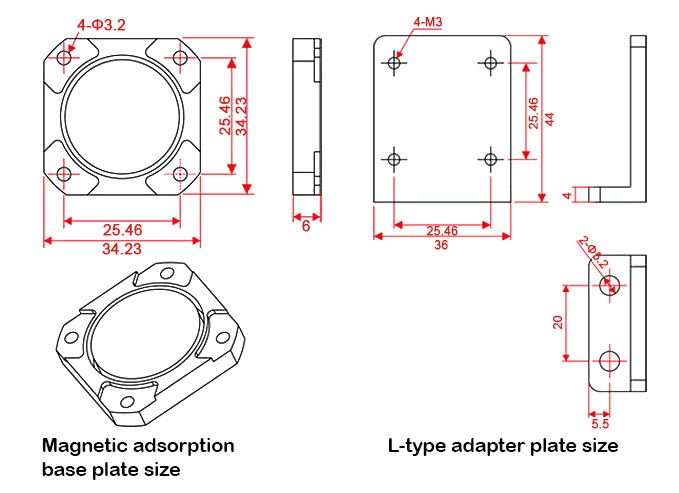

Adsorption Base Plate Dimension

Adsorption base plate dimension

Accelerometer Sensor Curve

Sensitivity amplitude frequency response characteristic curve voltage current output

sensitivity amplitude frequency response characteristic curve

Sensitivity linearity chart voltage current output

sensitivity linearity chart

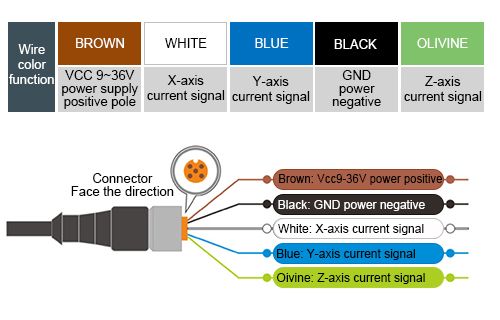

3-axis Direction/ Wiring Diagram

Specs

Measuring Rang	±2g, ±4g, ±8g, ±10g, ±20g, ±40g (optional)
Deviation Calibration	<1mg
Measuring Axial	X,Y,Z axis
Up/Off Power Repeatability	<2mg (max)
Resolution/Threshold (@1Hz)	<1mg (max)
Frequency Response	500Hz
Bandwidth (3dB)	1000Hz
Output Current	4–20 mA
Input Voltage (Vdd_Vss)	9–36 VDC
Current Consumption	<60 mA @ 12 VDC
Interface Type	Industrial standard M12 connector
Protection Rating	IP67
Weight	Product net weight: 82g
	Magnetic base: 48g
	L-shaped mounting plate: 20g
Dimensions	Product dimensions: 34.334.338.5 mm
	Magnetic base: 34.2334.236 mm
	L-shaped mounting plate: 364415 mm

Other Specs

Rang	Sensitivity	Deviation temp coefficient	Nonlinearity (max)	Cross-axis sensitivity
±2g	4mA/g	0.01%/°C	<0.5% FS	1%
±4g	2mA/g	0.01%/°C	<0.5% FS	1%
±8g	1mA/g	0.01%/°C	<0.8% FS	1%
±10g	0.8mA/g	0.05%/°C	<1% FS	2%
±20g	0.4mA/g	0.05%/°C	<1% FS	2%
±40g	0.2mA/g	0.05%/°C	<1% FS	2%

Rang	Resonant frequency	Noise density	0g output 12mA	Vibration sensitivity ratio
±2g	2.4kHz	21μg/√Hz	<0.005mA	1%
±4g	2.4kHz	21μg/√Hz	<0.005mA	1%
±8g	2.4kHz	21μg/√Hz	<0.005mA	2%
±10g	5.5kHz	86.6μg/√Hz	<0.003mA	5%
±20g	5.5kHz	86.6μg/√Hz	<0.003mA	5%
±40g	5.5kHz	86.6μg/√Hz	<0.003mA	5%

Application

Bridges

Automobiles

Medical Equipment

FAQ

Q1: What is the purpose of the 4-20mA output in this accelerometer sensor? ❯

The 4-20mA current output is an industry-standard signal format suitable for long-distance, interference-resistant transmission. It can be easily integrated with programmable logic controllers (PLCs), data loggers, and industrial monitoring systems to ensure accurate and stable vibration measurements in harsh environments.

Q2: Can the 3-axis accelerometer sensor be used for real-time vibration monitoring of heavy machinery? ❯

Yes, this 3-axis accelerometer sensor is specifically designed for real-time vibration monitoring in industrial environments. Its wide dynamic range and robust 4-20mA output make it suitable for applications such as predictive maintenance, motor health diagnostics, and structural monitoring.

Q3: Does the 3-axis accelerometer sensor have waterproof function? ❯

The accelerometer sensor features an IP67-rated housing, effectively resisting dust, water, and mechanical shocks. This makes it highly suitable for both indoor and outdoor installations, including use in humid or dusty environments such as factories or construction sites.
