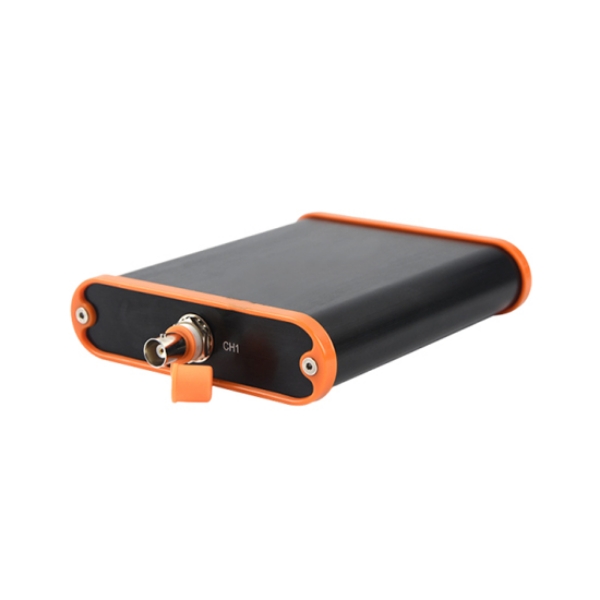

Dynamic Signal Analyzer for IEPE/PE Accelerometer Sensor, 1 Channel

0 review(s) | Add your review

SKU: SUCH-AS-SA1801B

$2,342.89

● Number of channels: 1 channel ● Input type: Voltage/IEPE/PE ● Max sampling rate: 128kHz ● A/D resolution: 24-bit

Matched Accelerometer Sensor

No
Yes [+$532.65]

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The portable dynamic signal analyzer supports 1-channel input, featuring 24-bit A/D resolution and a maximum sampling rate of 128 kHz, enabling precise acquisition of high-frequency micro-vibration signals. Data is transmitted via a LAN interface, supporting voltage, IEPE, and PE input types. It is compatible with the SUCH-AS-C0015 accelerometer sensor and includes a built-in 4mA/24V IEPE excitation source. The signal input range is ±10V peak, meeting the requirements for industrial vibration testing.

Feature

The dynamic signal analyzer is equipped with a built-in 4mA/24V constant current circuit, enabling direct connection to devices such as LEPE-type accelerometers, velocity sensors, force sensors, and microphones for signal testing and analysis.
Voltage signal measurement is compatible with thermocouples, eddy current sensors, magnetic flux sensors, strain sensors, and various transmitters (signal conditioners), enabling testing and analysis of multiple physical quantities.
A 24-bit high-precision analog-to-digital converter with 1-channel parallel synchronous sampling, achieving a maximum sampling rate of 128 kHz per channel, with low noise and high precision.
Portable dynamic signal analyzer powered via USB interface, eliminating the need for an external power source. Equipped with user-friendly and comprehensive data acquisition and analysis software, allowing users to configure parameters such as input type, range, sensor sensitivity, and sampling rate for the dynamic signal analyzer.
Supports real-time transmission, display, data analysis, and processing, and utilizes computer hard drives for long-term continuous real-time recording of multi-channel signals.

Dimension (unit: mm)

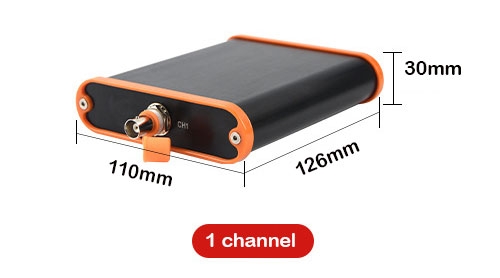

Dynamic signal analyzer dimension

Working Principle

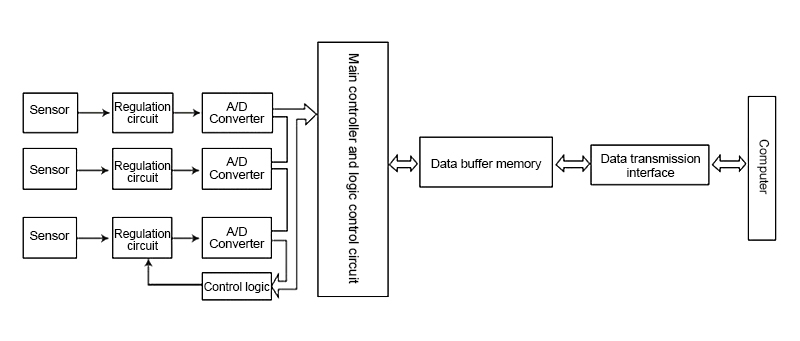

Dynamic signal analyzer working principle

System Structure

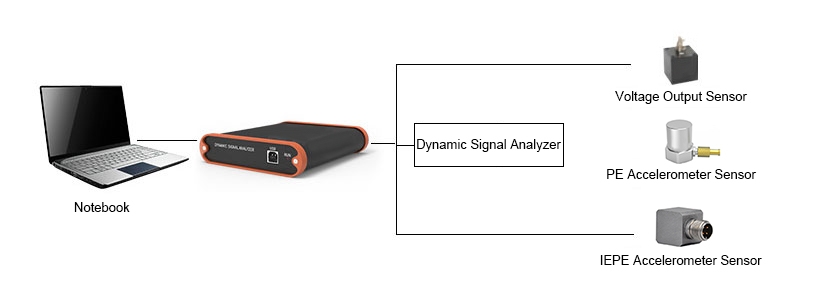

Dynamic signal analyzer system structure

Detail

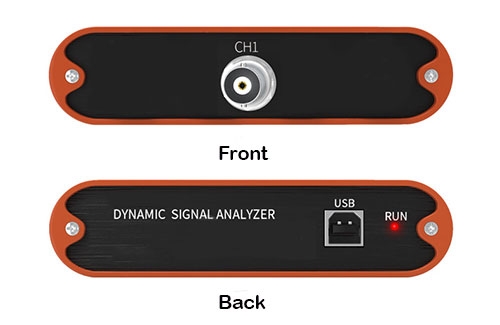

Interface Name	Description
USB Interface	USB port (used for communication between the instrument and the computer)
Power Supply	Power supplied via USB connection to the computer
BNC Socket	1 analog signal input BNC connectors

Specs

Model	SUCH-SA1801B
Max Sampling Rate	128kHz
Number of Channels	1 channel
A/D Resolution	24-bit
Input Type	Voltage/IEPE/PE
Matched Accelerometer Sensor	SUCH-AS-C0015
IEPE Excitation Source	4mA / 24V
Signal Input Range	±10V peak
Signal Input Bandwidth (Voltage)	DC ~ 50kHz
Signal Input Bandwidth (IEPE)	0.3Hz ~ 50kHz
Filter	Same as above
Built-in Gain	×1,×10,×100
Accuracy	Less than 0.5%
Communication Interface	LAN
Dimensions	12611030mm
Weight	300g
Power Supply	DC 9V, with AC 220V power adapter

Application

Engine Block

Aircraft Wing Structure

Water Pump Motor

FAQ

Q1: Does the dynamic signal analyzer support all types of accelerometers? ❯

This device supports IEPE (integrated electronic piezoelectric) and PE (charge output) accelerometers. For IEPE accelerometer sensors, the instrument has a built-in constant current excitation source (4 mA/24 V) for direct power supply. For PE accelerometer sensors, an external charge amplifier is required to achieve signal matching. Users should confirm the sensor output type before connection to ensure compatibility and measurement accuracy.

Q2: Is this dynamic signal analyzer suitable for portable field testing? ❯

Yes. This dynamic signal analyzer is compact in design (126*110*30mm) and weighs only 300g, making it easy to carry. By connecting to a laptop via USB or LAN interface, data acquisition and analysis can be performed, making it suitable for field applications such as factory equipment fault diagnosis and engineering structure vibration testing, thereby enhancing testing flexibility and response speed.

Q3: Can the collected data be exported for secondary analysis? ❯

Yes. The vibration data collected by the instrument can be exported in multiple formats (e.g., CSV, MAT, TXT) for secondary analysis and processing in software such as MATLAB, LabVIEW, or other professional applications. Additionally, the device comes with PC software that supports functions such as time-domain waveform viewing, spectrum analysis, and filtering, enabling users to conduct in-depth data interpretation and report generation.
